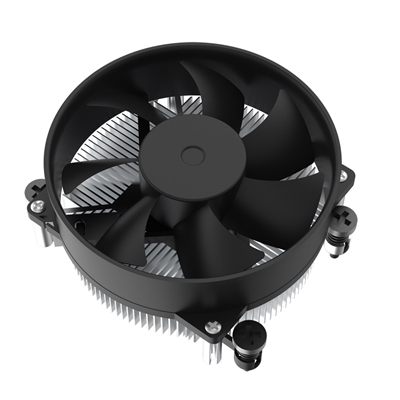

CiT's low profile CPU cooler is designed for space limited applications that utilises AMD AM4 & AM5 platforms. Made using aluminium fins for excellent thermal conduction. In addition, the CPU cooler is equipped with a custom PWM 95mm silent fan that is staggered against the aluminium fins for better airflow focus and enhanced heat dissipation. Measuring only 45mm tall, it's a leading choice for slim cases utilising AMD AM4 & AM5 processors. Get maximum cooling with minimal footprint.

Specifications

CPU
TDP 85W
CPU Block Material Aluminium
CPU Block Width (mm) 90mm
CPU Block Height (mm) 20mm

Fan

Fan Dimensions 95 x 95 x 25mm
Rated Speed (PWM) 0-2400 ± 10% RPM
Air Flow 40.79CFM
Noise 29.5 dBA (Max.)
Bearing Type Hydraulic Bearing
Connector 4pin PWM
Starting Voltage 5V
Rated & Operating Voltage 12V
Rated Current 121mA
Power Input 1.5W
Fan Pressure 2.44mm H2O
Static Pressure 3.01mm H2O
M.T.B.F 30,000 Hours

Compatibility
AMD: AM4 & AM5

General Specifications

Manufacturer Part Number: CIT-CPU-AMD
EAN Number: 5055492416278
Has Mains Plug: No
Colour: Black / Silver
What's In The Box: CPU Cooler
Fixing Screws
Thermal Paste
Unit (Product) Dimensions (mm): 97mm x 45mm x 97mm (W x H x D)
Packaging Dimensions (mm): 102mm x 68mm x 102mm (W x H x D)
Net Weight (KGs): 0.25 KGs
Gross Weight (KGs): 0.29 KGs
