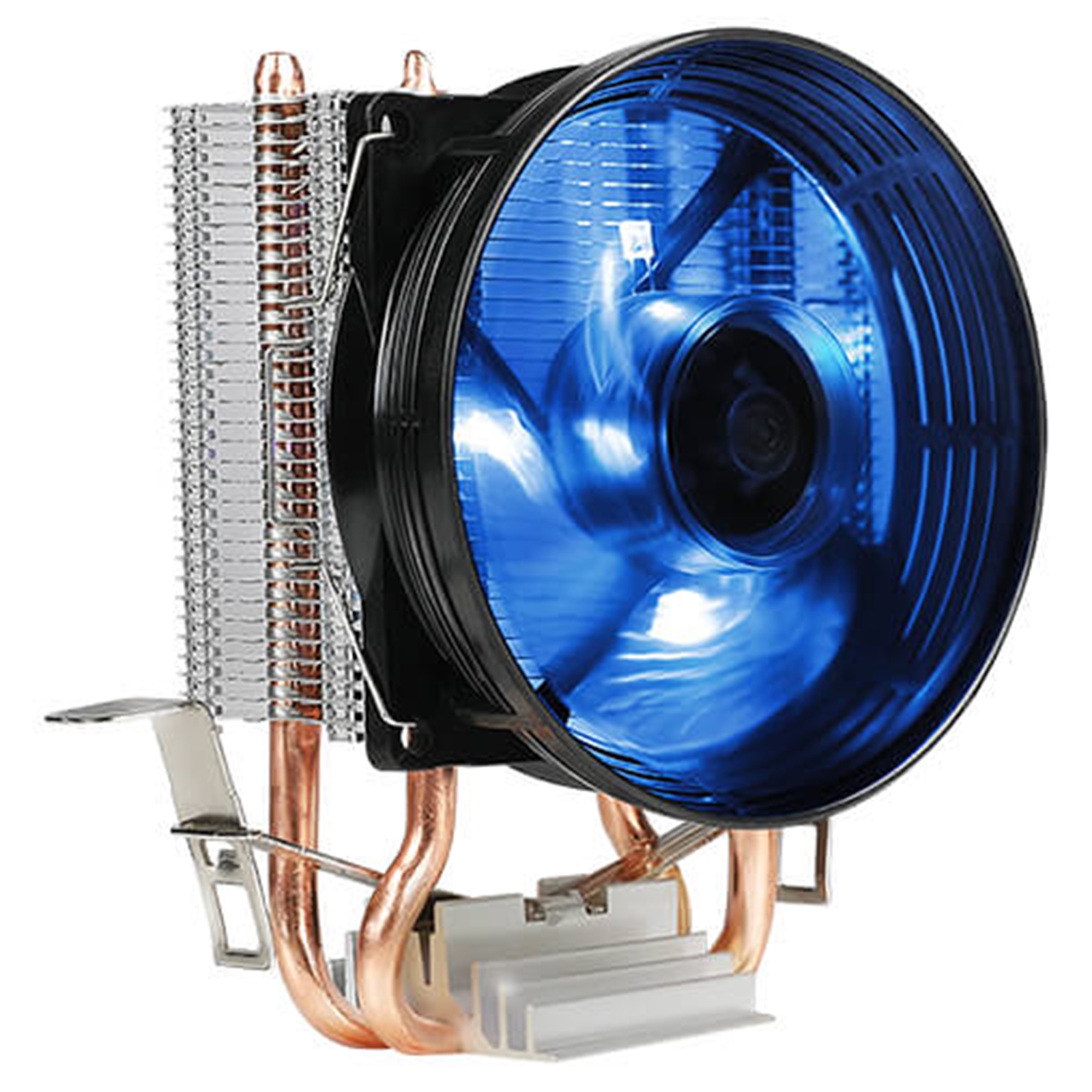

Antec A30 PRO Blue LED Fan CPU Cooler, Universal Socket 92mm PWM 1750RPM, 95W TDP

Key Specifications
Product TypeLow-Profile Fan CPU Cooler
Max Fan Speed1800RPM
LED ColourBlue
/productImages/80/FAANT-A30PRO.jpg
/productImages/80/194615.JPG
/productImages/80/194616.JPG
/productImages/80/194617.JPG
/productImages/80/194618.JPG
/productImages/80/194619.JPG
Manufacturer : ANTEC
EAN : 0761345777520
Manufacturer Part Code : 0-761345-77752-0
Weight : 0.3 kg
Login For Pricing

Key Specifications
Product TypeLow-Profile Fan CPU Cooler
Max Fan Speed1800RPM
LED ColourBlue
Manufacturer :
ANTEC

EAN :
0761345777520

Manufacturer Part Code :
0-761345-77752-0

Weight :
0.3 kg
Recommended Products
1289Motherboards
See details
1283Case Lighting & Mods
See details
1286Processors
See details

A30 PRO CPU Cooler

Blue LED Design
The performance improvement brought by the large fan is needless to say, and the blue LED design makes the fan much more stand out.

Large Heat Dissipation Fin
Set with a 80 x 76 mm heat dissipation area.

Specifications

Cooling Type
Air Cooling

Product Dimension
95 x 62 x 122 mm (D x W x H)

Dimensions
95 x 95 x 25

Type
LED Fan

Speed
1800 ± 10% RPM

Airflow
33.4 CFM max.

Noise
35db (A) max.

Air Pressure
0.8mmH2o (Max)

Connector
3 pin

Rated Voltage
12VDC

Rated Current
0.20A

Heat Pipe Dimension
F6mm

Heat Sink Material
2 Heat Pipes, Aluminum Fins

Socket Compatibility
Intel: LGA 775 / 115X / 1200 / 1700 (Core i3 / i5 CPU)
AMD: AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2

Warranty
2 Years

UPC
0-761345-77752-0

TDP
95 W

Net Weight
0.202Kg

Gross Weight
0.286Kg

Manufacturer's Website:
Warranty:
2 Year Return To Base Warranty
DESIGN
Material Plastic
Product colour Black
Illumination colour Blue
Radiator material Aluminum
Illumination LED Yes
Number of fan blades 7
ENERGY MANAGEMENT
Rated current 0.2 A
Rated voltage 12 V
PERFORMANCE
Type Fan
Compatible processor series Intel® Core™ i3, Intel® Core™ i5
Fan diameter 9.5 cm
Supported processor sockets LGA 1200 (Socket H5), LGA 1700, LGA 775 (Socket T)
Suitable location Processor
Maximum airflow 33.4 cfm
Maximum air pressure 0.8 mmH2O
Noise level (high speed) 35 dB
Rotational speed (max) 1800 RPM
Quantity per pack 1 pc(s)
TECHNICAL DETAILS
Warranty period 2 year(s)
WEIGHT & DIMENSIONS
Fan weight 202 g
Fan dimensions (W x D x H) 95 x 95 x 25 mm
