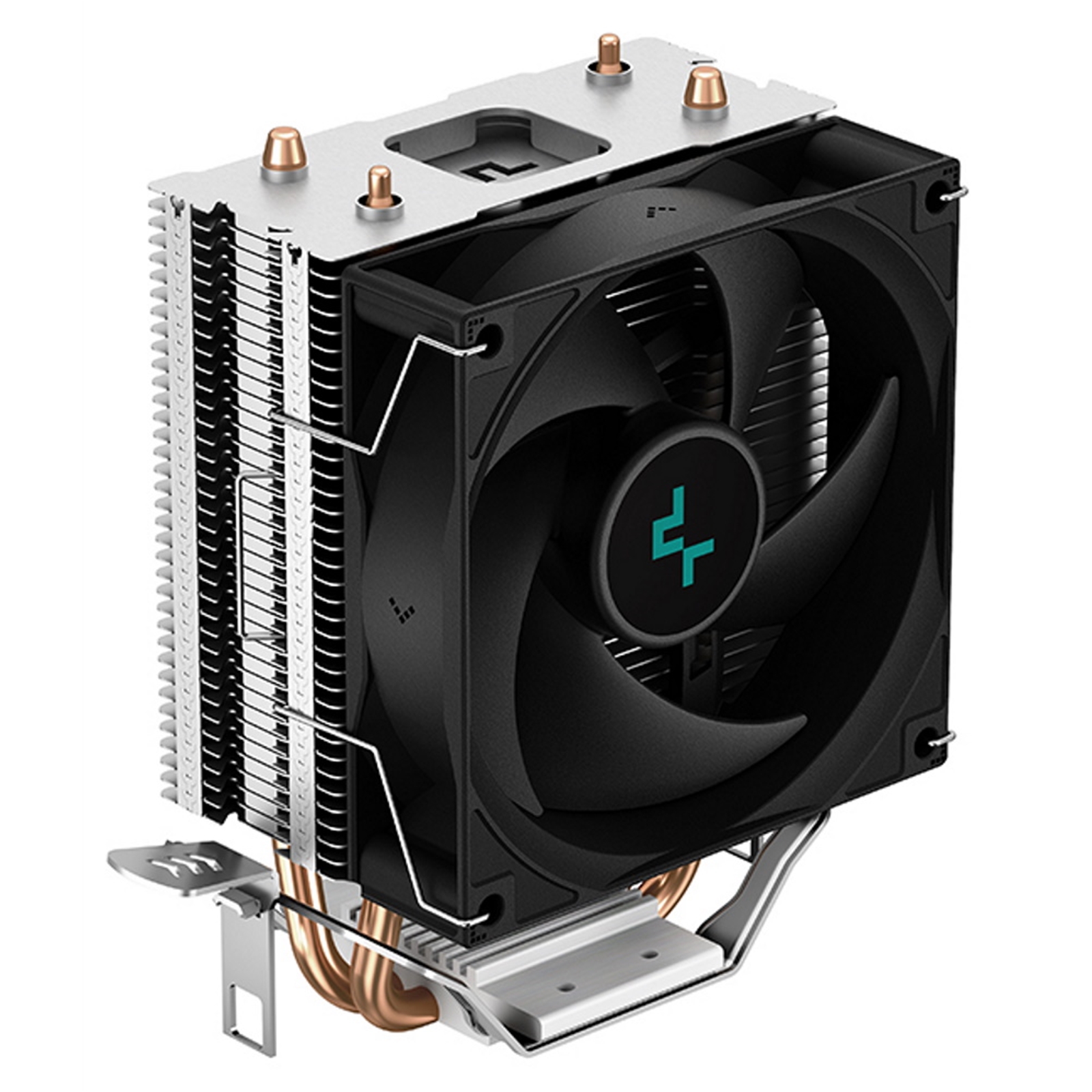

DeepCool AG200 Fan CPU Cooler, Universal Socket, Efficient 92mm PWM Cooling Black Fan, 3050RPM, 2 Heat Pipes, 100W Heat Dissipation Power, Unique Matrix Fin Design, Intel LGA 1700 Bracket Included

FADEE-AG200
Key Specifications
Product TypeFan CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed3050RPM
LED ColourNone
/productImages/80/FADEE-AG200.JPG
/productImages/80/178138.JPG
/productImages/80/178140.JPG
/productImages/80/178141.JPG
/productImages/80/178142.JPG
/productImages/80/178143.JPG
/productImages/80/178144.JPG
/productImages/80/178145.JPG
/productImages/80/178146.JPG
/productImages/80/178147.JPG
Manufacturer : DEEPCOOL
EAN : 6933412727903
Manufacturer Part Code : R-AG200-BKNNMN-G
Weight : 0.45 kg
Login For Pricing

Key Specifications
Product TypeFan CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed3050RPM
LED ColourNone
Manufacturer :
DEEPCOOL

EAN :
6933412727903

Manufacturer Part Code :
R-AG200-BKNNMN-G

Weight :
0.45 kg
Recommended Products
1289Motherboards
See details
1283Case Lighting & Mods
See details
1286Processors
See details
1288Paste
See details

AG200
Single-Tower CPU Cooler
The AG200 is a compact single-tower CPU cooler representing a new generation update from the classic GAMMAXX basic coolers with upgraded appearance and efficiency at 100W heat dissipation power.

EFFICIENT COOLING POWER
Two direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.

NEW FAMILY APPEARANCE
The AG200 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction.

EASY INSTALLATION
Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.

Application For
Intel: LGA1700 / 1200 / 1151 / 1150 / 1155
AMD: AM5 / AM4

Product Dimensions
119 x 77 x 133 mm

Heatsink Dimensions
94 x 57 x 133 mm

Net Weight
304g

Heatpipe
6 mm x 2 pcs

Fan Dimensions
92 x 92 x 25 mm

Fan Speed
500~3050 RPM ± 10%

Fan Airflow
36.75 CFM

Fan Air Pressure
2.89 mmAq

Fan Noise
=30.5 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.13 A

Fan Power Consumption
1.56 W
Manufacturer's Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
DESIGN
Product colour Aluminium, Black
Number of fans 1 fan(s)
Fan connector 4-pin
Number of heat pipes 2
Number of fan blades 5
ENERGY MANAGEMENT
Rated current 0.13 A
Rated voltage 12 V
Fan power consumption 1.56 W
PACKAGING CONTENT
Package type Box
CPU socket spacer(s) Y
PERFORMANCE
Type Air cooler
Fan diameter 9.2 cm
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Suitable location Processor
Maximum airflow 36.75 cfm
Maximum air pressure 2.89 mmH2O
Noise level (high speed) 30.5 dB
Rotational speed (max) 3050 RPM
Rotational speed (min) 500 RPM
Bearing type Hydraulic
Quantity per pack 1 pc(s)
Pulse-width modulation (PWM) support Y
WEIGHT & DIMENSIONS
Weight 304 g
Height 77 mm
Width 119 mm
Depth 133 mm
Radiator width 9.4 cm
Radiator depth 13.3 cm
Radiator height 5.7 cm
Heat pipes diameter 6 mm
Fan dimensions (W x D x H) 92 x 92 x 25 mm
