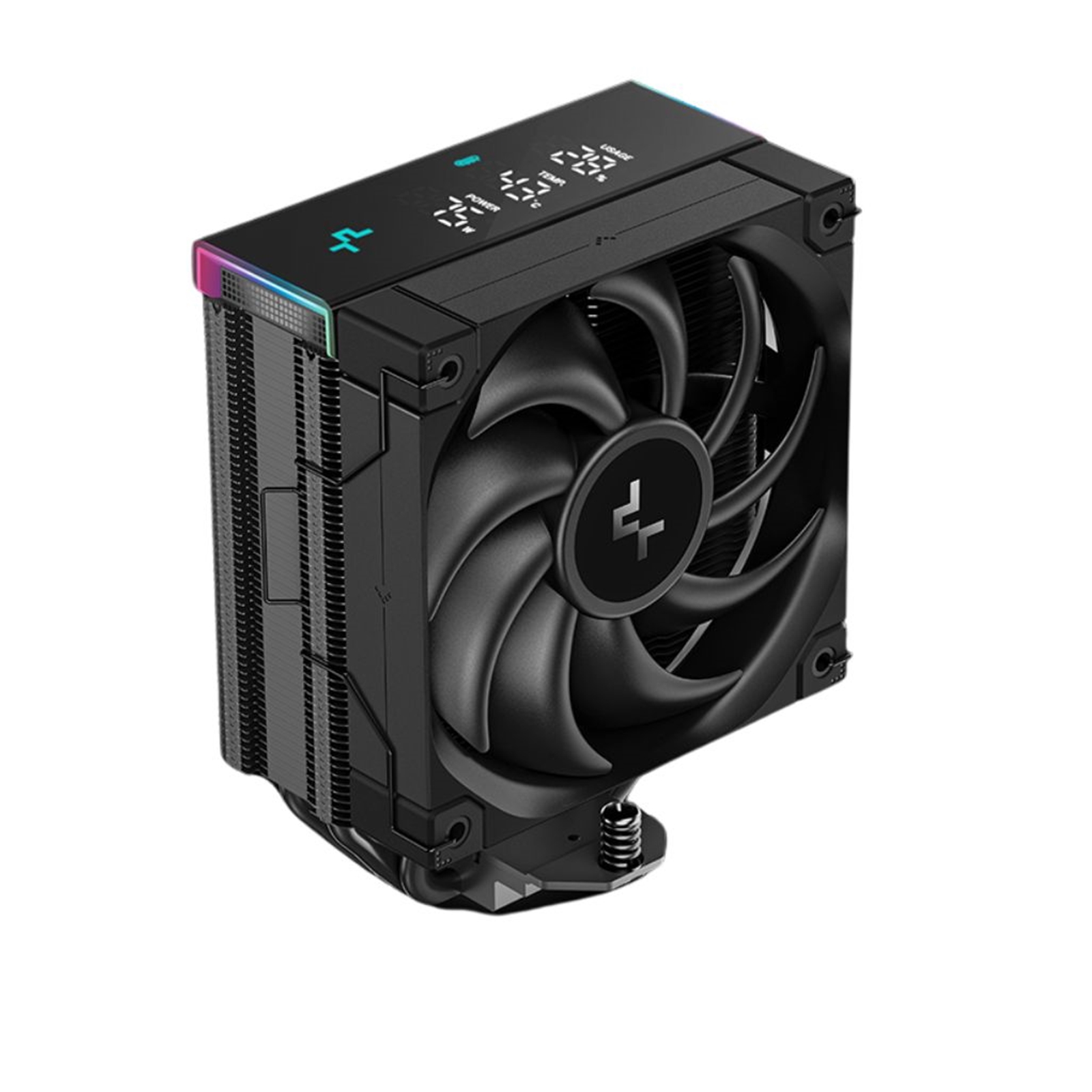

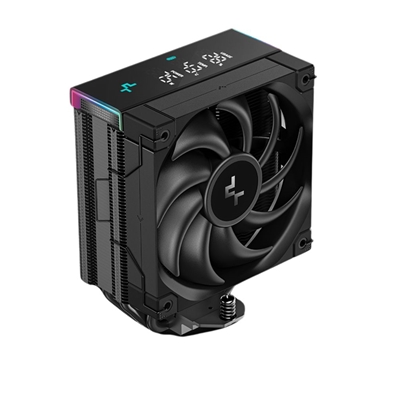

The AK400 Digital Pro is a high-performance CPU air cooler built to deliver excellent thermal management and modern aesthetics. It features a precision-engineered single-tower heatsink with four 6mm direct-contact copper heatpipes that efficiently draw heat away from your processor.
This cooler includes a vibrant addressable RGB 120mm fan that provides dynamic airflow while maintaining quiet operation. A standout feature is the integrated digital display on the heatsink cover, showing real-time CPU temperature, usage, and power consumption for system monitoring at a glance.
Its compact design ensures broad compatibility with memory modules and various PC cases, while the simplified mounting hardware allows for easy installation on both Intel and AMD platforms.
Key Features:
Digital Display: Integrated screen shows CPU temperature, usage, and power
Efficient Heat Dissipation: Four direct-contact 6mm copper heatpipes and dense fin array
ARGB Lighting: Addressable RGB 120mm fan for customizable lighting
Quiet Operation: Fan operates with low noise, ideal for performance and silence
Broad Compatibility: Supports a wide range of Intel and AMD CPU sockets
Easy Installation: User-friendly mounting system with thermal paste included
Specifications:
General:
Product Name:
AK400 Digital Pro
Color:
Black
Cooler Type:
Single-Tower Air Cooler
Dimensions:
126 × 97 × 159 mm (L × W × H)
Net Weight:
862 g
Heatsink:
Material:
Aluminum fins with 4 x Ø6mm copper heatpipes
Design:
Single-tower with offset for RAM clearance
Fan:
Dimensions:
120 x 120 x 25 mm
Speed:
500 – 1750 RPM ±10%
Airflow:
60.89 CFM
Static Pressure:
2.91 mmAq
Noise Level:
=25 dB(A)
Bearing Type:
Fluid Dynamic Bearing
Connector:
4-pin PWM
Voltage:
12V DC
Current:
0.25 A
Power:
3W
Digital Display & Lighting:
Display:
Real-time CPU monitoring screen
Lighting Type:
Addressable RGB (ARGB)
Connector:
3-pin ARGB (5V-D-G) + USB 2.0 header
Voltage:
5V DC
Power Consumption:
4.25W
Compatibility:
Intel Sockets:
LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155
AMD Sockets:
AM5, AM4
In the Box:
CPU Cooler
120mm PWM ARGB Fan
Mounting Hardware for Intel and AMD
Thermal Paste
User Manual
Warranty:
3 Years
Warranty:
3 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Number of fans |
1 fan(s) |
| Illumination colour |
Multi |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Number of heat pipes |
4 |
| Illumination LED |
Yes |
| Number of fan blades |
9 |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Fan voltage |
12 V |
| Fan current |
0.25 A |
| Fan power consumption |
3 W |
| LED voltage |
5 V |
PACKAGING CONTENT
|
| Package type |
Box |
| Mounting kit |
Yes |
| Screws included |
Yes |
| CPU bracket(s) |
Yes |
PERFORMANCE
|
| Type |
Air cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
60.89 cfm |
| Maximum air pressure |
2.91 mmH2O |
| Fan speed (max) |
1750 RPM |
| Fan speed (min) |
500 RPM |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
25 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Fan bearing technology |
Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
|
| Weight |
862 g |
| Height |
156 mm |
| Width |
97 mm |
| Depth |
126 mm |
| Radiator width |
6 cm |
| Radiator depth |
12 cm |
| Radiator height |
15.2 cm |
| Heat pipes diameter |
6 mm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
