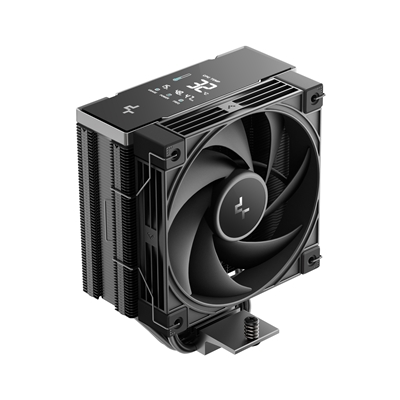

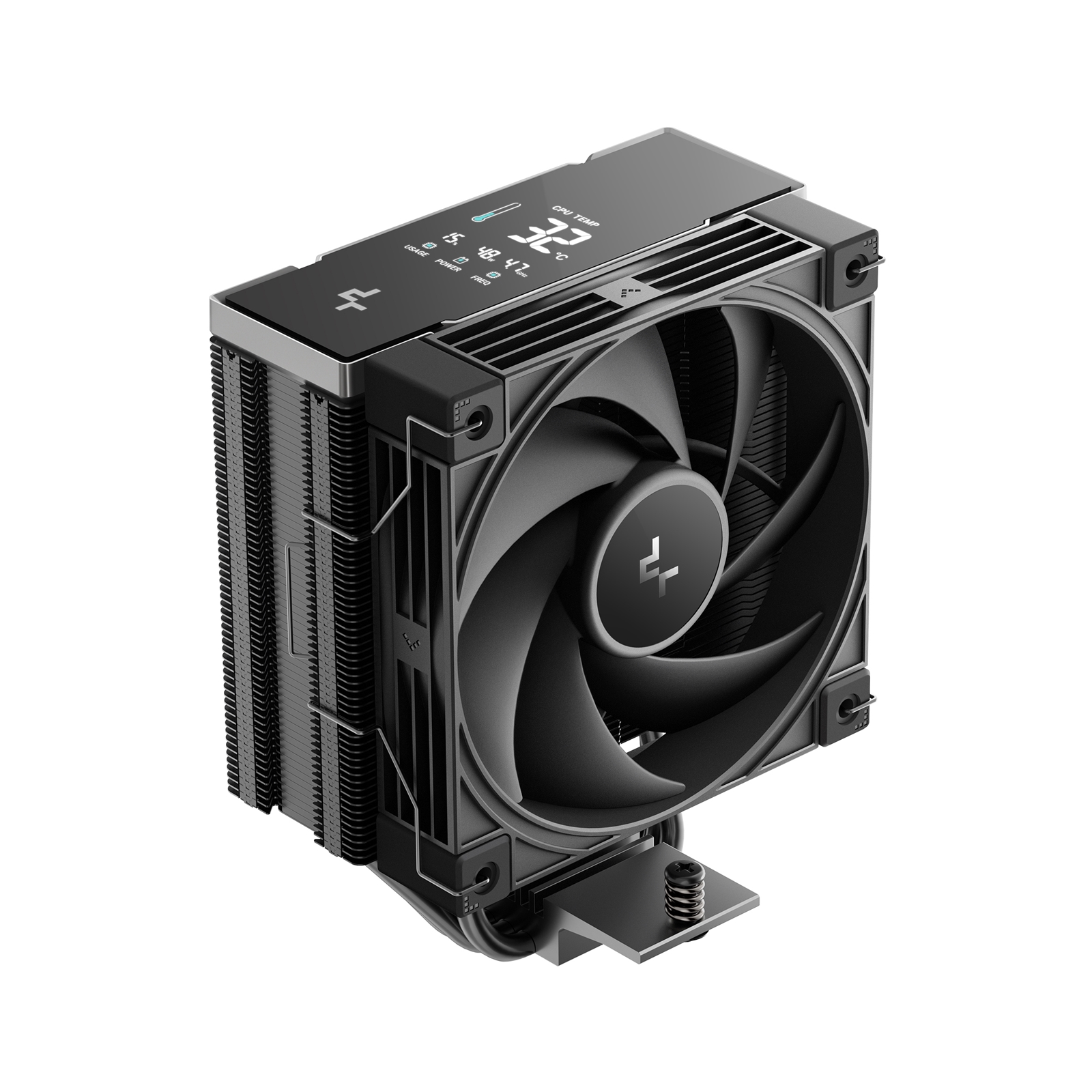

DeepCool AK400 G2 DIGITAL NYX CPU Cooler
Further improved second generation of the iconic AK DIGITAL lineup with upgraded performance and a bold new aesthetic. It features four advanced copper heat pipes, a single-tower heatsink, newly designed silent fan,?and now sports a high-end quad-segmented digital display that delivers elite cooling backed by upgraded tech and real-time insight.
AI-TUNED CHILL. POWERED BY DeepCreative
With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative's proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.
NEXT GENERATION PERFORMANCE
Thanks to DeepCool's latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK400 G2 DIGITAL NYX gains a bump in cooling performance compared to its predecessor.
THE DIGITAL TOUCH
The standout addition of the AK400 G2 DIGITAL NYX is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
PROVEN AK DESIGN
The AK400 G2 DIGITAL NYX continues its legacy by featuring four direct touch copper heat pipes that delivers improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.
PREMIUM COMPATIBILITY
Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.
COOL, QUIET, AND POWERFUL
Equipped with high-quality hydraulic bearing and a three-phase, six-slot, four-pole motor, the AK400 G2 DIGITAL NYX's fan operates smoothly and quietly.
MULTI-PLATFORM PERFORMANCE
The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Specifications
Product Dimensions
132x92x156 mm(LxWxH)
Heatsink Dimensions
130x92x151 mm(LxWxH)
Net Weight
958 g
Heatpipe
Ø6 mmx4 pcs
Fan Dimensions
120x120x25 mm(LxWxH)
Fan Speed
2200±10% RPM(max)
Fan Airflow
63.4 CFM
Fan Air Pressure
3.33 mmAq
Fan Noise
=31.45 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.25 A
Fan Power Consumption
3 W
Display Module Rated Current
0.13 A±10%
Display Module Rated Voltage
5 VDC
Display Module Power Consumption
0.65 W
Display Area
29x39 mm
Warranty:
3 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
DESIGN
|
| Product colour |
Black |
| Display size (HxV) |
29 x 39 mm |
| Number of fans |
1 fan(s) |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Number of heat pipes |
4 |
| Number of fan blades |
7 |
ENERGY MANAGEMENT
|
| Fan voltage |
12 V |
| Fan current |
0.25 A |
| Fan power consumption |
3 W |
OTHER FEATURES
|
| Built-in display |
Yes |
PACKAGING CONTENT
|
| Package type |
Box |
| Mounting kit |
Yes |
| Screws included |
Yes |
| CPU bracket(s) |
Yes |
PERFORMANCE
|
| Type |
Air cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
63.4 cfm |
| Maximum air pressure |
3.33 mmH2O |
| Fan speed (max) |
2200 RPM |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
31.45 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Fan bearing technology |
Hydro Dynamic Bearing (HDB) |
WEIGHT & DIMENSIONS
|
| Weight |
958 g |
| Height |
156 mm |
| Width |
92 mm |
| Depth |
132 mm |
| Radiator width |
9.2 cm |
| Radiator depth |
13 cm |
| Radiator height |
15.1 cm |
| Heat pipes diameter |
6 mm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
