DeepCool AK400 Zero Dark Fan CPU Cooler, Universal Socket, High Performance 120mm Silent Hydro Bearing PWM Black Fan, 1850RPM, 4 Heat Pipes, Unique Matrix Fin Design, All Black, Intel LGA 1700 Bracket Included

Key Specifications
Product TypeFan CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed1850RPM
LED ColourNone
/productImages/80/FADEE-AK400ZDARK.JPG
/productImages/80/186176.JPG
/productImages/80/186177.JPG
/productImages/80/186178.JPG
/productImages/80/186179.JPG
/productImages/80/186180.JPG
/productImages/80/186181.JPG
/productImages/80/186182.JPG
/productImages/80/186183.JPG
/productImages/80/186184.JPG
Manufacturer : DEEPCOOL
EAN : 6933412727804
Manufacturer Part Code : R-AK400-BKNNMN-G-2
Weight : 1.85 kg
Login For Pricing

Key Specifications
Product TypeFan CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed1850RPM
LED ColourNone
Manufacturer :
DEEPCOOL

EAN :
6933412727804

Manufacturer Part Code :
R-AK400-BKNNMN-G-2

Weight :
1.85 kg
Recommended Products
1289Motherboards
See details
1283Case Lighting & Mods
See details
1286Processors
See details

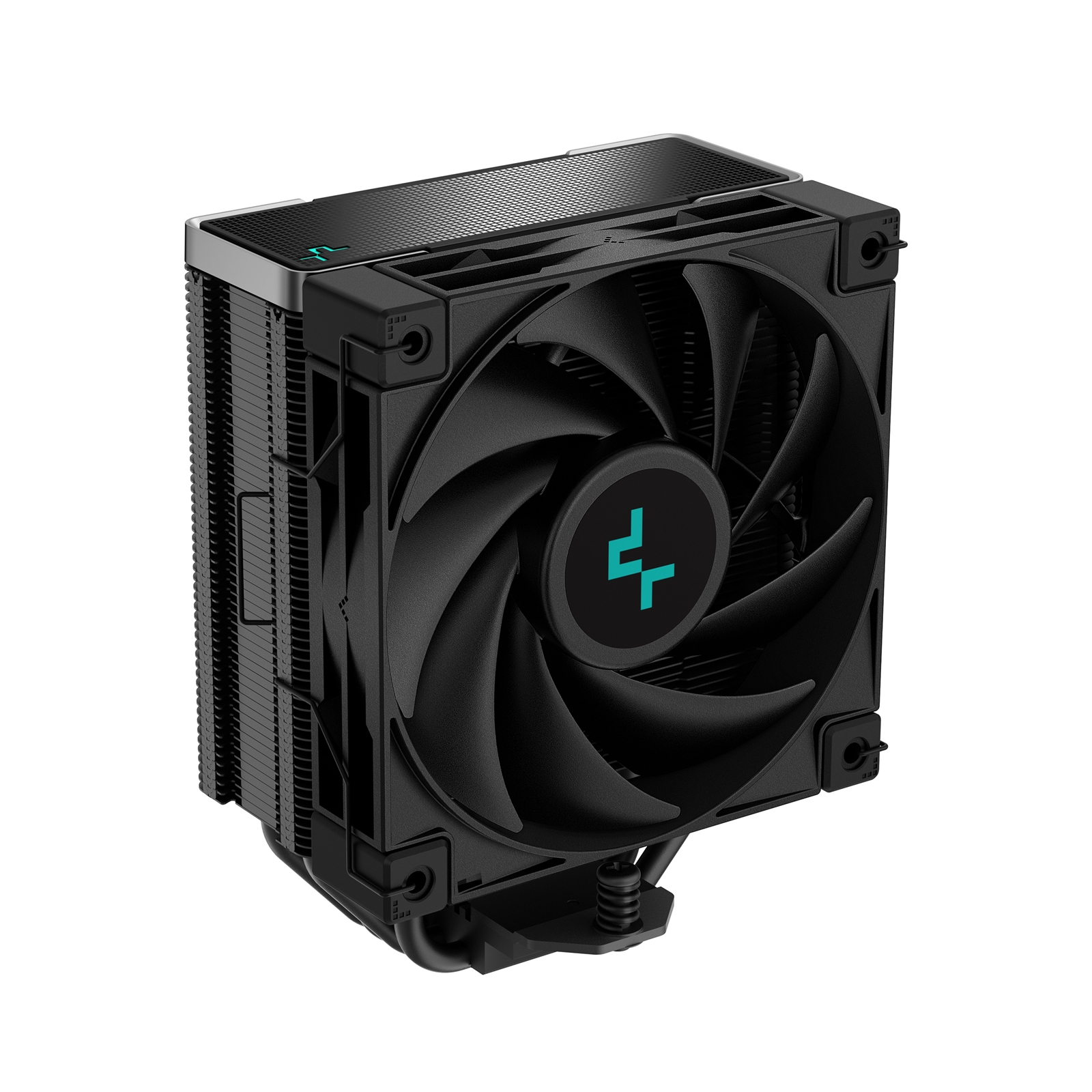

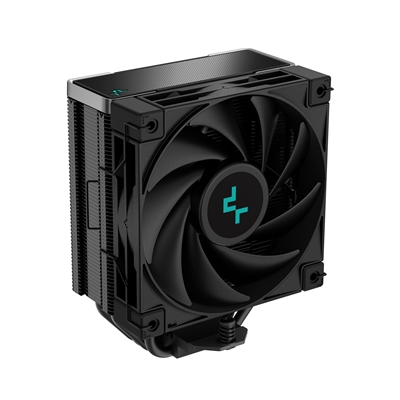

AK400 ZERO DARK
The DeepCool AK400 ZERO DARK is an all-black variant of our highly compatible AK400 CPU cooler featuring a classic four heat pipe tower layout with a unique matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.

Dripping in black from head to toe, the AK400 ZERO DARK edition coats every surface in a premium all-black luster for a bold look in any system setup.

ADVANCED HEAT DISSIPATION
Four direct touch copper heat pipes rapidly transfer heat away from the processor effectively and dissipate through a single fin stack tower with a unique matrix array design.

FLUID DYNAMIC BEARING FAN
Achieve high-performance cooling with minimal noise levels thanks to the high-performance FDB fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.

SIMPLE AND SECURE INSTALLATION
The improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.


Specifications

Product Dimensions
127x97x155 mm(LxWxH)

Heatsink Dimensions
120x45x152 mm(LxWxH)

Net Weight
661 g

Heatpipe
6 mmx4 pcs

Fan Dimensions
120x120x25 mm(LxWxH)

Fan Speed
500~1850 RPM±10%

Fan Airflow
66.47 CFM

Fan Air Pressure
2.04 mmAq

Fan Noise
=29 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12V DC

Fan Rated Current
0.13A

Socket Compatibility
1150
1151
1155
1200
1700
AM4
AM5

TDP
220W

Fan Power Consumption
1.56 W
Manufacturer's Website:
Warranty:
3 Year Return To Base Warranty
DESIGN
Product colour Black
Number of fans 1 fan(s)
Fan connector 4-pin
Number of heat pipes 4
Number of fan blades 9
ENERGY MANAGEMENT
Rated current 0.13 A
Thermal Design Power (TDP) 220 W
Rated voltage 12 V
Fan power consumption 1.56 W
PACKAGING CONTENT
Package type Box
Mounting kit Yes
PERFORMANCE
Type Air cooler
Fan diameter 12 cm
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Suitable location Processor
Maximum airflow 66.47 cfm
Maximum air pressure 2.04 mmH2O
Noise level (high speed) 29 dB
Rotational speed (max) 1850 RPM
Rotational speed (min) 500 RPM
Bearing type Fluid Dynamic Bearing (FDB)
Quantity per pack 1 pc(s)
WEIGHT & DIMENSIONS
Weight 661 g
Height 97 mm
Width 127 mm
Depth 155 mm
Radiator width 12 cm
Radiator depth 15.2 cm
Radiator height 4.5 cm
Heat pipes diameter 6 mm
Fan dimensions (W x D x H) 120 x 120 x 25 mm
