ZERO DARK EDITION

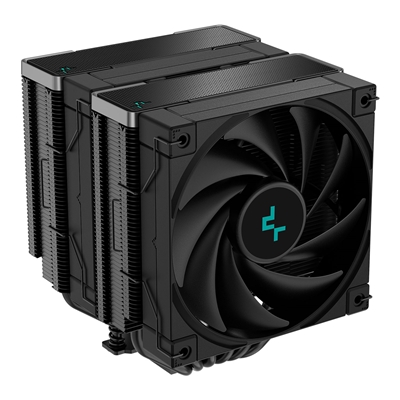

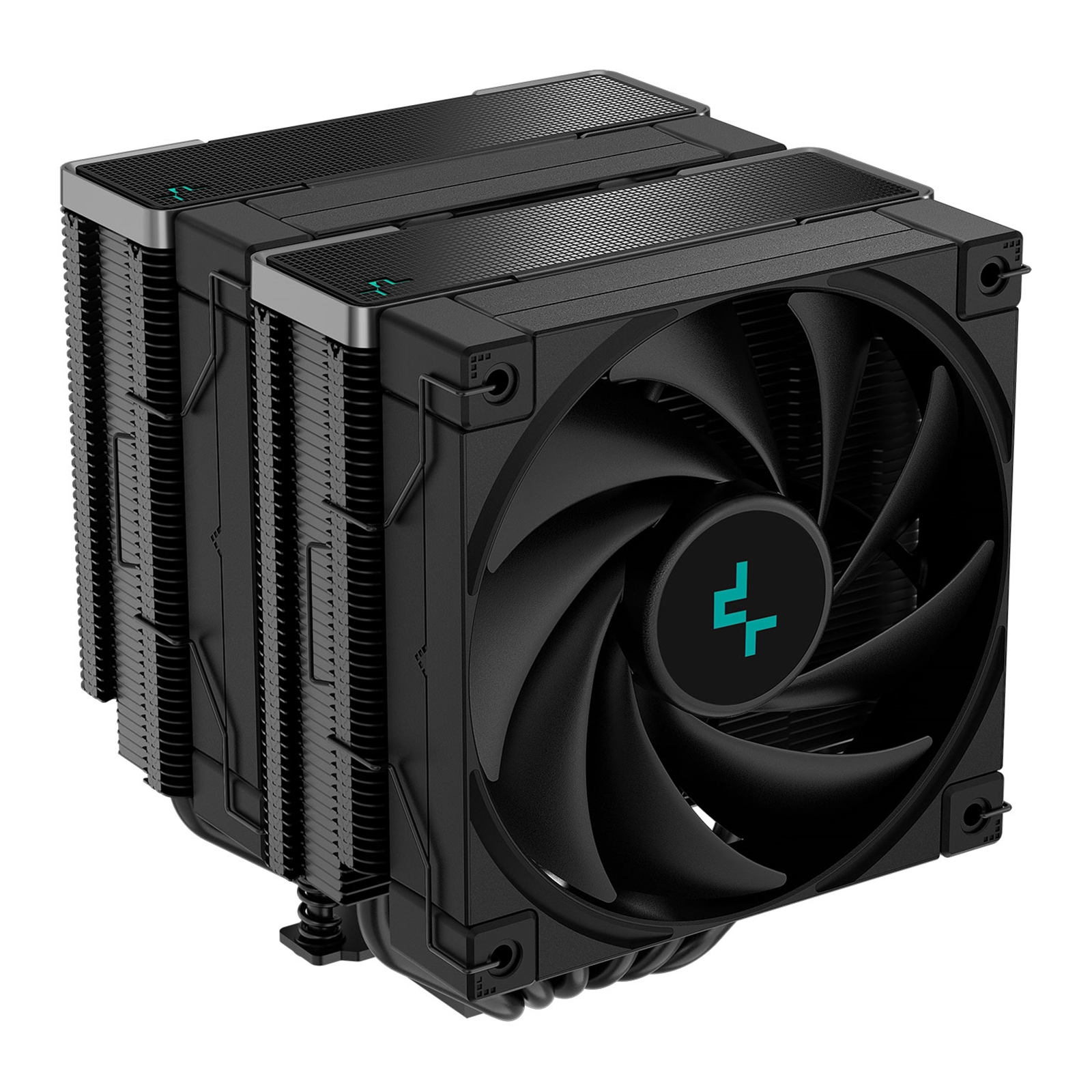

The DeepCool AK620 ZERO DARK is an all-black edition of the dominant AK620 high performance CPU cooler. The same premium quality materials featuring six advanced copper heat pipes, a dense dual-tower heat sink, and two silent FDB fans produces a powerful winning formula for high performance cooling in a ZERO DARK raven design. Dripping in black from head to toe, the AK620 ZERO DARK edition coats every surface in a premium all-black luster for a bold look in any system setup.

UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 ZERO DARK features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.

COOL, QUIET AND POWERFUL
Two powerful PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.

EXCEPTIONAL COOLING BY DESIGN
The AK620 ZERO DARK features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.

MULTI-PLATFORM PERFORMANCE
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.

Specifications

Product Dimensions
129 x 138 x 160 mm(L x W x H)

Heatsink Dimensions
127 x 110 x 157 mm(L x W x H)

Net Weight
1456 g

Heatpipe
6 mm x 6 pcs

Fan Dimensions
120 x 120 x 25 mm(L x W x H)

Fan Speed
500 - 1850 RPM +10%

Fan Airflow
68.99 CFM

Fan Air Pressure
2.19 mmAq

Fan Noise
<28 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.12 A

Socket Compatibility
1150
1151
1155
1200
1700
2011
2011-3
2066
AM4
AM5

TDP
260W

Fan Power Consumption
1.44 W
