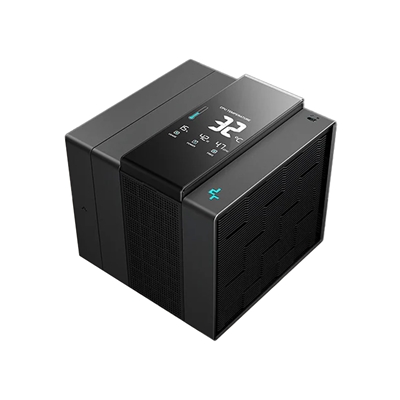

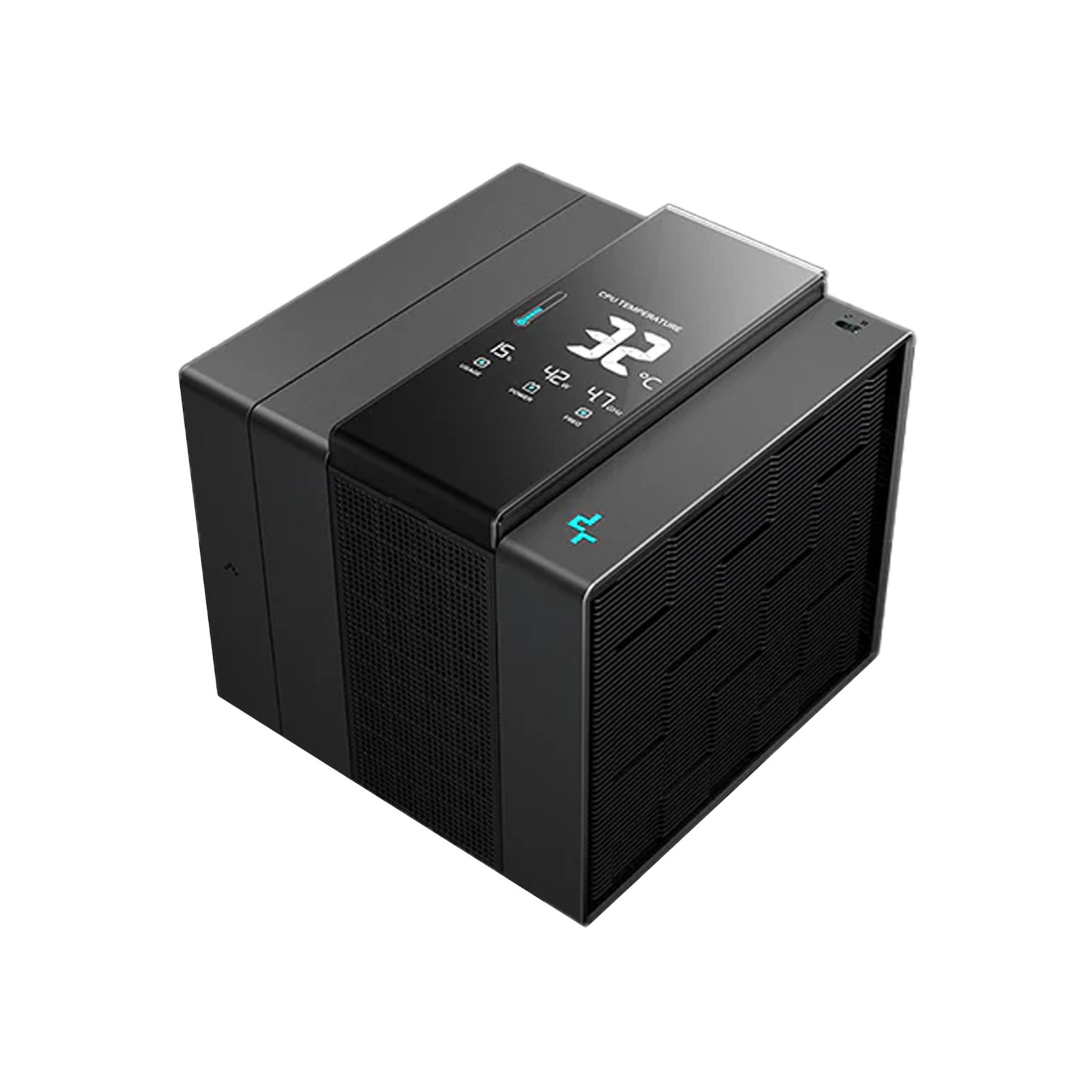

The DeepCool Assassin IV VC Vision is a high-performance CPU air cooler designed for both Intel and AMD processors. This flagship cooler integrates advanced cooling technologies and user-friendly features to ensure optimal thermal management for high-end systems.

It has been engineered for enthusiasts seeking top-tier air cooling solutions with modern monitoring capabilities. Its combination of a vapour chamber base, dual-fan setup, and digital display ensures both exceptional performance and user engagement.

Key Features:
Vapour Chamber Base
Quad-Segmented Digital Display
Dual-Fan Configuration
Broad Socket Compatibility

Specifications:
Dimensions:
Product: 147 x 144 x 172 mm (LxWxH)
Heatsink: 140 x 110 x 160 mm (LxWxH)

Weight:
1780 g

Heatpipes:
7x 6mm heatpipes

Fan Details:
140mm Fan:
Speed: 5001800 RPM±10% (Performance Mode), 5001450 RPM±10% (Quiet Mode)
Airflow: 61.25 CFM (Performance Mode), 48.55 CFM (Quiet Mode)
Air Pressure: 3.76 mmAq (Performance Mode), 2.46 mmAq (Quiet Mode)
Noise Level: =29.3 dB(A) (Performance Mode), =22.6 dB(A) (Quiet Mode)

120mm Fan:
Speed: 5001700 RPM±10% (Performance Mode), 5001350 RPM±10% (Quiet Mode)
Airflow: 58.06 CFM (Performance Mode), 46.75 CFM (Quiet Mode)
Air Pressure: 2.1 mmAq (Performance Mode), 1.35 mmAq (Quiet Mode)
Noise Level: =29.3 dB(A) (Performance Mode), =22.6 dB(A) (Quiet Mode)

Fan Connector:
4-pin PWM

Bearing Type:
Fluid Dynamic Bearing

Rated Voltage:
12 VDC

Power Consumption:
Performance Mode: 4.8 W
Quiet Mode: 3.6 W

Display Module:
Rated Voltage: 5 VDC
Rated Current: 0.08 A±10%
Power Consumption: 0.4 W
Display Area: 44.6 x 53.6 mm
