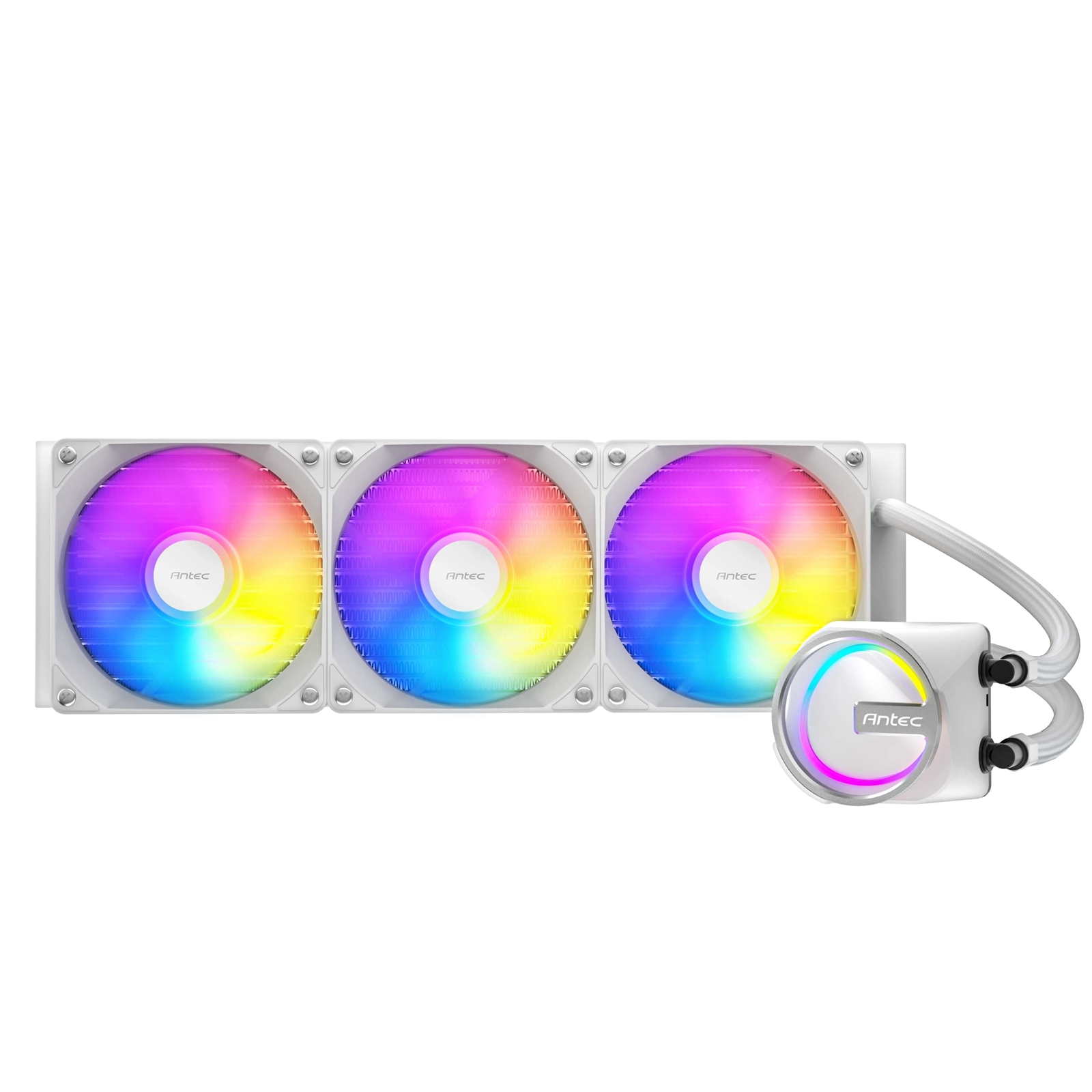

Antec Skeleton 360 ARGB, White
Specifications
Fan
Dimensions 120 x 120 x 25 mm
Type PWM ARGB LED Fan
Speed 800±200- 2000±10% RPM
Airflow 72.29 CFM (max.)
Noise 32 dB(A)
Air pressure 3.28 mmH2O (max.)
Lifespan 50,000 hours at 40C room, ambient 15-65% RH
Radiator
Dimensions 397 x 120 x 27 mm
Material Aluminum, Polycarbonate
Head
Dimensions 67.5 x 66 mm
Connector PUMP: 4-pin | LED: 3-pin
Water Pressure 1.4m
Flow rate =1300 mL/min
Lifespan 40,000 hours
Noise =30 dB(A)
Socket Compatibility
Intel:LGA115X/1200/1700/1851/20XX
AMD:AM3/AM4/AM5
Warranty
3 Years
Net Weight
1.15 kg
Gross Weight
1.64 Kg
Package Size
330x220x136 mm
Warranty:
3 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
DESIGN
|
| Product colour |
White |
| Number of fans |
3 fan(s) |
| Illumination colour |
Amber, Blue, Red, Green |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Illumination LED |
Yes |
PERFORMANCE
|
| Type |
All-in-one liquid cooler |
| Mean time between failures (MTBF) |
50000 h |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1700, LGA 1200 (Socket H5), LGA 1851, LGA 2011 (Socket R), Socket AM3, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
72.29 cfm |
| Maximum air pressure |
3.28 mmH2O |
| Rotational speed (max) |
2000 RPM |
| Rotational speed (min) |
800 RPM |
| Quantity per pack |
1 pc(s) |
| Pump noise level |
30 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Pump connector |
4-pin |
| Pump's mean time to failure (MTTF) |
40000 h |
WEIGHT & DIMENSIONS
|
| Weight |
1.42 kg |
| Package weight |
2.01 kg |
| Height |
66 mm |
| Radiator width |
39.7 cm |
| Radiator depth |
12 cm |
| Radiator height |
2.7 cm |
| Pump width |
6.75 cm |
