be quiet! (BW031) DYNAMIC LIGHTING, SUPREME COOLING

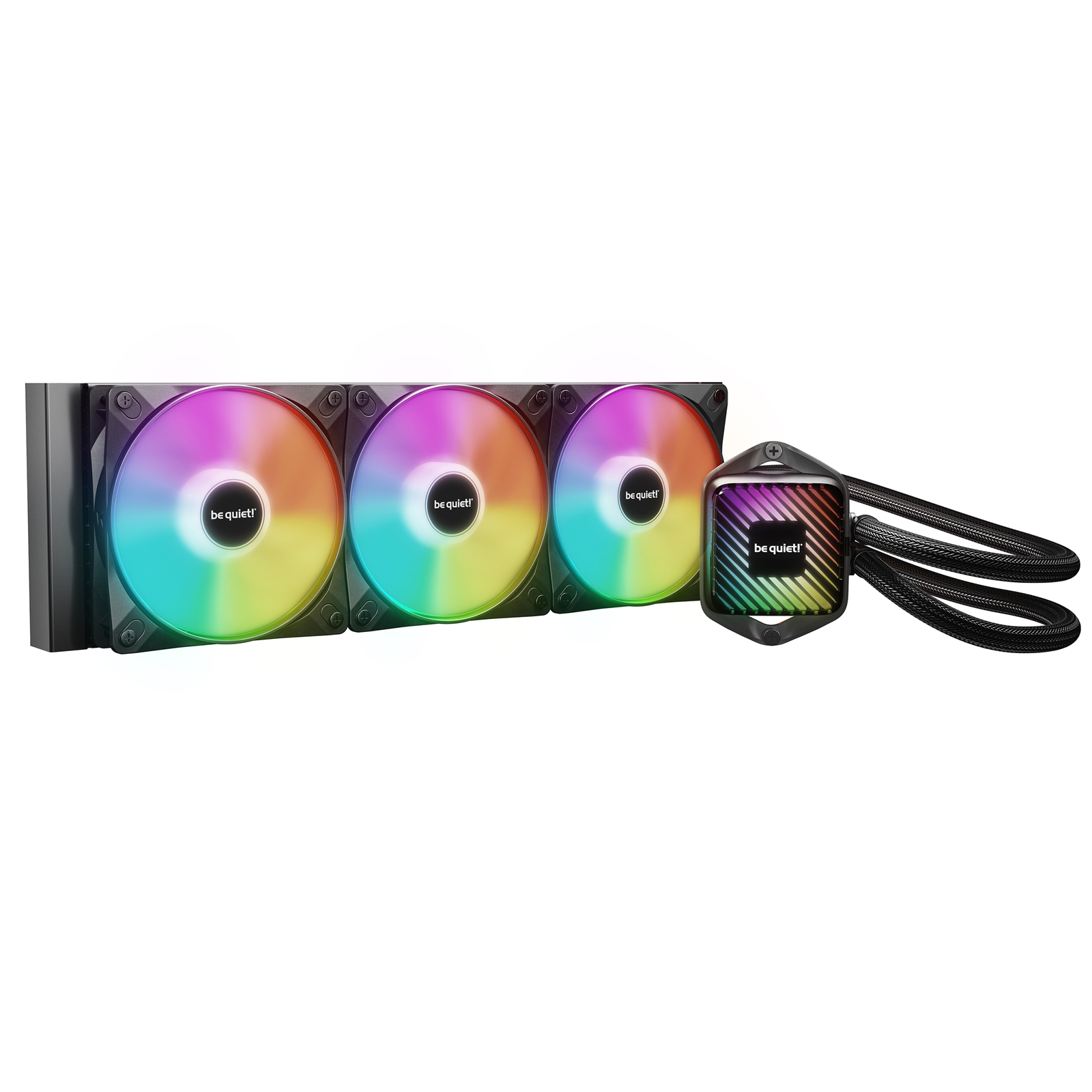

Pure Loop 3 LX 360mm boasts vibrant lighting, stunning customization options and an extremely high cooling performance. The illuminated cooling block does not only feature spectacular ARGB effects but also comes with 10 lighting foils in the scope of delivery. With these, you can individually adjust the lighting to the effect you prefer.

Stylish ARGB cooling block featuring 10 included lighting foils for extensive illumination options and breathtaking visual effects
Incomparable options for individualization
3 Light Wings LX PWM high-speed fans with funnel-shaped air outlets and closed loop motor for colorful and vibrant cooling
Daisy-chained PWM fans for maximum convenience
Impressively high cooling performance for all consumer CPUs
State-of-the-art PWM pump with 6-pole motor reduces vibrations to an absolute minimum
Easy-to-access refill port for convenient handling
Unique design language
3-year manufacturer's warranty
Product conception, design and quality control in Germany

Specifications

General data

Model Pure Loop 3 LX 360mm
Color option - No
Dimensions radiator, incl. fan (H x W x D), (mm) 397 x 120 x 52
Dimensions cooling block (H x W x D), (mm) 68.5 x 93.4 x 48.7
Total weight (kg) 1.280
Socket compatibility Intel 1851 / 1700 / 1200 / 1151 / 1150 / 1155
Socket compatibility AMD AM5 / AM4
Noise level (dB(A)) at 50% / 75% /100% rpm 17.3 / 29.4 / 36.9
Number of fans 3
Lighting connector Yes
Tube length (mm) 400
Refill port Yes

Pump specifications

Pump speed (rpm) 5500
Pump adjustable (rpm) 3000 - 5500
Pump connector 4-pin PWM

Radiator specifications
Dimensions (L x W x H), (mm) 397 x 120 x 27
Radiator material / finish Aluminum
Base material / finish copper

Fan specifications

Fan model Light Wings LX 120mm PWM high-speed
Fan dimensions (mm) 120 x 25 x 120
Speed at 100% PWM (rpm) 2100
Airflow at 100% PWM / 12V (cfm / m3/h) 61.8 / 105.1
Air pressure at 100% PWM / 12V (mm H2O) 2.51
Bearing technology Rifle
Motor technology 4-pole
Rated voltage (V) 12
Input current (A) 0.17
Safety current (A) 0.45
Input power (W) 5.4
Connector proprietary
Cable length (mm) 20 / 100 + daisy chain
Lifespan (h / 25°C) 60,000

Accessories

Thermal grease (Type) Included
Mounting set Intel, AMD
Adapter cables PWM/ARGB extension
Bottle of coolant (ml) - No
ARGB controller with SATA cable - No
ARGB-PWM-Hub - No
User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW

Safety certifications

Approvals CE, UKCA, FCC

Environmental directives

RoHS Yes
WEEE Yes
Triman Yes

Service

Warranty (Years) 3
International hotline / free of charge Yes / DE, FR, US

Logistics data

Dimensions, package (L x W x H), (mm) 461 x 206 x 138
Gross weight, package (kg) 2.15
Pieces per packaging unit 4
Dimensions, shipping box (L x W x H), (mm) 476 x 430 x 305
Gross weight, shipping box (kg) 9.9
