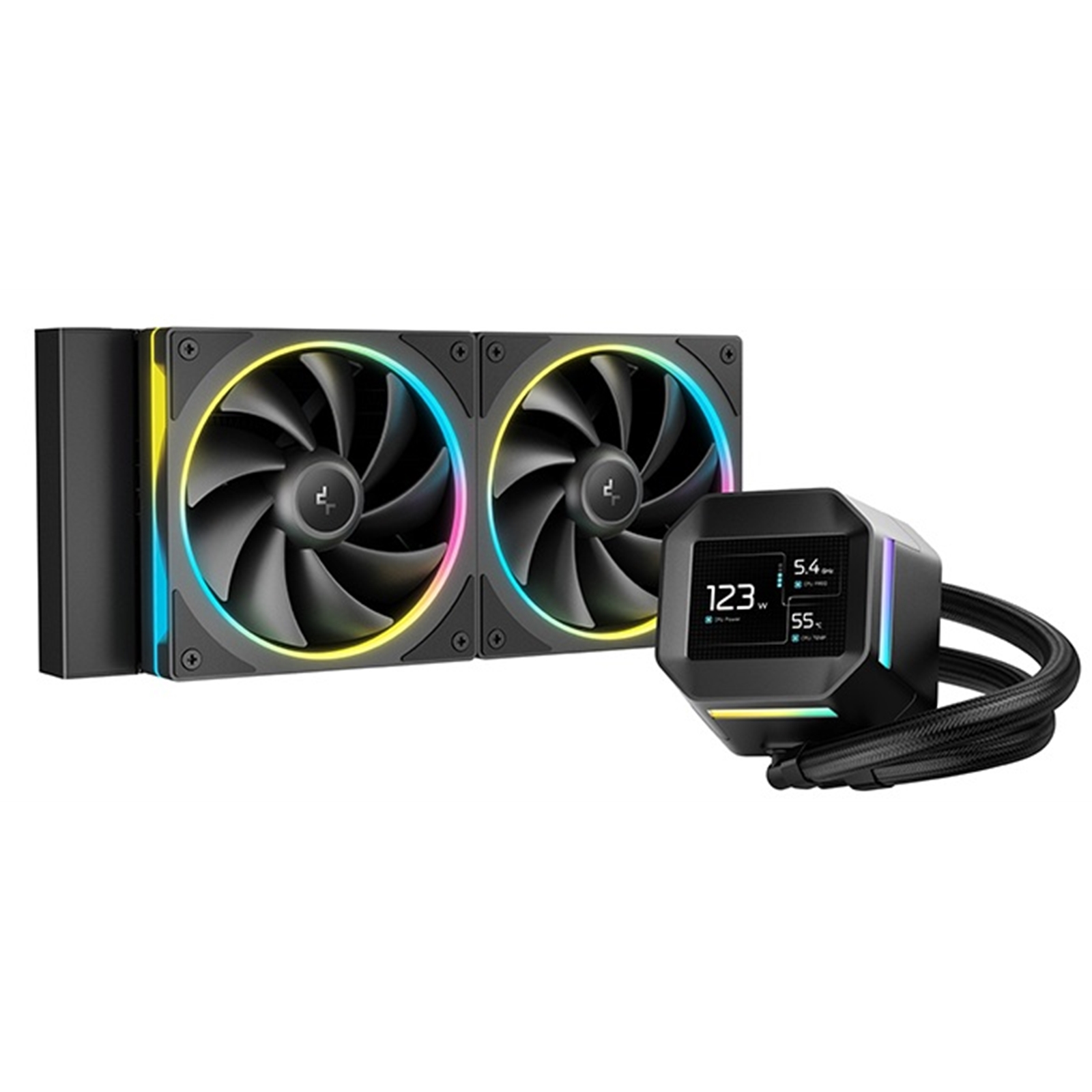

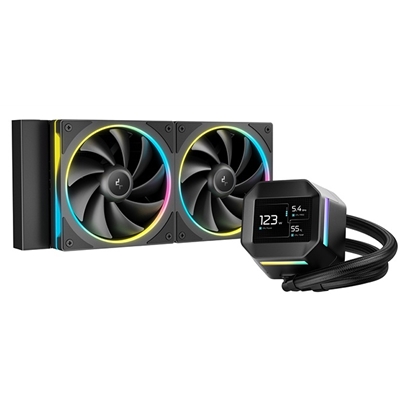

The DeepCool LM240 is a premium, all-in-one liquid CPU cooler that combines high-performance cooling with a unique 2.4? IPS display. The display supports MP4 video playback, allowing you to customize the screen with system stats, images, animations, or logos — giving your build a dynamic and personal touch.
The LM240 features a 6th-generation pump with PWM control, delivering stable liquid flow between 2,500 and 3,600 RPM for efficient heat transfer while maintaining quiet operation. Its aluminium radiator measures 282 X 120 X 27 mm and is paired with two powerful 120 mm FL12 SE fans that run from 400 to 2,400 RPM using long-lasting hydraulic bearings.
The cooler supports a wide range of Intel and AMD platforms, including the newest LGA 1851, LGA 1700, and AMD AM5, making it suitable for modern gaming and workstation systems. DeepCool's Anti-Leak Technology further enhances reliability by regulating system pressure to reduce the risk of leakage over time.
ARGB lighting is included on both the pump and fans, syncable via motherboard software or optional DeepCool control software. With a sturdy mounting system and premium build quality, the LM240 delivers strong thermal performance, modern aesthetics, and broad compatibility for demanding PC builds.
Full Specifications
Model / MPN:
LM240 (R-LM240-BKDMMC-1)
Type:
AIO (All-in-One) Liquid CPU Cooler
Supported Sockets:
Intel: LGA 1851, LGA 1700, LGA 1200, LGA 1151/1150/1155
AMD: AM5, AM4
Net Weight:
1,404 g
Radiator Dimensions:
282 X 120 X 27 mm (L X W X H)
Radiator Material:
Aluminium
Tubing Length:
410 mm
Pump Dimensions:
90 X 80 X 63 mm
Pump Speed (RPM):
2,500 – 3,600 RPM ±10%
Pump Connector:
4-pin PWM
Pump Rated Voltage:
12 V DC
Pump Rated Current:
0.29 – 0.34 A (varies slightly by batch)
Pump Power Consumption:
3.48 – 4.08 W (approx.)
Fans:
2 X 120 mm FL12 SE (120 X 120 X 25 mm)
Fan Speed:
400 – 2,400 RPM ±10%
Fan Airflow:
66.23 CFM
Fan Air Pressure:
3.27 mmAq
Noise Level (Max):
36.07 dB(A)
Bearing Type:
Hydro (hydraulic) bearing
Fan Connector:
4-pin PWM
LED Type:
Addressable RGB (ARGB)
LED Connector:
3-pin (+5V-D-G)
LED Rated Voltage:
5 V DC
LED Power Consumption:
1.5 W (Pump) / approx. 3.5 W (Fans)
Display:
2.4 IPS screen, 320 X 240 resolution, supports MP4 video playback
Special Features:
Anti-Leak Technology (internal pressure regulation)
Material (Block / Tubes):
Copper block, aluminium radiator
Colour / Finish:
Black
Warranty:
3 years
EAN / Barcode:
6933412729457
Warranty:
3 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Number of fans |
2 fan(s) |
| Display type |
IPS |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Illumination LED |
Yes |
| Number of fan blades |
9 |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Pump voltage |
12 V |
| Pump current |
290 mA |
| Fan voltage |
12 V |
| Fan current |
0.18 A |
| Fan power consumption |
2.16 W |
| Pump power consumption |
3.48 W |
| LED voltage |
5 V |
| LED power consumption (pump) |
1.5 W |
| LED power consumption (fan) |
3.5 W |
PACKAGING CONTENT
|
| Cables included |
3-pin, 4-pin |
| Package type |
Box |
| Mounting kit |
Yes |
| Screws included |
Yes |
| CPU socket spacer(s) |
Yes |
| CPU bracket(s) |
Yes |
PERFORMANCE
|
| Type |
Liquid cooling kit |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
66.23 cfm |
| Maximum air pressure |
3.27 mmH2O |
| Pump motor speed (max) |
3400 RPM |
| Pump motor speed (min) |
2500 RPM |
| Fan speed (max) |
2400 RPM |
| Fan speed (min) |
400 RPM |
| Bearing type |
Hydraulic |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
36.07 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Pump connector |
4-pin |
WEIGHT & DIMENSIONS
|
| Weight |
1.4 kg |
| Radiator width |
12 cm |
| Radiator depth |
28.2 cm |
| Radiator height |
2.7 cm |
| Tube length |
41 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
8 cm |
| Pump depth |
9 cm |
| Pump height |
6.3 cm |
