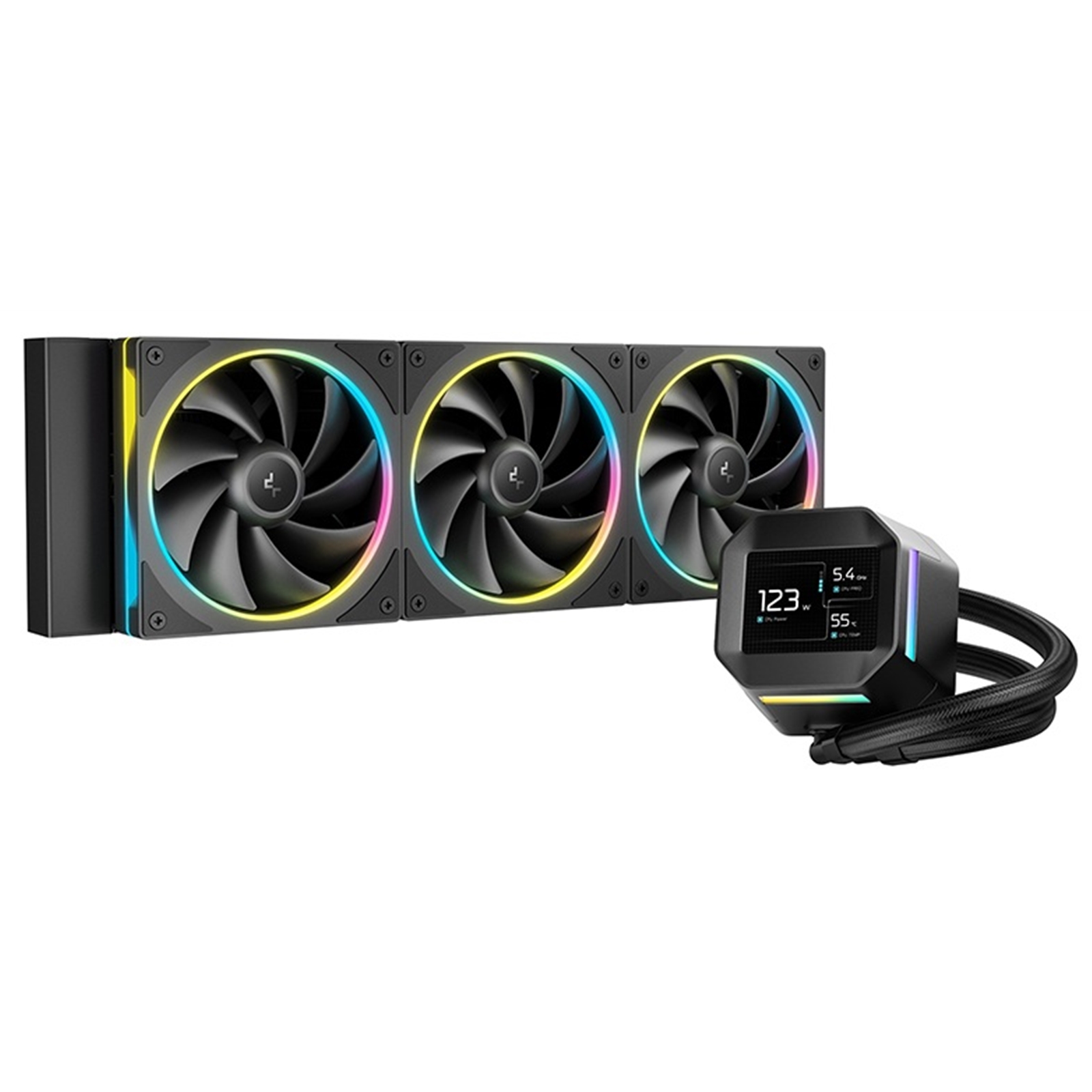

The DeepCool LM360 is a premium 360 mm all-in-one liquid CPU cooler designed for high-performance gaming systems, workstations, and overclocked builds. Featuring a large aluminium radiator and three high-efficiency FL12 SE 120 mm fans, it delivers powerful thermal performance while maintaining smooth, controlled acoustics.
At the centre of the system is DeepCool's advanced 6th-generation pump, operating between 2,500 and 3,600 RPM to ensure fast and reliable coolant circulation. The pump top includes a 2.4? IPS display capable of showing hardware stats, custom images, or MP4 animations, offering a highly customisable aesthetic upgrade for any build.
With full ARGB lighting on both the pump and fans, the LM360 integrates seamlessly with 5V-ARGB motherboard headers, allowing coordinated lighting effects across your system. DeepCool's patented Anti-Leak Technology actively regulates internal pressure to improve long-term safety and durability.
The LM360 offers wide compatibility with modern Intel and AMD platforms — including Intel LGA 1851 and 1700, and AMD AM5 — and includes a full mounting kit for straightforward installation. With its strong cooling capacity, vibrant ARGB illumination, and premium display interface, the LM360 is ideal for users demanding performance and style.
Full Specifications
Model / MPN:
LM360 (R-LM360-BKDMMC-1)
Type:
AIO (All-in-One) Liquid CPU Cooler
Supported Sockets:
Intel: LGA 1851, LGA 1700, LGA 1200, LGA 1151/1150/1155
AMD: AM5, AM4
Net Weight:
1,729 g
Radiator Dimensions:
402 X 120 X 27 mm (L X W X H)
Radiator Material:
Aluminium
Tubing Length:
410 mm
Pump Dimensions:
90 X 80 X 63 mm
Pump Speed (RPM):
2,500 – 3,600 RPM ±10%
Pump Connector:
4-pin PWM
Pump Rated Voltage:
12 V DC
Pump Rated Current:
0.29 – 0.34 A
Pump Power Consumption:
3.48 – 4.08 W (approx.)
Fans:
3 X 120 mm FL12 SE (120 X 120 X 25 mm)
Fan Speed:
400 – 2,400 RPM ±10%
Fan Airflow:
66.23 CFM per fan
Fan Air Pressure:
3.27 mmAq
Noise Level (Max):
36.07 dB(A)
Bearing Type:
Hydro (hydraulic) bearing
Fan Connector:
4-pin PWM
LED Type:
Addressable RGB (ARGB)
LED Connector:
3-pin (+5V-D-G)
LED Rated Voltage:
5 V DC
LED Power Consumption:
1.5 W (Pump) / approx. 3.5 W (Fans combined)
Display:
2.4? IPS screen, 320 X 240 resolution, supports MP4 video playback
Special Features:
Anti-Leak Technology (pressure regulation system)
Material (Block / Tubes):
Copper block, aluminium radiator
Colour / Finish:
Black
Warranty:
3 years
EAN / Barcode:
6933412729471
Warranty:
3 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Number of fans |
3 fan(s) |
| Display type |
IPS |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Illumination LED |
Yes |
| Number of fan blades |
9 |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Pump voltage |
12 V |
| Pump current |
290 mA |
| Fan voltage |
12 V |
| Fan current |
0.18 A |
| Fan power consumption |
2.16 W |
| Pump power consumption |
3.48 W |
| LED voltage |
5 V |
| LED power consumption (pump) |
1.5 W |
| LED power consumption (fan) |
3.5 W |
PACKAGING CONTENT
|
| Cables included |
3-pin, 4-pin |
| Package type |
Box |
| Mounting kit |
Yes |
| Screws included |
Yes |
| CPU socket spacer(s) |
Yes |
| CPU bracket(s) |
Yes |
PERFORMANCE
|
| Type |
Liquid cooling kit |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
66.23 cfm |
| Maximum air pressure |
3.27 mmH2O |
| Pump motor speed (max) |
3400 RPM |
| Pump motor speed (min) |
2500 RPM |
| Fan speed (max) |
2400 RPM |
| Fan speed (min) |
400 RPM |
| Bearing type |
Hydraulic |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
36.07 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Pump connector |
4-pin |
WEIGHT & DIMENSIONS
|
| Weight |
1.73 kg |
| Radiator width |
12 cm |
| Radiator depth |
40.2 cm |
| Radiator height |
2.7 cm |
| Tube length |
41 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
8 cm |
| Pump depth |
9 cm |
| Pump height |
6.3 cm |
