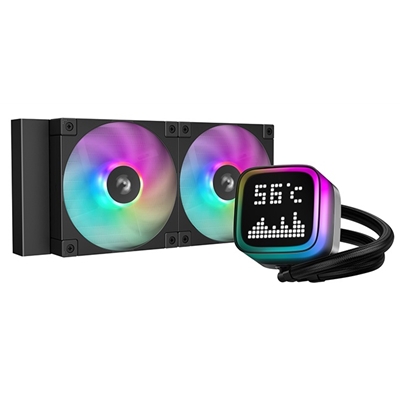

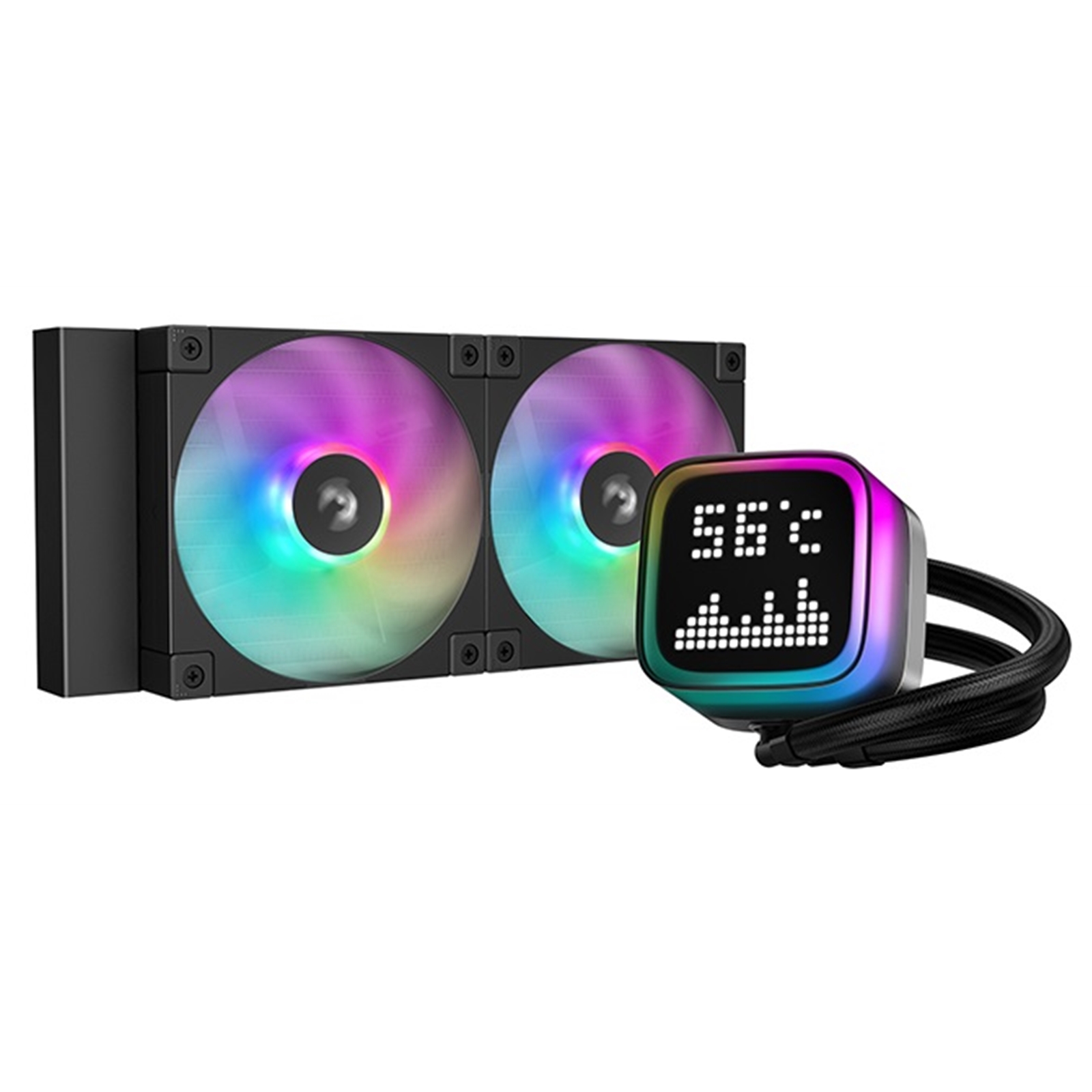

DeepCool LP240 Liquid Cooler Overview
The LP240 is the latest in DeepCool's acclaimed 5th generation lineup of liquid coolers, engineered for high-performance cooling and sleek customization. It combines cutting-edge thermal efficiency with user-friendly software and stylish aesthetics.
Key Features
Customizable Pixel Display
Transparent ARGB pump bezel with a dot-matrix LED screen.
Create custom pixel art using a 14x14 grid or choose from preset designs.
Matches DeepCool's clean, pixel-themed design language.
DeepCreative Control Software
Full control of the LP240 via the DeepCreative application.
View real-time system stats, manage compatible devices, and configure lighting.
Sync ARGB halo with motherboard or personalize the dot-matrix screen with single/dual parameter data.
5th Gen PRO Pump Technology
Features a high-performance 3-phase, 6-slot, 4-pole motor.
Operates at up to 3400 RPM for advanced CPU cooling.
Ideal for power-hungry modern CPUs.
FD12 ARGB PWM Fans
Includes 2 finely tuned FD12 fans with Hydro Bearings.
Strong airflow, low noise, and long-lasting durability.
Uses an 8-pin daisy-chain cable for simplified cable management.
Anti-Leak Technology
Patented system regulates and purges excess pressure.
Increases lifespan and reduces leakage risk.
Quick and Easy Installation
Universal mounting hardware for Intel and AMD platforms.
Balanced contact pressure for optimal thermal performance.
Everything you need is included in the box.
Specifications
Compatibility
Intel:
LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155
AMD:
AM5 / AM4
Cooler Dimensions
Radiator:
282 x 120 x 27 mm (L x W x H)
Pump:
91 x 78 x 63 mm
Tube Length:
410 mm
Net Weight:
1410 g
Pump Specifications
Speed:
3400 RPM ±10%
Connector:
3-pin
Voltage:
12 VDC
Current:
0.35 A
Power:
4.2 W
Fan Specifications
Dimensions:
120 x 120 x 25 mm
Speed:
600–2400 RPM ±10%
Airflow:
72.04 CFM
Air Pressure:
3.48 mmAq
Noise Level:
=38.71 dB(A)
Connector:
4-pin PWM
Bearing Type:
Hydro Bearing
Voltage:
12 VDC
Current:
0.22 A
Power:
2.64 W
ARGB & Display
LED Type:
Addressable RGB
LED Connector:
3-pin (+5V-D-G)
LED Voltage:
5 VDC
LED Power:
2.8 W (Pump) / 2.1 W (Fans)
Display:
LED Dot-Matrix Digital Display
Warranty:
5 Years Return To Base Warranty
|
DESIGN
|
| Material |
Aluminium |
| Product colour |
Black |
| Number of fans |
2 fan(s) |
| Display type |
LED |
| Fan connector |
4-pin |
| Illumination LED |
Yes |
| LED connector type |
3-pin |
PERFORMANCE
|
| Type |
All-in-one liquid cooler |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location |
Computer case, Processor |
| Maximum airflow |
72.04 cfm |
| Maximum air pressure |
3.48 mmH2O |
| Pump motor speed |
3400 RPM |
| Fan speed (max) |
2400 RPM |
| Fan speed (min) |
600 RPM |
| Bearing type |
Hydrodynamic bearing |
| Quantity per pack |
1 pc(s) |
| Fan noise level (min) |
38.71 dB |
| Pump noise level |
21 dB |
| Pump connector |
3-pin |
TECHNICAL DETAILS
|
| Warranty period |
5 year(s) |
WEIGHT & DIMENSIONS
|
| Weight |
1.42 kg |
| Package weight |
1.82 kg |
| Package depth |
439 mm |
| Package height |
191 mm |
| Package width |
159 mm |
| Radiator width |
22.8 cm |
| Radiator depth |
2.7 cm |
| Radiator height |
12 cm |
| Tube length |
41 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
9.1 cm |
| Pump depth |
6.3 cm |
| Pump height |
7.8 cm |
