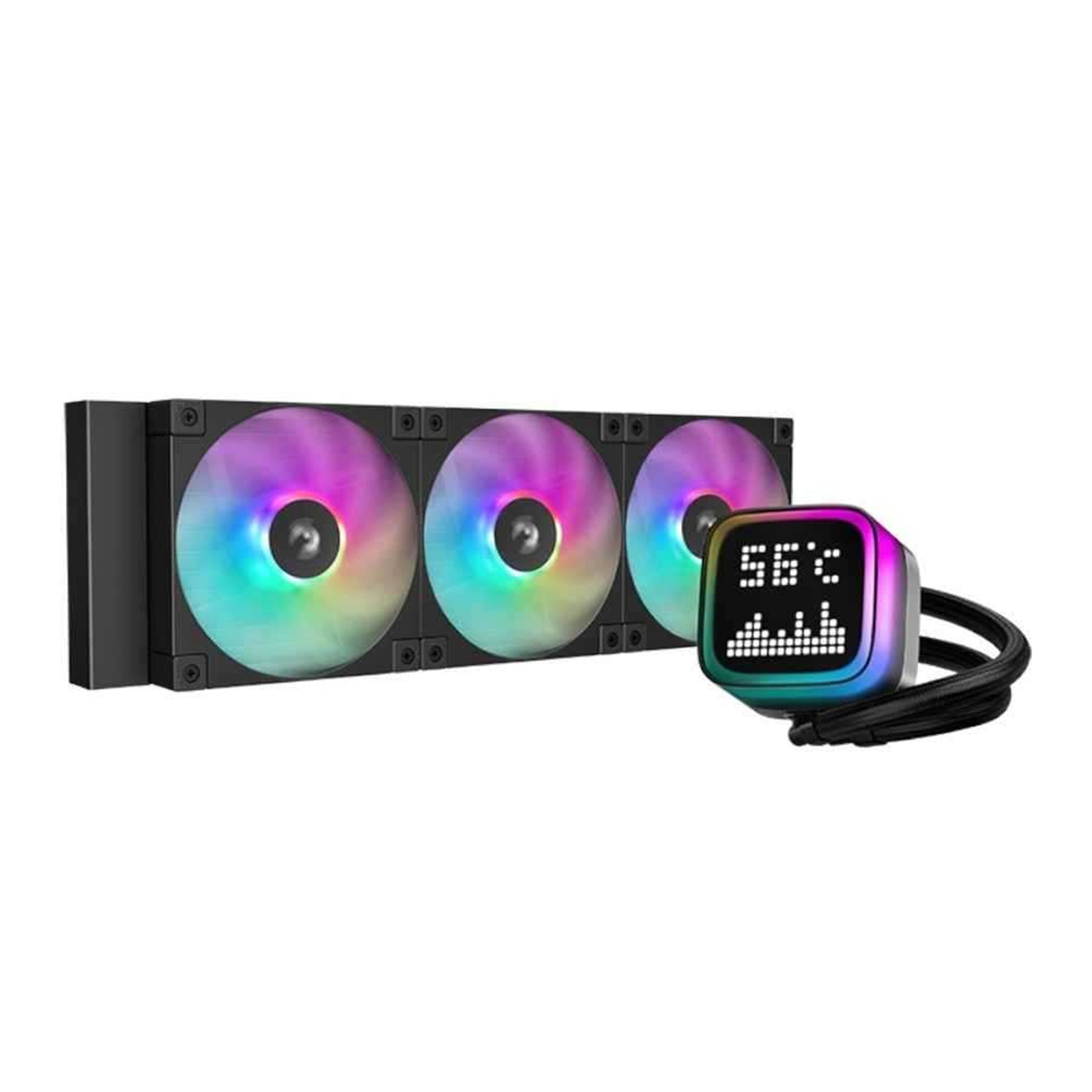

The DeepCool LP360 is a high-performance 360mm liquid CPU cooler designed to handle today's most demanding processors. It features DeepCool's latest 5th Gen water pump, three optimized FD12 ARGB PWM fans, and a visually striking transparent ARGB pump cover with a customizable 14×14 dot-matrix pixel display.
Using the integrated DeepCreative software, users can view real-time system statistics, personalize display graphics, or synchronize RGB effects with their motherboard. Built with Anti-Leak Technology, the LP360 enhances reliability by regulating internal pressure automatically. Whether you're an enthusiast, gamer, or content creator, the LP360 brings top-tier cooling with unique customization.
Key Features:
360mm Radiator: Maximized surface area for extreme cooling performance.
Pixel Display: Custom 14×14 dot-matrix screen for system stats or custom graphics.
DeepCreative Control: Full system monitoring, RGB control, and animation settings.
Next-Gen Pump: High-efficiency 3-phase, 6-slot, 4-pole motor (up to 3400 RPM).
FD12 ARGB Fans: Includes 3 high-performance 120mm PWM ARGB fans.
Anti-Leak Tech: Built-in valve regulates pressure to prevent leaks.
Compatibility:
Intel:
LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155
AMD:
AM5 / AM4
Radiator Specifications:
Dimensions:
402 × 120 × 27 mm (L × W × H)
Material:
Aluminum
Tube Length:
410 mm
Pump Specifications:
Dimensions:
91 × 78 × 63 mm (L × W × H)
Speed:
3400 RPM ±10%
Connector:
3-pin
Rated Voltage:
12 VDC
Rated Current:
0.35 A
Power Consumption:
4.2 W
Fan Specifications (3 × FD12 ARGB PWM):
Dimensions:
120 × 120 × 25 mm
Speed:
600–2400 RPM ±10%
Airflow:
72.04 CFM
Static Pressure:
3.48 mmAq
Noise Level:
=38.71 dB(A)
Connector:
4-pin PWM
Bearing Type:
Hydro Bearing
Rated Voltage:
12 VDC
Rated Current:
0.22 A
Power Consumption:
2.64 W per fan
ARGB & Display Specifications:
LED Type:
Addressable RGB
LED Connector:
3-pin (+5V-D-G)
LED Voltage:
5 VDC
LED Power:
2.8 W (Pump), 3.15 W total (3 Fans)
Display Type:
LED Dot-Matrix Digital Display
Software Support:
DeepCreative:
Customize lighting, monitor performance, and control pixel display.
Physical Specifications:
Net Weight:
1716 g
Color:
Black
Warranty:
Coverage:
5 Years
Warranty:
5 Years Return To Base Warranty
|
DESIGN
|
| Material |
Aluminium |
| Product colour |
Black |
| Number of fans |
3 fan(s) |
| Display type |
LED |
| Fan connector |
4-pin |
| Illumination LED |
Yes |
| LED connector type |
3-pin |
PERFORMANCE
|
| Type |
All-in-one liquid cooler |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location |
Computer case, Processor |
| Maximum airflow |
72.04 cfm |
| Maximum air pressure |
3.48 mmH2O |
| Pump motor speed |
3400 RPM |
| Fan speed (max) |
2400 RPM |
| Fan speed (min) |
600 RPM |
| Bearing type |
Hydrodynamic bearing |
| Quantity per pack |
1 pc(s) |
| Fan noise level (min) |
38.71 dB |
| Pump noise level |
21 dB |
| Pump connector |
3-pin |
TECHNICAL DETAILS
|
| Warranty period |
5 year(s) |
WEIGHT & DIMENSIONS
|
| Weight |
1.74 kg |
| Package weight |
2.23 kg |
| Package depth |
439 mm |
| Package height |
191 mm |
| Package width |
159 mm |
| Radiator width |
40.2 cm |
| Radiator depth |
2.7 cm |
| Radiator height |
12 cm |
| Tube length |
41 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
9.1 cm |
| Pump depth |
6.3 cm |
| Pump height |
7.8 cm |
