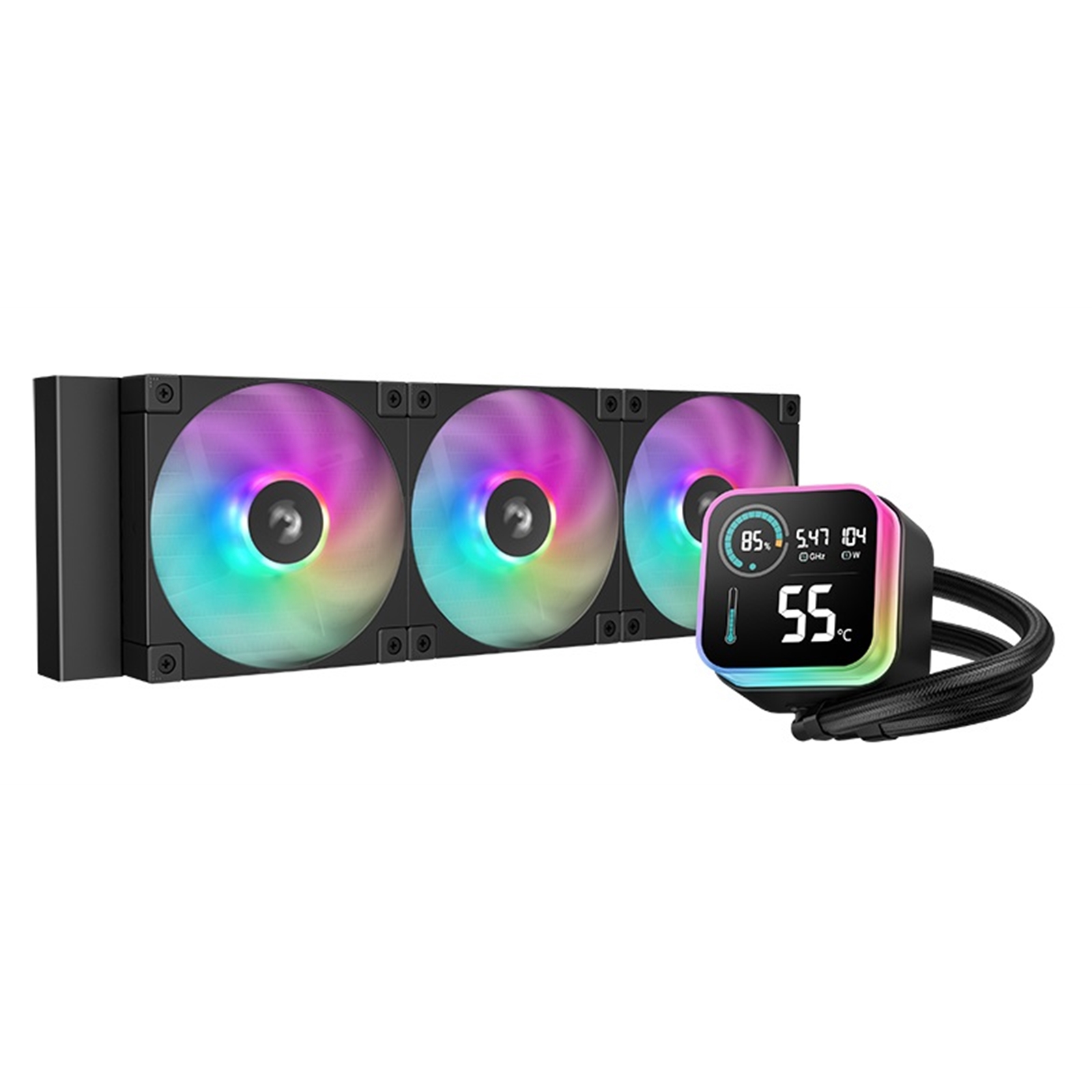

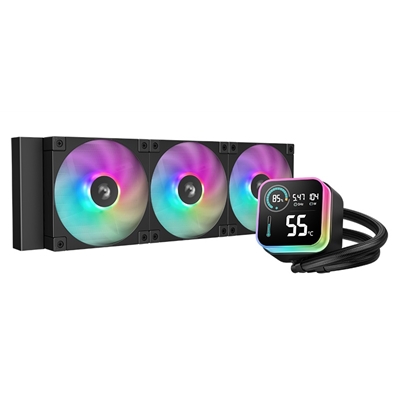

The LQ360 is a premium 360mm all-in-one liquid CPU cooler engineered for outstanding cooling performance and modern customization. With a high-efficiency pump, three optimized ARGB fans, and a Segment LCD display for system monitoring, it delivers excellent thermal performance and visual appeal.
Its advanced pump features a powerful 3-phase, 6-slot, 4-pole motor capable of speeds up to 3400 RPM, ensuring effective heat dissipation even under high CPU loads. The integrated Segment LCD display provides at-a-glance system metrics including CPU usage, frequency, TDP, and temperature, enhanced with color indicators for quick status checks.
The included customization software allows users to personalize the display and synchronize lighting effects with other RGB components. With its pressure-regulating anti-leak system, this cooler also offers added reliability and longevity.
Installation is streamlined with broad compatibility across the latest Intel and AMD platforms.
Key Features:
Segment LCD Display: Real-time display of CPU data including usage, frequency, temperature, and TDP
Custom Control Software: Customize the LCD screen and sync lighting with compatible devices
High-Performance Pump: Operates at 3400 RPM with a reliable motor structure
Triple ARGB Fans: Efficient airflow with hydro bearing and PWM control
Anti-Leak Technology: Internal valve maintains pressure to prevent leaks
Wide Compatibility: Works with the latest Intel and AMD CPU sockets
Compatibility:
Intel:
LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155
AMD:
AM5 / AM4
Specifications:
General:
Model Number:
R-LQ360-BKLSMW-G-1
Net Weight:
1840 g
Color:
Black
Radiator:
Dimensions:
402 × 120 × 27 mm (L × W × H)
Material:
Aluminum
Tube Length:
410 mm
Pump:
Dimensions:
89 × 76 × 64 mm
Speed:
3400 RPM ±10%
Connector:
3-pin
Voltage:
12 VDC
Current:
0.35 A
Power Consumption:
4.2 W
Fans (3 × ARGB PWM):
Dimensions:
120 × 120 × 25 mm
Speed:
600–2400 RPM ±10%
Airflow:
72.04 CFM
Static Pressure:
3.48 mmAq
Noise Level:
=38.71 dB(A)
Connector:
4-pin PWM
Bearing:
Hydro Bearing
Voltage:
12 VDC
Current:
0.22 A per fan
Power Consumption:
2.64 W per fan
LED & Display:
LED Type:
Addressable RGB
LED Connector:
3-pin (+5V-D-G)
LED Voltage:
5 VDC
LED Power:
2.4 W (Pump), 3.15 W total (3 Fans)
Display Type:
LED Digital Segment Display
Display Voltage:
5 VDC
Display Current:
0.08 A ±10%
Display Power Consumption:
0.4 W
Display Area:
53.9 × 49.15 mm
Package Contents:
Liquid CPU Cooler with Radiator
3 × 120mm ARGB PWM Fans
Mounting Kit for Intel and AMD Platforms
User Manual
Warranty:
Duration:
2 Years
Warranty:
2 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Number of fans |
3 fan(s) |
| Illumination colour |
Multi |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Illumination LED |
Yes |
| Number of fan blades |
9 |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Pump voltage |
12 V |
| Pump current |
350 mA |
| Fan voltage |
12 V |
| Fan current |
0.22 A |
| Fan power consumption |
2.64 W |
| Pump power consumption |
4.2 W |
| LED voltage |
5 V |
| LED power consumption (pump) |
2.4 W |
| LED power consumption (fan) |
3.15 W |
PACKAGING CONTENT
|
| Package type |
Box |
| Mounting kit |
Yes |
| Screws included |
Yes |
| CPU bracket(s) |
Yes |
PERFORMANCE
|
| Type |
Liquid cooling kit |
| Fan diameter |
12 cm |
| Supported processor sockets |
Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
72.04 cfm |
| Maximum air pressure |
3.48 mmH2O |
| Noise level (high speed) |
38.71 dB |
| Pump motor speed |
3400 RPM |
| Fan speed (max) |
2400 RPM |
| Fan speed (min) |
600 RPM |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
38.71 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Pump connector |
3-pin |
| Fan bearing technology |
Hydro bearing |
WEIGHT & DIMENSIONS
|
| Weight |
1.84 kg |
| Radiator width |
12 cm |
| Radiator depth |
40.2 cm |
| Radiator height |
2.7 cm |
| Tube length |
41 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
7.6 cm |
| Pump depth |
8.9 cm |
| Pump height |
6.4 cm |
