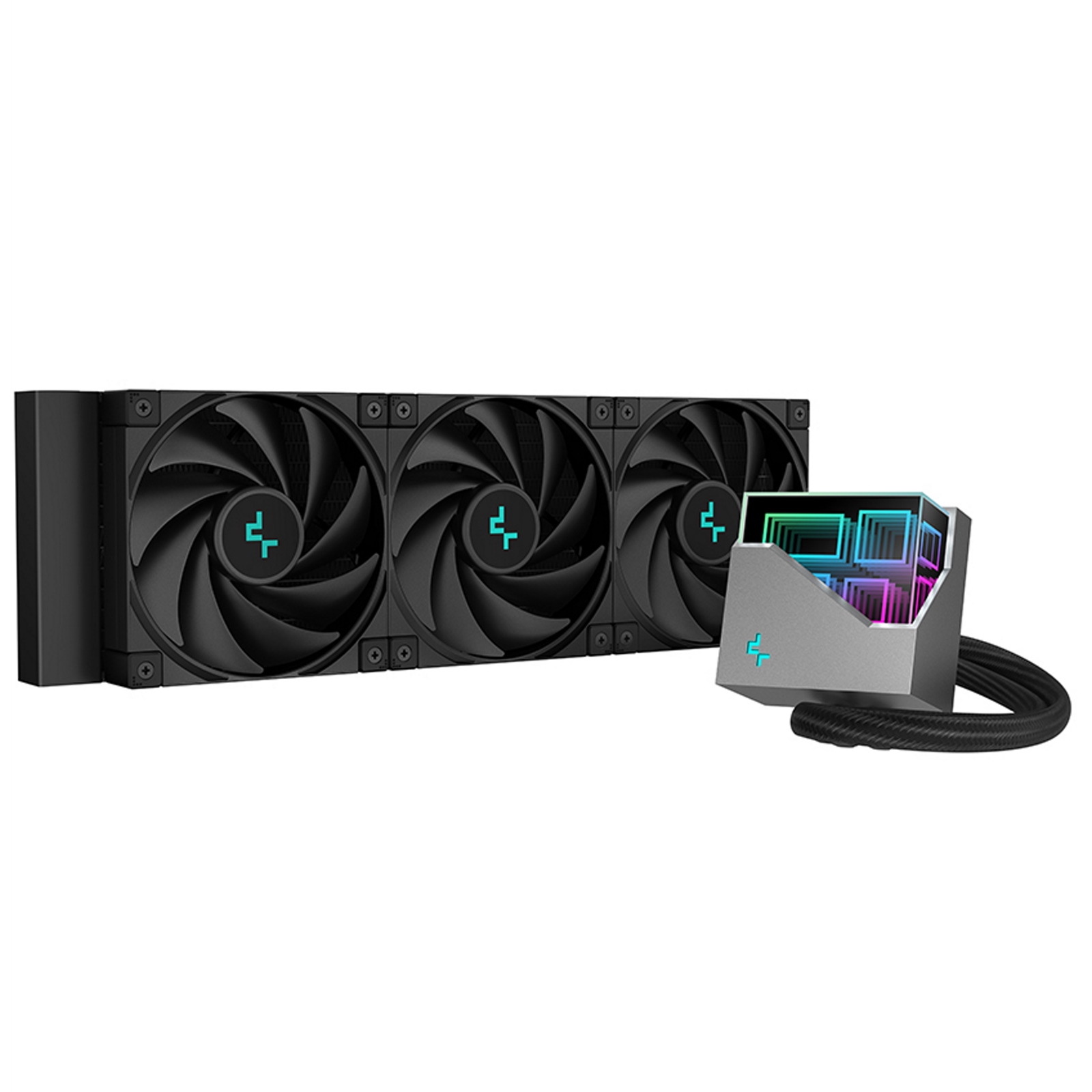

DeepCool LT720 AiO Liquid CPU Cooler, Universal Socket, 360mm Radiator, PWM 2250RPM FK120 Performance Black Fans, Addressable RGB LED Lighting Infinity Mirror Pump Head

Key Specifications
Product TypeLiquid CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed2250RPM
Radiator Size360mm
LED ColourARGB
/productImages/80/FADEE-LT720.JPG
/productImages/80/178340.JPG
/productImages/80/178341.JPG
/productImages/80/178342.JPG
/productImages/80/178343.JPG
/productImages/80/178344.JPG
Manufacturer : DEEPCOOL
EAN : 6933412727927
Manufacturer Part Code : R-LT720-BKAMNF-G-1
Weight : 2.65 kg
Login For Pricing

Key Specifications
Product TypeLiquid CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed2250RPM
Radiator Size360mm
LED ColourARGB
Manufacturer :
DEEPCOOL

EAN :
6933412727927

Manufacturer Part Code :
R-LT720-BKAMNF-G-1

Weight :
2.65 kg
Recommended Products
1286Processors
See details
1282Case Cooling
See details
1289Motherboards
See details

LT720
The DeepCool LT720 high-performance liquid CPU cooler provides strong heat dissipation power with a 360mm radiator, three precision-tuned FK120 fans, and a multidimensional infinity mirror top cap.

Compatible with...
- Asus Aura Sync
- Razer Chroma Sync
- Gigabyte RGB Fusion
- MSI Mystic Light Sync
- ASRock Polychrome Sync

BREAK OPEN ANOTHER DIMENSION
A three-dimensional infinity mirror surface is revealed underneath the top cover that offers a new visual experience through a multi-faceted geometric reflection.

A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
- 1: Improved microchannel design ensures optimal coolant flow.
- 2: Powerful three-phase drive motor up to 3100 RPM.
- 3: Thick solid copper base with a seamless match.

EXTREMELY POWERFUL
Maximize cooling potential with DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long-term reliability.
- 500-2250 RPM: Dynamic PWM Range
- 85.85 CFM: Supreme Airflow
- 3.27 mmAq: High Static Pressure
- =32.9 dB(A): Full Load Noise

SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects that match the rest of your setup.

SIMPLE AND SECURE
The installation process is intuitive and simple to use ensuring a proper fit and pressure match on any platform. The newly designed brackets are blacked out and stealthy hidden when installed into your system.

Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: sTRX4 / sTR4 / AM5 / AM4

Net Weight
1856 g

Radiator Dimensions
402 x 120 x 27 mm

Radiator Material
Aluminum

Tube length
410 mm

Pump Dimensions
94 x 80 x 68 mm

Pump Speed
3100 RPM±10%

Pump Noise
19 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.38 A

Pump Power Consumption
4.56 W

Fan Dimensions
120 x 120 x 25 mm

Fan Speed
500~2250 RPM±10%

Fan Airflow
85.85 CFM

Fan Air Pressure
3.27 mmAq

Fan Noise
=32.9 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.22 A

Fan Power Consumption
2.64 W

LED Type
Addressable RGB LED

LED Connector
3-pin (+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
3.15 W (PUMP)
Manufacturer's Website:
Warranty:
5 Years Return To Base Warranty
DESIGN
Product colour Black
Number of fans 3 fan(s)
Illumination colour Multi
Base plate material Copper
Fan connector 4-pin
Radiator material Aluminum
Illumination LED Y
LED connector type 3-pin
ENERGY MANAGEMENT
Pump voltage 12 V
Pump current 0.38 mA
Fan voltage 12 V
Fan current 0.22 A
Pump power consumption 4.56 W
LED voltage 4 V
LED power consumption (pump) 3.15 W
LED power consumption (fan) 2.64 W
PERFORMANCE
Type All-in-one liquid cooler
Fan diameter 12 cm
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4
Suitable location Processor
Pump motor speed (max) 3100 RPM
Fan speed (max) 2250 RPM
Fan speed (min) 500 RPM
Fan noise level (max) 32.9 dB
Pump noise level 19 dB
Pump connector 3-pin
Fan static pressure 3.27 mmH2O
Fan bearing technology Fluid Dynamic Bearing (FDB)
WEIGHT & DIMENSIONS
Weight 1.86 kg
Radiator width 12 cm
Radiator depth 40.2 cm
Radiator height 2.7 cm
Tube length 41 cm
Fan dimensions (W x D x H) 120 x 120 x 25 mm
Pump width 9.4 cm
Pump depth 8 cm
Pump height 6.8 cm
