Target Components

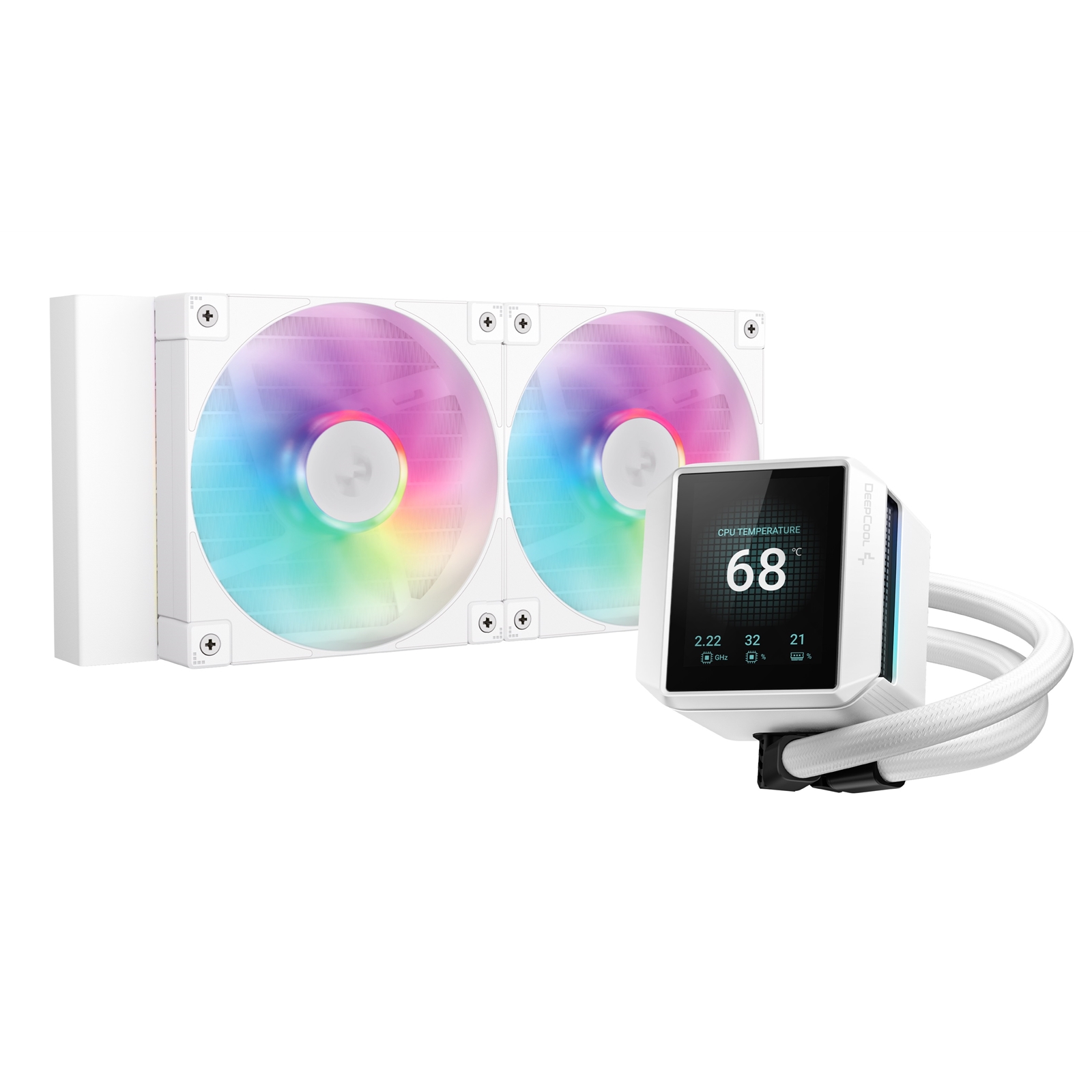

The DeepCool Mystique 240 WH ARGB (MPN: R-LX240-WHDSNMCP-G-1) is a high-performance liquid CPU cooler designed to provide efficient cooling for modern, power-hungry CPUs. It features a customizable 2.83-inch TFT LCD screen that allows users to display personalized images and animated GIFs, adding a unique touch to their PC builds.

Description
The Mystique 240 WH ARGB is part of Deep Cool's flagship line of liquid coolers, known for their advanced cooling technology and aesthetic customization options. The cooler is equipped with vivid ARGB fans that enhance the visual appeal of your system. The 240mm radiator ensures effective heat dissipation, making it suitable for high-performance gaming and overclocking.

Full Specifications
Radiator Dimensions:
282 × 120 × 27 mm (L × W × H)

Radiator Material:
Aluminum

Tube Length:
410 mm

Pump Dimensions:
93 × 77 × 66 mm (L × W × H)

Pump Speed:
3400 RPM ±10%

Pump Connector:
3-pin

Pump Rated Voltage:
12 VDC

Pump Rated Current:
0.35 A

Pump Power Consumption:
4.2 W

Fan Dimensions:
120 × 120 × 25 mm (L × W × H)

Fan Speed:
600~2400 RPM ±10%

Fan Airflow:
72.04 CFM

Fan Air Pressure:
3.48 mmAq

Fan Noise:
=38.71 dB (A)

Fan Connector:
4-pin PWM

Bearing Type:
Hydro Bearing

Fan Rated Voltage:
12 VDC

Fan Rated Current:
0.22 A

Fan Power Consumption:
2.64 W

LED Type:
Addressable RGB LED

LED Connector:
3-pin (+5V-D-G)

LED Rated Voltage:
5 VDC

LED Power Consumption:
2.45 W (Pump) / 2.1 W (Fan ×2)

Display Specifications:
2.83 inch 480 × 640 TFT LCD

This cooler is compatible with a wide range of Intel and AMD sockets, making it a versatile choice for various system configurations.
