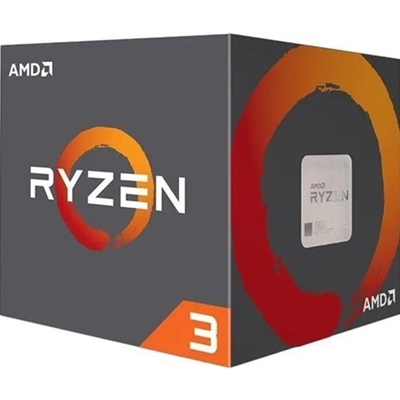

AMD Ryzen 3 4300G AM4 Processor
Take your computing experience to the next level with the AMD Ryzen 3 4300G. With Socket AM4 compatibility, this processor uses the Zen 2 (Renoir) architecture and features four cores that can execute up to eight threads thanks to AMD Simultaneous Multithreading (SMT). The processor has a default operating frequency of 3.8 GHz, which can be boosted up to 4 GHz depending on the workload, and comes with 4MB of L3 cache to enhance performance.
SMOOTH AND RESPONSIVE
The Ryzen 3 4300G is built on a 7 nm production node, with 9,800 million transistors, and its unlocked multiplier simplifies the overclocking process. The processor consumes a typical amount of power for a modern PC, with a TDP of 65 W, and supports DDR4 memory with a dual-channel interface at a maximum supported speed of 3200 MHz. The Ryzen 3 4300G uses a PCI-Express Gen 3 connection to communicate with other components in the system, and features the Radeon Vega 6 integrated graphics solution, ensuring smooth and responsive visuals. Whether you're gaming, streaming, or working on complex projects, the AMD Ryzen 3 4300G is a reliable and efficient processor that can handle it all.
Specifications
Platform
Desktop
Product Family
MD Ryzen Processors
Product Line
AMD Ryzen 3 4000 G-Series Desktop Processors with Radeon Graphics
# of CPU Cores
4
# of Threads
8
Max. Boost Clock
Up to 4.0GHz
Base Clock
3.8GHz
L1 Cache
256KB
L2 Cache
2MB
L3 Cache
4MB
Default TD
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
AM4
Max. Operating Temperature (Tjmax)
95°C
OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express Version
PCIe 3.0
System Memory Type
DDR4
Memory Channels
2
Graphics Capabilities
Graphics Model
Radeon Graphics
Graphics Core Count
6
Graphics Frequency
1700 MHz
Warranty:
3 Years Return to Manufacturer Warranty www.amd.com/warranty
|
FEATURES
|
| PCI Express slots version |
3.0 |
| Market segment |
Desktop |
GRAPHICS
|
| On-board graphics card model |
AMD Radeon Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| On-board graphics card base frequency |
1700 MHz |
| Discrete graphics card |
No |
MEMORY
|
| Memory channels |
Dual-channel |
| Memory types supported by processor |
DDR4-SDRAM |
| Memory clock speeds supported by processor |
3200 MHz |
PROCESSOR
|
| Processor model |
4300G |
| Processor manufacturer |
AMD |
| Processor lithography |
7 nm |
| Processor family |
AMD Ryzen™ 3 |
| Box |
Yes |
| Processor socket |
Socket AM4 |
| Processor cores |
4 |
| Processor threads |
8 |
| Processor operating modes |
32-bit, 64-bit |
| Processor boost frequency |
4 GHz |
| Component for |
PC |
| Processor cache |
4 MB |
| Thermal Design Power (TDP) |
65 W |
| Configurable TDP-down |
45 W |
| Processor cache type |
L3 |
| Configurable TDP-up |
65 W |
| Cooler included |
No |
| Processor base frequency |
3.8 GHz |
| Processor generation |
AMD Ryzen 4000 Series |
