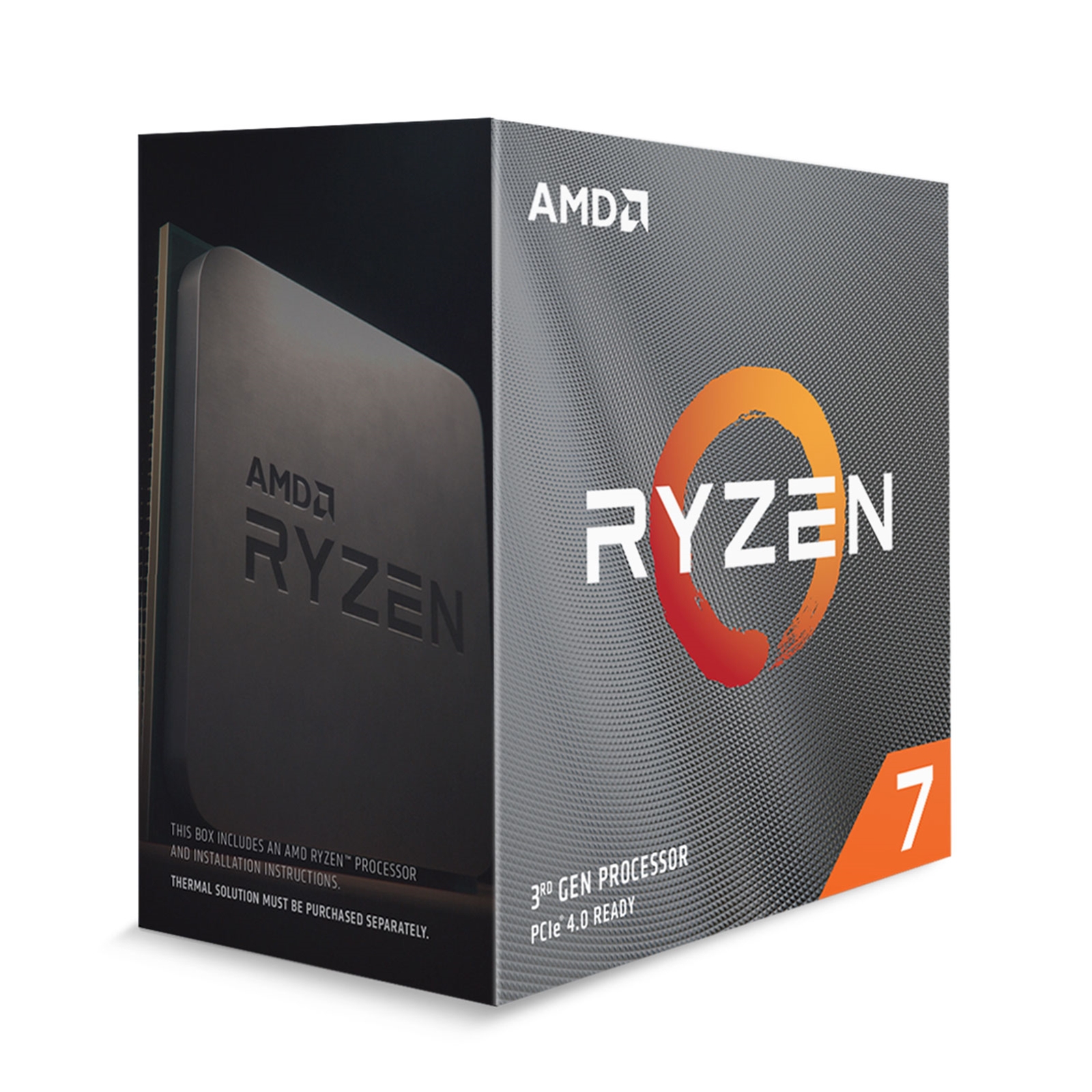

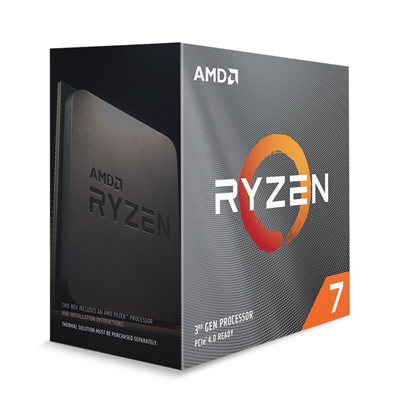

AMD Ryzen 7 5700X 8 Core 16 Thread AM4 Socket Overclockable Processor

CPU Type
AMD Ryzen 7

CPU Model
5700X

Core Name
Zen 3

Socket
AM4

CPU Size
7nm

Number of Cores
8

Number of Threads
16

Clock Speed
3.4GHz

Turbo Speed
4.6GHz

Unlocked Core Multiplier
Yes

L2 Cache
4MB

L3 Cache
32MB

Max TDP
65W

Processor Graphics
N

Graphics Frequency
N/A

Graphics Model
N/A

Graphics Core Count
N/A

System Memory

System Memory Specification
Up to 3200MHz

System Memory Type
DDR4

Memory Channels
2

Heatsink
N/A

Max Temps
90°C

Packaging
Retail

Manufacturer's Website:

www.amd.co.uk

Warranty:

AMD Processors in a box (PIB): 3 Year Limited Manufacturer Warranty.

Coverage

Year 1: Return to Target or AMD for warranty service.

Years 2-3: Warranty service provided directly by AMD

AMD Warranty Support

AMD Warranty Portal: https://www.amd.com/en/registration/warranty-services-portal.html

Please Note: First-time users must create an AMD account to access warranty services.

AMD Help & Support: https://www.amd.com/en/support.html

Required Documentation for AMD Warranty Claims

1. Product details including serial number and model number.

2. Clear explanation of the problem you're experiencing

3. Proof of purchase (receipt or invoice).

4. Photo of the CPU

FEATURES
PCI Express slots version	4.0
Market segment	Desktop
Harmonized System (HS) code	85423119
GRAPHICS
On-board graphics card model	Not available
Discrete graphics card model	Not available
On-board graphics card	No
Discrete graphics card	No
LOGISTICS DATA
Country of origin	China
Harmonized System (HS) code	85423119
MEMORY
ECC	Yes
Non-ECC	Yes
Memory channels	Dual-channel
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2667,2933,3200 MHz
PACKAGING DATA
Package weight	0.12 g
Package weight	120 g
Package type	Box
PROCESSOR
Processor model	5700X
Processor manufacturer	AMD
Processor lithography	7 nm
Processor family	AMD Ryzen™ 7
Box	Yes
Processor socket	Socket AM4
Package type	Box
Processor cores	8
Processor threads	16
Processor operating modes	64-bit
Processor boost frequency	4.6 GHz
Processor cache	32 MB
Thermal Design Power (TDP)	65 W
Processor cache type	L3
Cooler included	No
Processor base frequency	3.4 GHz
Processor generation	AMD Ryzen 5000 Series
PROCESSOR SPECIAL FEATURES
Intel� Hyper Threading Technology (Intel� HT Technology)	No
WEIGHT & DIMENSIONS
Weight	0.12 g
Weight	120 g
Height	134 mm
Width	6.8 mm
Width	68 mm
Depth	134 mm
