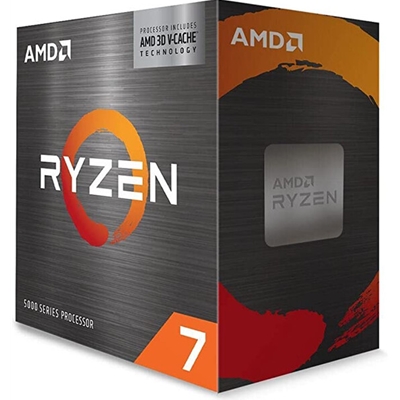

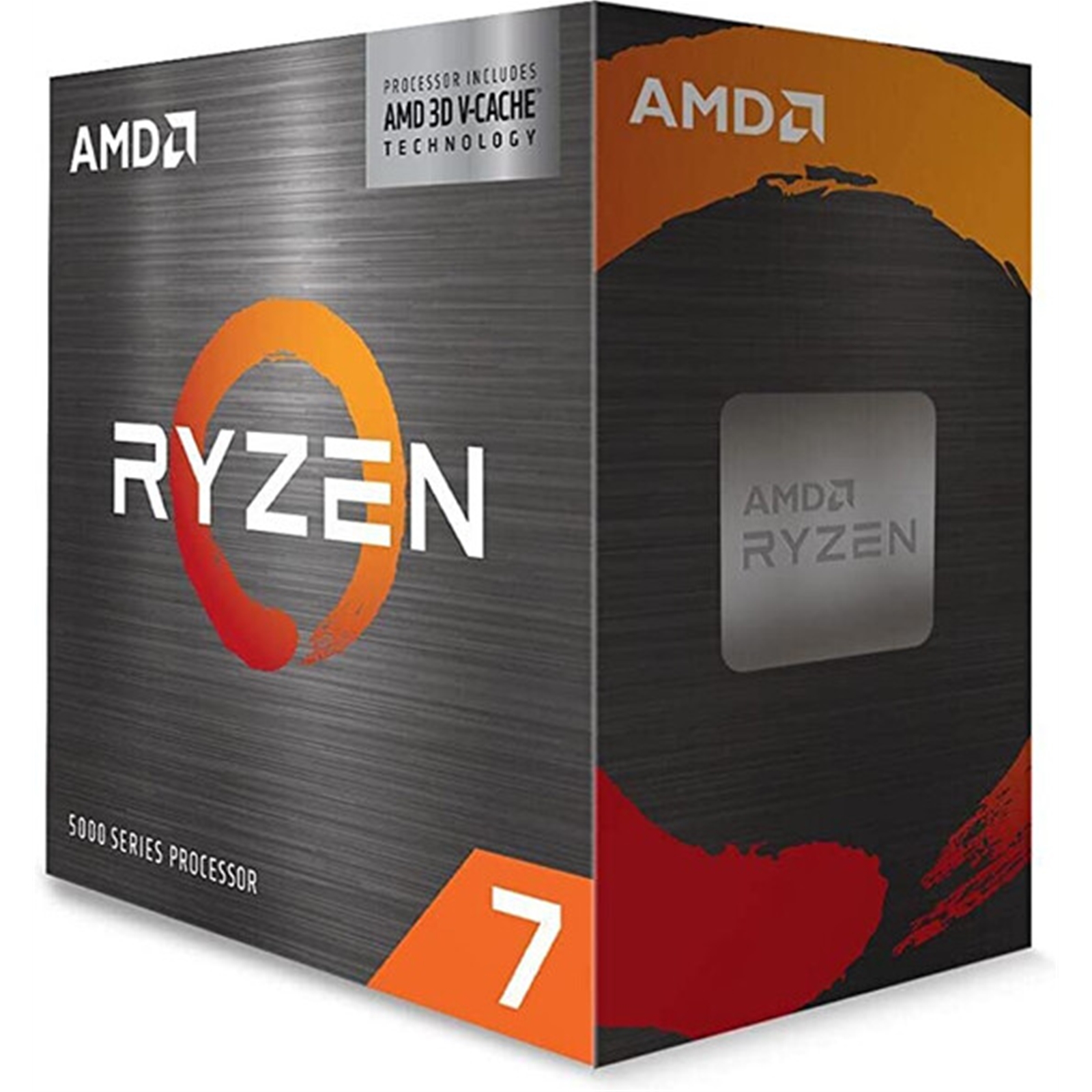

Unleash Powerhouse Performance: AMD Ryzen 7 5700X3D 3.0GHz 8 Core AM4 Processor
Elevate your computing prowess with the AMD Ryzen 7 5700X3D processor. Boasting a formidable 3.0GHz base clock and a dynamic 8-core configuration, this AM4 processor sets the stage for exceptional performance. With a robust 16 threads and a swift 4.1GHz boost clock, the Ryzen 7 5700X3D delivers responsive multitasking and an enhanced computing experience.

Efficient Multitasking Mastery: 16 Threads and 4.1GHz Boost
Experience multitasking like never before with the AMD Ryzen 7 5700X3D's 16 threads, effortlessly handling a multitude of tasks. The impressive 4.1GHz boost clock ensures swift responsiveness, making it well-suited for demanding applications, content creation, and seamless multitasking.

Upgrade to the AMD Ryzen 7 5700X3D for a processor that combines raw power and efficiency. Crafted to meet the demands of modern computing, this processor delivers a seamless and immersive user experience, redefining what is possible in high-performance computing.


Specifications

General Specifications

Platform:
Boxed Processor

Market Segment:
Enthusiast Desktop

Product Family:
AMD Ryzen™ Processors

Product Line:
AMD Ryzen™ 7 Desktop Processors

Consumer Use:
Yes

Commercial Use:
No

Regional Availability:
Global, China, NA, EMEA, APJ, LATAM

Former Codename:
"Vermeer"

Architecture:
"Zen 3"

# of CPU Cores:
8

Multithreading (SMT):
Yes

# of Threads:
16

Max. Boost Clock:
Up to 4.1GHz

Base Clock:
3.0GHz

L1 Cache:
512KB

L2 Cache:
4MB

L3 Cache:
96MB

Default TDP:
105W

Processor Technology for CPU Cores:
TSMC 7nm FinFET

Processor Technology for I/O Die:
12nm (Globalfoundries)

CPU Compute Die (CCD) Size:
74mm²

I/O Die (IOD) Size:
125mm²

Package Die Count:
2

CPU Socket:
AM4

Socket Count:
1P

Supporting Chipsets:
X570
X470
B550
B450
A520

CPU Boost Technology:
Precision Boost 2

Instruction Set:
x86-64

Supported Extensions:
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB):
Not Included

Max. Operating Temperature (Tjmax):
90°C

Launch Date:
1/8/2024

*OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support:
Yes

Native USB 3.2 Gen 2 (10Gbps) Ports:
4

Native USB 3.2 Gen 1 (5Gbps) Ports:
0

Native USB 2.0 (480Mbps) Ports:
0

Native SATA Ports:
2

PCI Express® Version:
PCIe 4.0

Native PCIe® Lanes (Total/Usable):
24 / 20

Additional Usable PCIe Lanes from Motherboard
AMD X570
16x Gen 4

AMD X470
2x Gen 3
8x Gen 2

NVMe Support:
Boot, RAID0, RAID1, RAID10

System Memory Type:
DDR4

Memory Channels:
2

Max. Memory:
128GB

System Memory Subtype:
UDIMM

Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

ECC Support:
Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics:
No

Graphics Model:
Discrete Graphics Card Required
