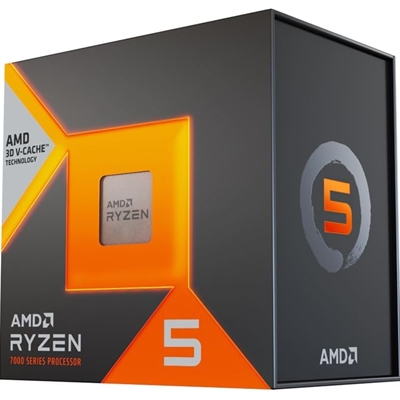

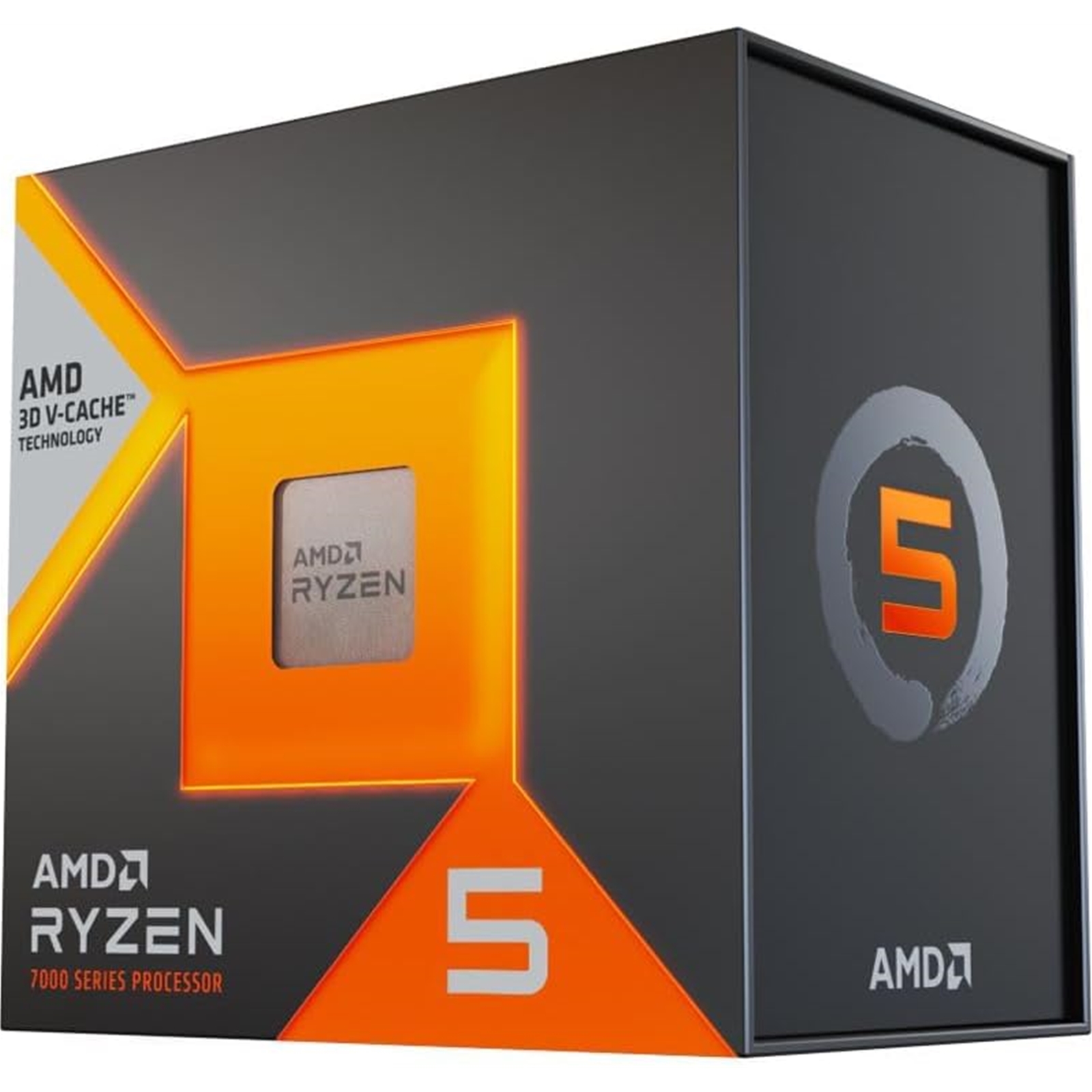

AMD Ryzen 5 7500X3D Desktop Processor

General Specifications

Name
AMD Ryzen 5 7500X3D

Family
Ryzen

Series
Ryzen 7000 Series

Form Factor
Desktops, Boxed Processor

Market Segment
Enthusiast Desktop

AMD PRO Technologies
No

Regional Availability
NA , EMEA

Former Codename
Raphael AM5

Processor Architecture
Zen 4

# of CPU Cores
6

Multithreading (SMT)
Yes

# of Threads
12

Max. Boost Clock
Up to 4.5 GHz

4 GHz

L1 Cache
384 KB

L2 Cache
6 MB

3 Cache
96 MB

Default TDP
65W

Processor Technology for CPU Cores
TSMC 5nm FinFET

Processor Technology for I/O Die
TSMC 6nm FinFET

CPU Compute Die (CCD) Size
71mm²

I/O Die (IOD) Size
122mm²

Package Die Count
2

AMD EXPO Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Yes

Yes

CPU Socket
AM5

Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)
Not Included

Recommended Cooler
Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
89C

*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps)
4

Native USB 3.2 Gen 1 (5Gbps)
0

Native USB 2.0 (480Mbps)
1

PCI Express Version
PCIe 5.0

Native PCIe Lanes (Total/Usable)
28 , 24

NVMe Support
Boot , RAID0 , RAID1 , RAID10

System Memory Type
DDR5

Memory Channels
2

Max. Memory
128 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

ECC Support
Yes (Requires mobo support)

Graphics Capabilities

Graphics Model
AMD Radeon Graphics

Graphics Core Count
2

Graphics Frequency
2200 MHz

USB Type-C DisplayPort Alternate Mode
Yes

Key Features

Supported Technologies
AMD EXPO Technology , AMD Ryzen Technologies

Manufacturer's Website:

www.amd.co.uk

Warranty:

AMD Processors in a box (PIB): 3 Year Limited Manufacturer Warranty.

Coverage

Year 1: Return to Target or AMD for warranty service.

Years 2-3: Warranty service provided directly by AMD

AMD Warranty Support

AMD Warranty Portal: https://www.amd.com/en/registration/warranty-services-portal.html

Please Note: First-time users must create an AMD account to access warranty services.

AMD Help & Support: https://www.amd.com/en/support.html

Required Documentation for AMD Warranty Claims

1. Product details including serial number and model number.

2. Clear explanation of the problem you're experiencing

3. Proof of purchase (receipt or invoice).

4. Photo of the CPU

FEATURES
PCI Express slots version	5.0
Maximum number of PCI Express lanes	28
Market segment	Desktop
GRAPHICS
On-board graphics card model	AMD Radeon
Discrete graphics card model	Not available
On-board graphics card	Yes
Discrete graphics card	No
MEMORY
ECC	Yes
Non-ECC	Yes
Memory channels	Dual-channel
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	3600,5200 MHz
OTHER FEATURES
L1 cache	0.384 MB
L2 cache	6144 KB
PACKAGING DATA
Package type	Box
PROCESSOR
Processor model	7500X3D
Processor manufacturer	AMD
Processor lithography	5 nm
Processor family	AMD Ryzen™ 5
Processor socket	Socket AM5
Package type	Box
Processor cores	6
Processor threads	12
Processor operating modes	64-bit
Processor boost frequency	4.5 GHz
Processor cache	96 MB
Thermal Design Power (TDP)	65 W
Processor codename	Raphael AM5
Processor cache type	L3
Cooler included	No
Generation	Zen 4
Processor base frequency	4 GHz
Processor generation	AMD Ryzen 7000 Series
