Target Components Ltd

CPU Type

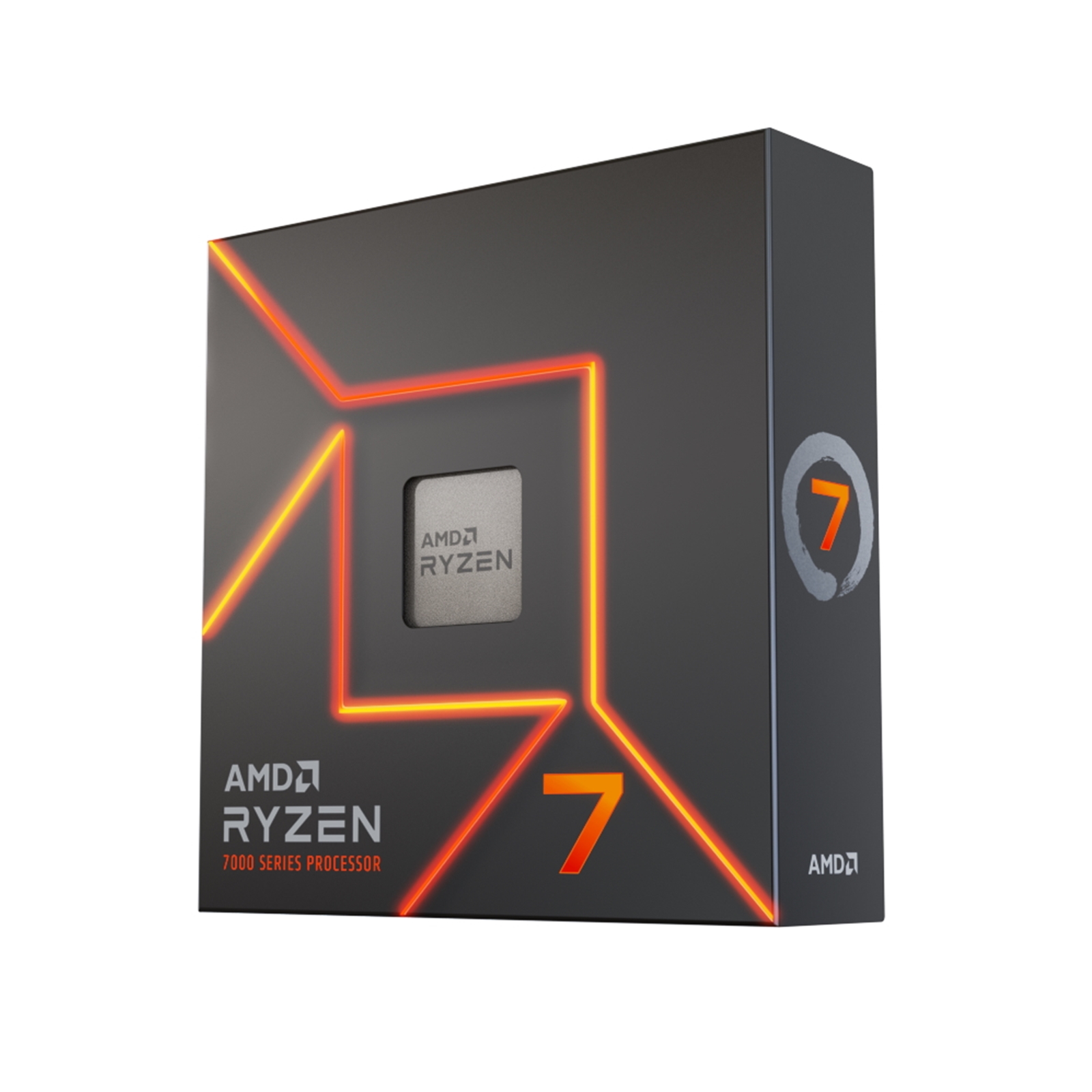

AMD Ryzen 7

CPU Model
7700X
100-100000591WOF

Core Name
Zen 4

Socket
AM5

CPU Size
TSMC 5nm FinFET

Number of Cores
8

Number of Threads
16

Clock Speed
4.5GHz

Turbo Speed
5.4GHz

Unlocked Core Multiplier
Yes

Processor Graphics
Y

GPU Core Speed
2200 MHz

L1 Cache
N/A

L2 Cache
8MB

L3 Cache
32MB

Max TDP
105W

Heatsink
No

Packaging
Retail

Manufacturer's Website:

www.amd.co.uk

Warranty:

AMD Processors in a box (PIB): 3 Year Limited Manufacturer Warranty.

Coverage

Year 1: Return to Target or AMD for warranty service.

Years 2-3: Warranty service provided directly by AMD

AMD Warranty Support

AMD Warranty Portal: https://www.amd.com/en/registration/warranty-services-portal.html

Please Note: First-time users must create an AMD account to access warranty services.

AMD Help & Support: https://www.amd.com/en/support.html

Required Documentation for AMD Warranty Claims

1. Product details including serial number and model number.

2. Clear explanation of the problem you're experiencing

3. Proof of purchase (receipt or invoice).

4. Photo of the CPU

FEATURES
Compatible operating systems	Windows 11 - 64-Bit, Windows 10 - 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit
PCI Express slots version	5.0
GRAPHICS
On-board graphics card model	AMD Radeon Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	2200 MHz
Discrete graphics card	No
I/O CONFIGURATION
USB version	2.0/3.2 Gen 2 (3.1 Gen 2)
USB ports quantity	5
MEMORY
ECC	Yes
Non-ECC	Yes
Memory channels	Dual-channel
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	3600,5200 MHz
OPERATIONAL CONDITIONS
Maximum operating temperature	95 °C
OTHER FEATURES
L1 cache	0.512 MB
L2 cache	8000 KB
PACKAGING DATA
Package type	Box
PROCESSOR
Processor model	7700X
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Box	Yes
Processor socket	Socket AM5
Package type	Box
Processor cores	8
Processor threads	16
Processor operating modes	64-bit
Processor boost frequency	5.4 GHz
Processor cache	32 MB
Thermal Design Power (TDP)	105 W
Processor cache type	L3
Cooler included	No
Processor base frequency	4.5 GHz
Processor generation	AMD Ryzen 7000 Series
PROCESSOR SPECIAL FEATURES
Intel� Hyper Threading Technology (Intel� HT Technology)	No
TECHNICAL DETAILS
Launch date	9/15/2022
