| Socket | 1700 |
| On-Chip Graphics | Yes |
| Speed | 2.5GHz |
| Core Quantity | 6 |
| Prefix | Core i5 |
| Socket | 1700 |
| On-Chip Graphics | Yes |
| Speed | 2.5GHz |
| Core Quantity | 6 |
| Prefix | Core i5 |
| FEATURES | |
|---|---|
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| PCI Express slots version | 5.0, 4.0 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Maximum number of PCI Express lanes | 20 |
| Market segment | Desktop |
| Harmonized System (HS) code | 85423119 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G167599 |
| Use conditions | PC/Client/Tablet |
| Direct Media Interface (DMI) Revision | 4.0 | GRAPHICS |
| On-board graphics card model | Intel UHD Graphics 730 |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1450 MHz |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| Number of execution units | 24 |
| On-board graphics card ID | 0x4692 / 0x4682 |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| Discrete graphics card | No |
| Multi-Format Codec Engines | 1 | LOGISTICS DATA |
| Country of origin | Malaysia |
| Harmonized System (HS) code | 85423119 | MEMORY |
| Non-ECC | Yes |
| Memory bandwidth (max) | 76.8 GB/s |
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM | OPERATIONAL CONDITIONS |
| Tjunction | 100 °C | OTHER FEATURES |
| Maximum internal memory | 128 GB |
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 | PACKAGING DATA |
| Package weight | 0.458 g |
| Package weight | 458 g |

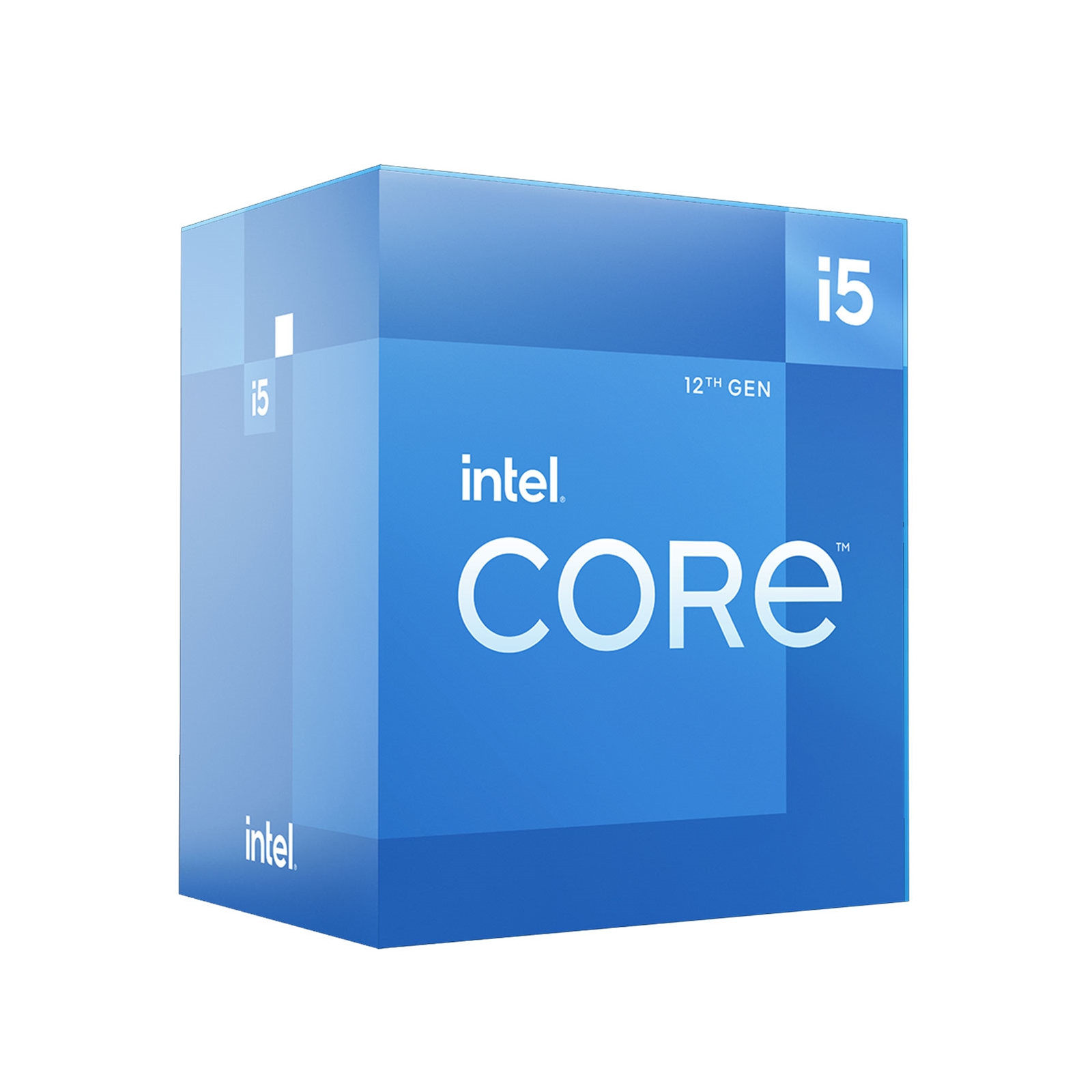

| Package type | Retail box | PROCESSOR |
| Processor model | i5-12400 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Box | Yes |
| Processor socket | LGA 1700 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4.4 GHz |
| Processor cache | 18 MB |
| Bus type | DMI4 |
| Processor codename | Alder Lake |
| Processor cache type | Smart Cache |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor ARK ID | 134586 |
| Cooler included | Yes |
| Performance cores | 6 |
| Maximum number of DMI lanes | 8 |
| Processor base power | 65 W |
| Maximum turbo power | 117 W |
| Performance-core base frequency | 2.5 GHz |
| Performance-core boost frequency | 4.4 GHz |
| Processor generation | 12th gen Intel® Core™ i5 | PROCESSOR SPECIAL FEATURES |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel 64 | Yes |
| Intel® OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Optane? Memory Ready | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Thread Director | No |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Standard Manageability (ISM) | Yes | TECHNICAL DETAILS |
| OpenCL version | 2.1 |
| Status | Launched |
| Launch date | Q1''22 |
| Target market | Gaming | WEIGHT & DIMENSIONS |
| Weight | 0.35 g |
| Weight | 350 g |
| Height | 10.5 mm |
| Height | 105 mm |
| Width | 7.9 mm |
| Width | 79 mm |
| Depth | 12.1 mm |
| Depth | 121 mm |
| Processor package size | 45 x 37.5 mm |
