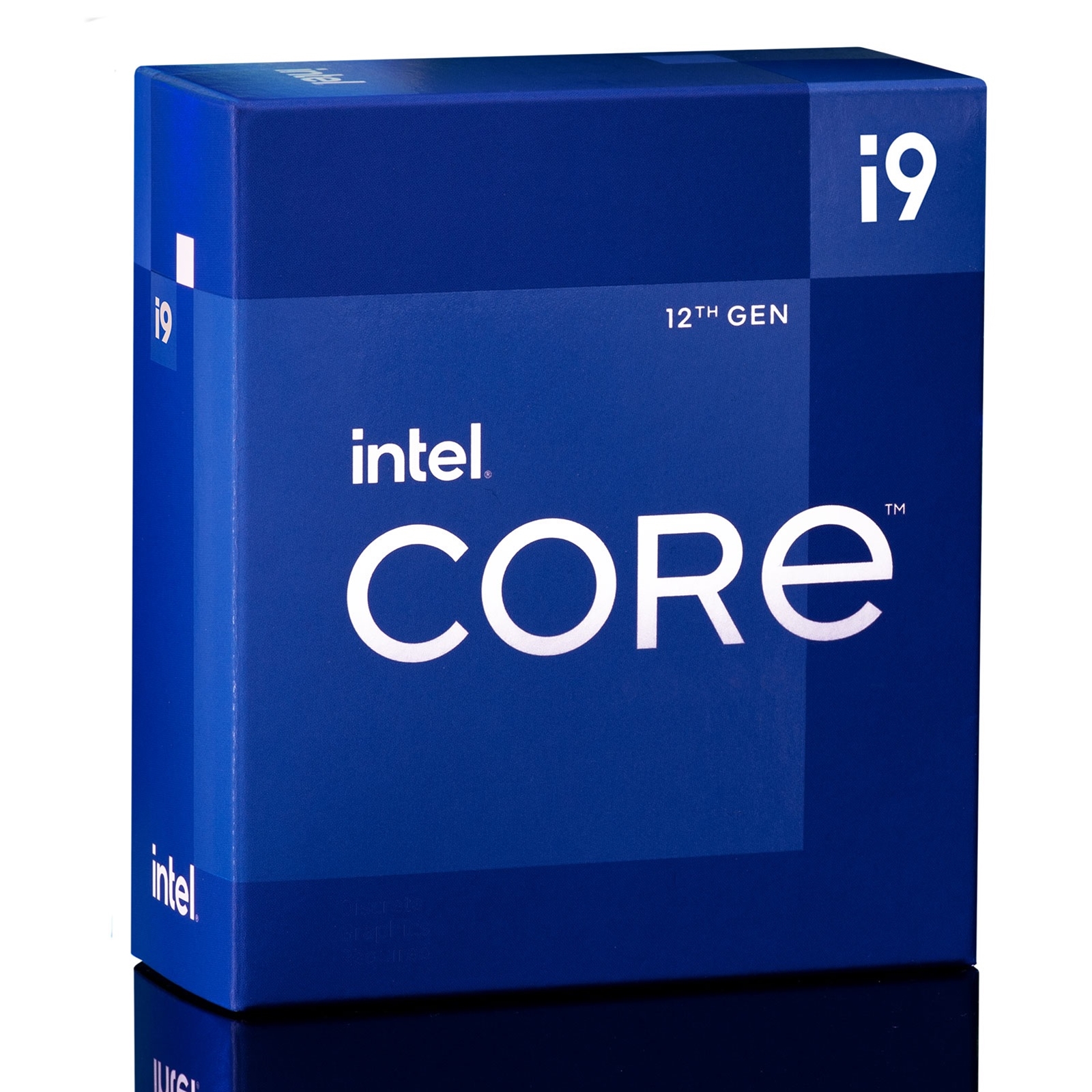

Intel Core i9 12900 2.4GHz 16 Core LGA 1700 Alder Lake Processor, 24 Threads, 5.1GHz Boost, Intel UHD 770 Graphics

Key Specifications
Socket1700
On-Chip GraphicsYes
Speed2.4GHz
Core Quantity16
PrefixCore i9
Manufacturer : INTEL
EAN : 5032037237925
Manufacturer Part Code : BX8071512900
Weight : 0.07 kg
Login For Pricing

Key Specifications
Socket1700
On-Chip GraphicsYes
Speed2.4GHz
Core Quantity16
PrefixCore i9
Manufacturer :
INTEL

EAN :
5032037237925

Manufacturer Part Code :
BX8071512900

Weight :
0.07 kg
Recommended Products
1289Motherboards
See details
1451Liquid Cooling
See details
1287Air Cooling
See details

Chip Name
BX8071512900 Alder Lake

Socket
LGA1700

Total Cores
16

Number of Performance Cores
8

Number of Efficient Cores
8

Total Threads
24

Max Turbo Frequency
5.10Ghz

Intel Turbo Boost Max Technology 3.0 Frequency
5.1Ghz

Performance-core Max Turbo Frequency
5.00Ghz

Efficient-core Max Turbo Frequency
3.80Ghz

Performance-core Base Frequency
2.4Ghz

Efficient-core Base Frequency
1.8Ghz

Cache
30MB

Total L2 Cache
12MB

Processor Base Power
65W

Maximum Turbo Power
202W

Max Memory Size (dependent on memory type)
128GB

Processor Graphics
Intel UHD Graphics 770

Graphics Base Frequency
300MHz

Graphics Max Dynamic Frequency
1.55GHz

Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units
32

Max Resolution (HDMI)
4096 x 2160 @ 60Hz

Max Resolution (DP)
7680 x 4320 @ 60Hz

DirectX Support
12

OpenGL Support
4.5

Intel Quick Sync Video
Yes

Intel Clear Video HD Technology
Yes

Number of Displays Supported
4

OpenCL Support
2.1

Direct Media Interface (DMI) Revision
4.0

PCI Express Revision
5.0 and 4.0

Max Number of PCI Express Lanes
20

Heatsink
Y

Packaging
Retail
Manufacturer's Website:
Warranty:
3 Years Manufacturers Warranty, Tel: 0870 607 2439
FEATURES
Supported instruction sets SSE4.1, SSE4.2, AVX 2.0
PCI Express slots version 5.0, 4.0
Execute Disable Bit Yes
Idle States Yes
Thermal Monitoring Technologies Yes
Scalability 1S
CPU configuration (max) 1
Embedded options available No
PCI Express configurations 1x16+1x4, 2x8+1x4
Maximum number of PCI Express lanes 20
Market segment Desktop
Harmonized System (HS) code 85423119
Export Control Classification Number (ECCN) 5A992CN3
Commodity Classification Automated Tracking System (CCATS) G167599
Use conditions PC/Client/Tablet, Workstation
Direct Media Interface (DMI) Revision 4.0
GRAPHICS
On-board graphics card model Intel UHD Graphics 770
Discrete graphics card model Not available
On-board graphics card Yes
On-board graphics card base frequency 300 MHz
On-board graphics card dynamic frequency (max) 1550 MHz
On-board graphics card outputs supported Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card maximum resolution (DisplayPort) 7680 x 4320 pixels
Number of execution units 32
On-board graphics card ID 0x4680
On-board graphics card maximum resolution (eDP - Integrated Flat Panel) 5120 x 3200 pixels
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) 120 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort) 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI) 60 Hz
Number of displays supported (on-board graphics) 4
On-board graphics card maximum resolution (HDMI) 4096 x 2160 pixels
On-board graphics card DirectX version 12.0
On-board graphics card OpenGL version 4.5
Discrete graphics card No
Multi-Format Codec Engines 2
LOGISTICS DATA
Country of origin Malaysia
Harmonized System (HS) code 85423119
MEMORY
ECC Yes
Memory bandwidth (max) 76.8 GB/s
Memory channels Dual-channel
Maximum internal memory supported by processor 128 GB
Memory types supported by processor DDR4-SDRAM, DDR5-SDRAM
OPERATIONAL CONDITIONS
Tjunction 100 °C
OTHER FEATURES
Maximum internal memory 128 GB
Graphics output eDP 1.4b, DP 1.4a, HDMI 2.1
PACKAGING DATA
Package weight 0.701 g
Package weight 701 g
Package type Retail box
PROCESSOR
Processor model i9-12900
Processor manufacturer Intel
Processor family Intel® Core™ i9
Box Yes
Processor socket LGA 1700
Stepping C0
Processor cores 16
Processor threads 24
Processor operating modes 64-bit
Processor boost frequency 5.1 GHz
Processor cache 30 MB
Bus type DMI4
Processor codename Alder Lake
Processor cache type Smart Cache
Memory bandwidth supported by processor (max) 76.8 GB/s
Processor ARK ID 134597
Efficient cores 8
Performance cores 8
Maximum number of DMI lanes 8
Processor base power 65 W
Maximum turbo power 202 W
Efficient-core base frequency 1.8 GHz
Efficient-core boost frequency 3.8 GHz
Performance-core base frequency 2.4 GHz
Performance-core boost frequency 5 GHz
Processor generation 12th gen Intel® Core™ i9
PROCESSOR SPECIAL FEATURES
IntelŽ Hyper Threading Technology (IntelŽ HT Technology) Yes
IntelŽ Turbo Boost Technology 2.0
IntelŽ Quick Sync Video Technology Yes
IntelŽ Clear Video HD Technology (IntelŽ CVT HD) Yes
IntelŽ AES New Instructions (IntelŽ AES-NI) Yes
Enhanced Intel SpeedStep Technology Yes
Intel Trusted Execution Technology Yes
IntelŽ Active Management Technology (IntelŽ AMT) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
IntelŽ Secure Key Yes
Intel 64 Yes
Intel Stable Image Platform Program (SIPP) Yes
IntelŽ OS Guard Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Virtualization Technology (VT-x) Yes
Intel Turbo Boost Max Technology 3.0 Yes
IntelŽ Optane? Memory Ready Yes
IntelŽ Speed Shift Technology Yes
IntelŽ Boot Guard Yes
IntelŽ vPro? Platform Eligibility Yes
Mode-based Execute Control (MBE) Yes
IntelŽ Deep Learning Boost (IntelŽ DL Boost) Yes
IntelŽ Volume Management Device (VMD) Yes
IntelŽ Control-flow Enforcement Technology (CET) Yes
IntelŽ Total Memory Encryption Yes
IntelŽ Turbo Boost Max Technology 3.0 frequency 5.1 GHz
IntelŽ Thread Director Yes
IntelŽ Gaussian & Neural Accelerator (IntelŽ GNA) 3.0 Yes
Intel vProŽ Enterprise Platform Eligibility Yes
IntelŽ Threat Detection Technology (TDT) Yes
IntelŽ Standard Manageability (ISM) Yes
IntelŽ One-Click Recovery Yes
IntelŽ Hardware Shield Eligibility Yes
IntelŽ Total Memory Encryption - Multi Key Yes
IntelŽ Virtualization Technology with Redirect Protection (VT-rp) Yes
Intel vProŽ Essentials Platform Eligibility Yes
TECHNICAL DETAILS
OpenCL version 2.1
Status Launched
Launch date Q1''22
Target market Gaming, Content Creation
WEIGHT & DIMENSIONS
Weight 0.55 g
Weight 550 g
Height 12.6 mm
Height 126 mm
Width 13.1 mm
Width 131 mm
Depth 14.4 mm
Depth 144 mm
Processor package size 45 x 37.5 mm
