| Socket | 1700 |
| On-Chip Graphics | No |
| Speed | 2.4GHz |
| Core Quantity | 16 |
| Prefix | Core i9 |
| Socket | 1700 |
| On-Chip Graphics | No |
| Speed | 2.4GHz |
| Core Quantity | 16 |
| Prefix | Core i9 |
| FEATURES | |
|---|---|
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| PCI Express slots version | 4.0, 5.0 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Maximum number of PCI Express lanes | 20 |
| Market segment | Desktop |
| Harmonized System (HS) code | 85423119 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G167599 |
| Use conditions | PC/Client/Tablet |
| Direct Media Interface (DMI) Revision | 4.0 | GRAPHICS |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No | LOGISTICS DATA |
| Country of origin | Malaysia |
| Harmonized System (HS) code | 85423119 | MEMORY |
| Memory bandwidth (max) | 76.8 GB/s |
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM | OPERATIONAL CONDITIONS |
| Tjunction | 100 °C | OTHER FEATURES |
| Maximum internal memory | 128 GB | PACKAGING DATA |
| Package weight | 0.7 g |
| Package weight | 700 g |
| Package type | Retail box | PROCESSOR |

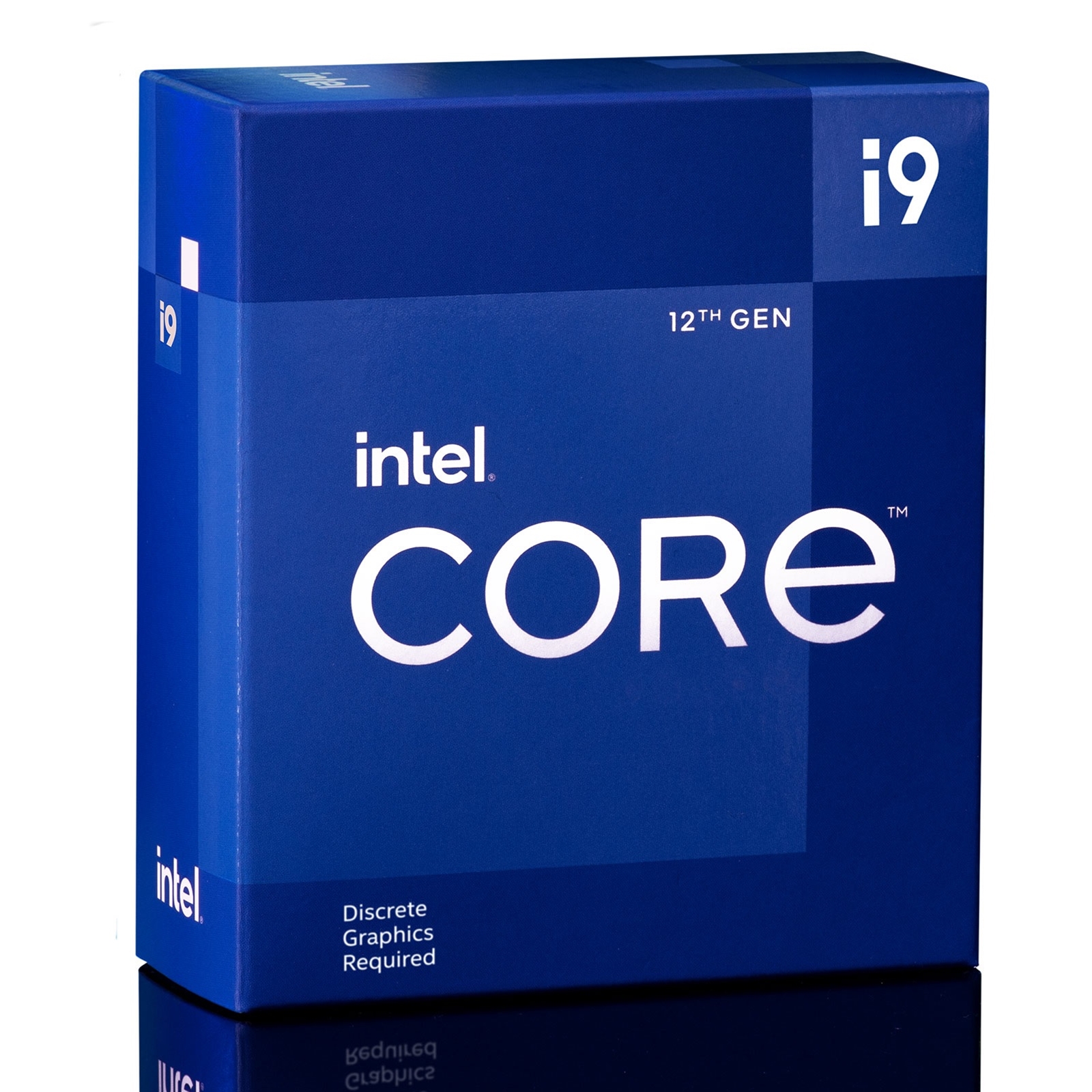

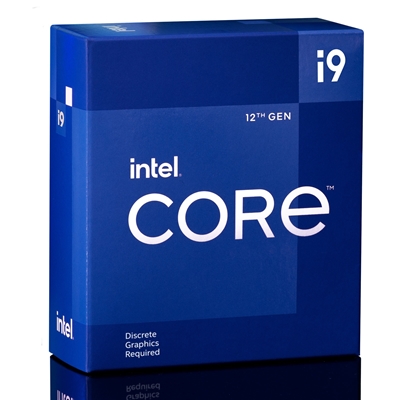

| Processor model | i9-12900F |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Box | Yes |
| Processor socket | LGA 1700 |
| Stepping | C0 |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 5.1 GHz |
| Processor cache | 30 MB |
| Bus type | DMI4 |
| Processor codename | Alder Lake |
| Processor cache type | Smart Cache |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor ARK ID | 134598 |
| Efficient cores | 8 |
| Performance cores | 8 |
| Maximum number of DMI lanes | 8 |
| Processor base power | 65 W |
| Maximum turbo power | 202 W |
| Efficient-core base frequency | 1.8 GHz |
| Efficient-core boost frequency | 3.8 GHz |
| Performance-core base frequency | 2.4 GHz |
| Performance-core boost frequency | 5 GHz |
| Processor generation | 12th gen Intel® Core™ i9 | PROCESSOR SPECIAL FEATURES |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel 64 | Yes |
| Intel® OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel® Optane? Memory Ready | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.1 GHz |
| Intel® Thread Director | Yes |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Standard Manageability (ISM) | Yes | TECHNICAL DETAILS |
| Status | Launched |
| Launch date | Q1''22 |
| Target market | Gaming, Content Creation | WEIGHT & DIMENSIONS |
| Weight | 0.57 g |
| Weight | 570 g |
| Height | 126 mm |
| Width | 131 mm |
| Depth | 144 mm |
| Processor package size | 45 x 37.5 mm |
