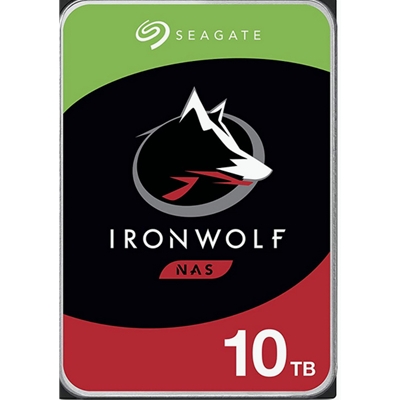

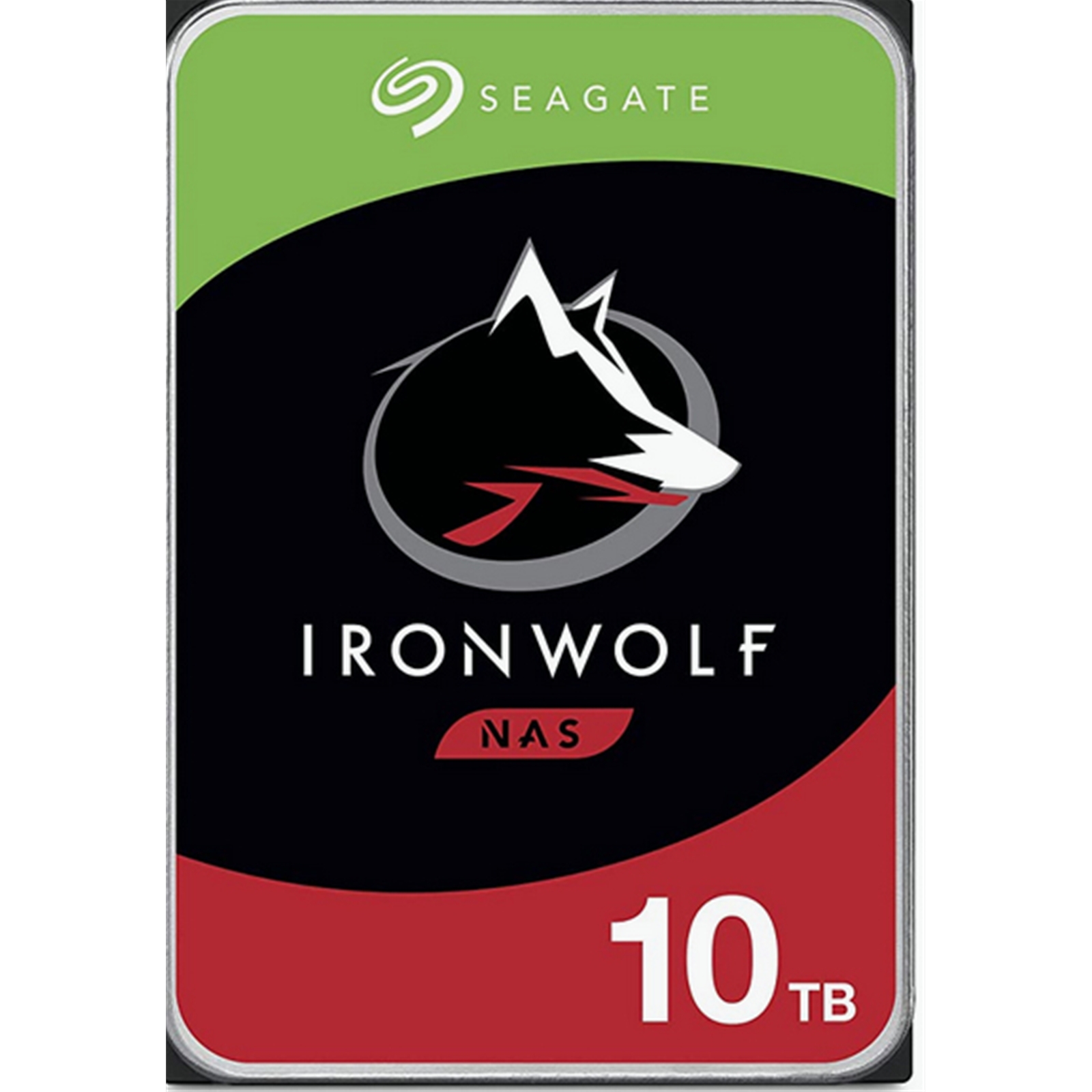

Seagate Ironwolf 10TB Internal Hard Drive

IronWolf is designed for consumer and commercial NAS.
Delivering Tough, Ready and Scalable 24x7 performance in multibay, networked environments.

Key Advantages
Optimised for NAS with AgileArray enables Dual-Plane Balancing and Time-Limited
Error Recovery to deliver best-in-class RAID performance in multi-bay systems.
Always On, Always Accessible IronWolf drives are designed for 24x7 usage, allowing
users to access their data any time, anywhere.
All-CMR Portfolio All IronWolf drives utilize Conventional Magnetic Recording (CMR)
technology for consistent, best-in-class NAS performance.
Up to 12 TB Broad range of capacity options to deliver scalable and cost-efficient
storage solutions.
Built Tough IronWolf drives are rated for 180 TB/year workload, allowing consumer and
commercial NAS users to seamlessly store and work with large amounts of networked
data.
Superior Reliability and Dependability IronWolf drives are rated for 1M hours MTBF and
include a 3-year limited warranty for hassle-free data storage and best-in-class total cost
of ownership (TCO)
Rotational Vibration (RV) sensors
Built-in RV sensors for vibration tolerance and
consistent performance in multi-bay systems.
IronWolf Health Management (IHM)
Actively protect your NAS data with Prevention,
Intervention, and Recovery recommendations to ensure peak system health.
Peace of mind with Data Recovery
IronWolf drives include three years of
complimentary Rescue Data Recovery Services - in-house secure facilities, with an
industry-leading recovery rate of 95% - so you do not have to

Specifications

Capacity
10TB


SATA 6GB's

Features and Performance
Drive Bays Supported: 1 – 8 Bays
Recording Technology: CMR
Drive Design (Air or Helium): Helium
Workload Rate Limit (WRL): 180
Rotational Vibration (RV) Sensor: Yes
Dual-Plane Balance: Yes
Error Recovery Control : Yes
Max. Sustained Transfer Rate OD (MB/s): 210MB/s
Spindle Speed (RPM): 7,200
Cache (MB): 256

Reliability
Load/Unload Cycles: 600,000
Non-recoverable Read Errors Rate, Max: 1 per 10E15
Power-on Hours: 8,760
Mean Time Between Failures (MTBF, hours): 1,000,000
Rescue Data Recovery Services (years):3
Warranty, Limited (years): 3

Power Management
Startup Current, Typical (12V, A): 1.8
Average Operating Power: 7.8
Idle Power Average (W): 5 W
Standby Mode/Sleep Mode, Typical (W): 1.17/1.17
Voltage Tolerance, Inc. Noise (5V / 12V): ±5% / ±10%

Environment
Operating Temperature (ambient, min °C): 0
Operating Temperature (drive reported, max °C):65
Nonoperating Temperature (ambient, min / max °C) : -40 / 70

Environmental/Shock
Shock, Operating/Non-operating: 2 ms (max): 70 Gs/250 Gs

Environmental/Acoustics
Acoustics, Idle (typical, measured in Idle 1 state) (dBA):28
Acoustics, Seek (typical) (dBA): 30

Physical
Height (mm/in): 26.11 mm/1.028 in
Width (mm/in, max): 101.85 mm/4.01 in
Depth (mm/in, max): 146.99 mm/5.787 in
Weight (g/lb, typical): 690 g/1.521 lb
