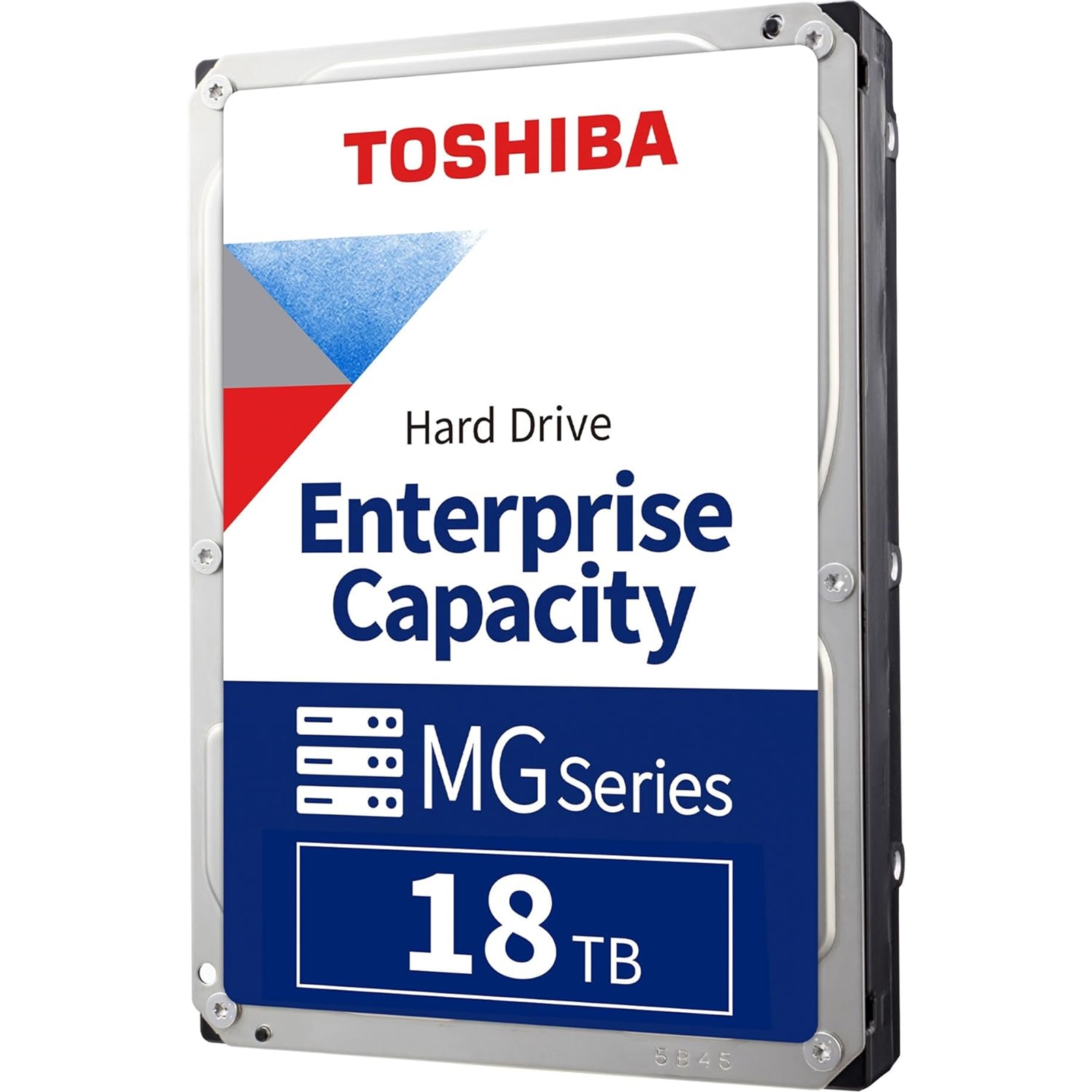

Toshiba MG09 18TB 3.5 Internal Hard Drive

Rethink Your Data Storage Toshiba Enterprise HDDs
The MG10 Series features Toshiba's fourth-generation, 10-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2 TB per disk, achieving a total capacity up to 20 TB. The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.

The massive 18 TB CMR capacity is delivered using Toshiba's innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG10 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with a SATA 6.0Gbit/s interface, the MG10 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.

Harness the Power
Industry Standard 3.5-inch 26.1mm height Form Factor
550 Total TB Transferred per Year Workload Rating
7200 rpm Performance
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO

Features
Up to 18 TB capacity
Conventional Magnetic Recording (CMR) for broad compatibility
Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR™) Technology
Industry-leading 10-disk helium-sealed design for superior storage density
Industry Standard 3.5-inch 26.1mm height Form Factor
7200 rpm Performance
SATA 6.0Gbit/s Interfacess
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
550 Total TB Transferred per Year Workload Rating
512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
Power efficiency improvements vs. prior MG Series generations
Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

Specifications

Available Capacity
18 TB

Form Factor
3.5-inch

Buffer Size
512MiB

Rotation Speed
7200 rpm

Maximum Data Transfer Speed
(Sustained)(Typ.) 268MiB/s

Power Consumption
SATA 18 TB: 4.18W

MTTF/MTBF(AFR)
2 500 000 h (0.35%)

Weight (Max)
18 TB: 720g
