Target Components

Advanced Storage for Smart Video Solutions
WD Purple Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.

Purpose-built storage for your smart video solution

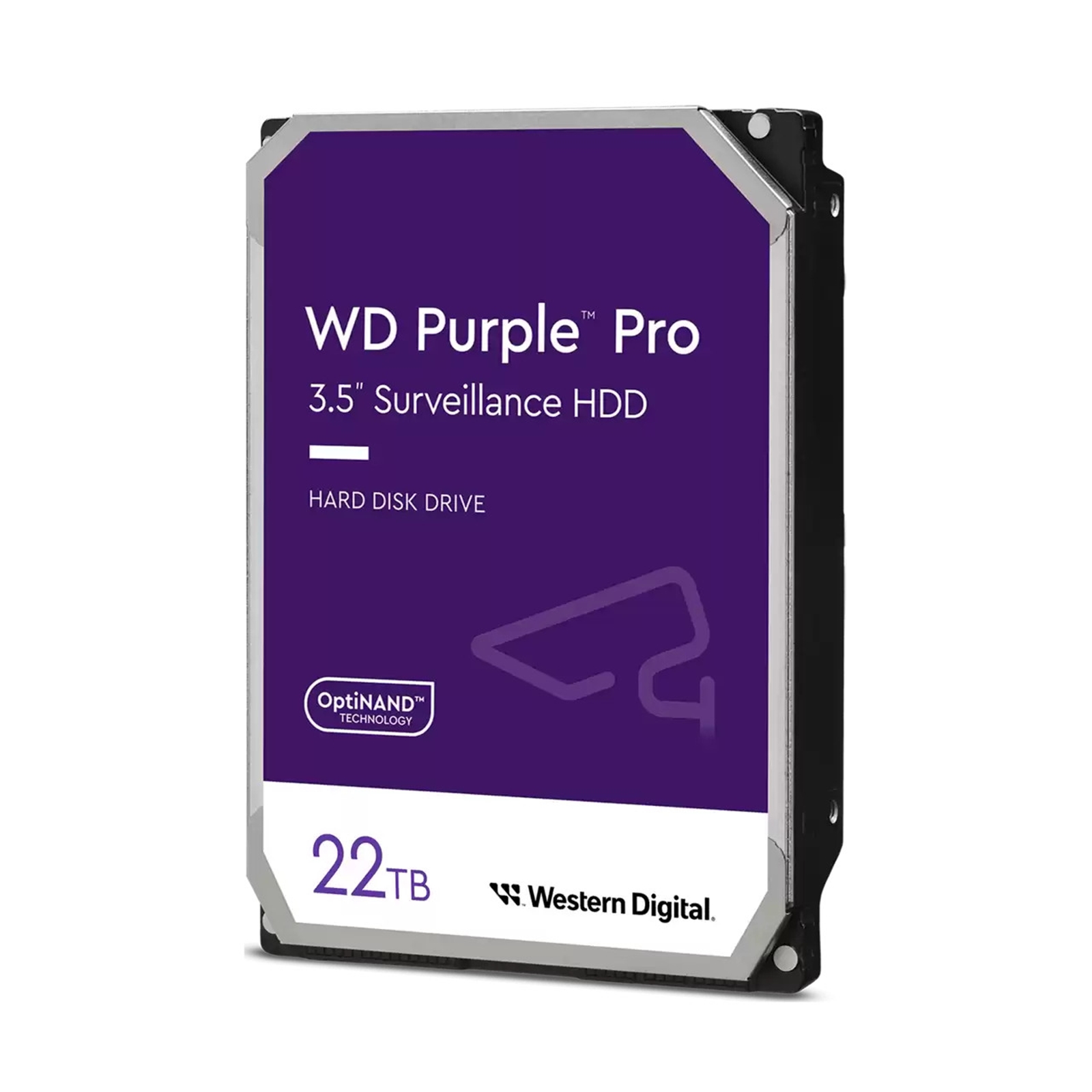

The WD Purple Pro HDD, with OptiNAND technology in 22TB, delivers big capacity in an enterprise-class drive for video analytics servers, AI, and deep learning systems to enable data-driven outcomes.

Western Digital's exclusive AllFrame AI technology
AllFrame AI technology supports up to 32 AI streams for deep learning analytics within the system while reducing frame drops.

Multiple cameras, multiple streams
WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras in addition to 32 concurrent AI streams. This flexibility allows you to easily upgrade and scale your smart video solution to meet your changing needs.

Advanced workload capability for advanced systems
These reliable drives are built with a workload rating up to 550TB/year to keep up with the 24/7 data capture and analysis demands of advanced AI-enabled recorders, video analytics appliances, and deep learning analytics servers.

Designed for reliable operation
Engineered with an MTBF of up to 2.5 million hours and backed with a 5-year limited warranty, the WD Purple™ Pro HDD also features tarnish-resistant components and full multi-bay support for dependable operation in large-scale surveillance systems.

Proactive storage management with WDDA
Western Digital Device Analytics (WDDA) provides drive health management features for compatible recorders and video management systems.

Specifications

Capacity
22TB

Form Factor
3.5-Inch

Connector
SATA

Interface
SATA

Transfer Rate
up to 265MB/s

Disk Speed (RPM)
7200 RPM

Recording Technology
CMR

Cache Size
512MB

Warranty
5-Year Limited Warranty

Dimensions (L x W x H)
147mm x 101.6mm x 26.1mm

Weight
670gms

Operating Temperature
0C to 65C

Non-Operating Temperature
-40C to 70C

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

Product Features
Engineered for advanced AI-enabled recorders, video analytics appliances, deep-learning servers, and cloud-based storage, including RAID and JBOD
Designed with tarnish-resistant components for harsh environments and with additional robustness for multi-bay enclosures
Supports up to 550TB/yr workload rate

Compatibility
Up to 64 single-stream cameras
