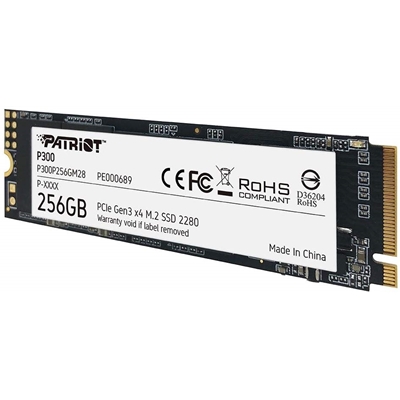

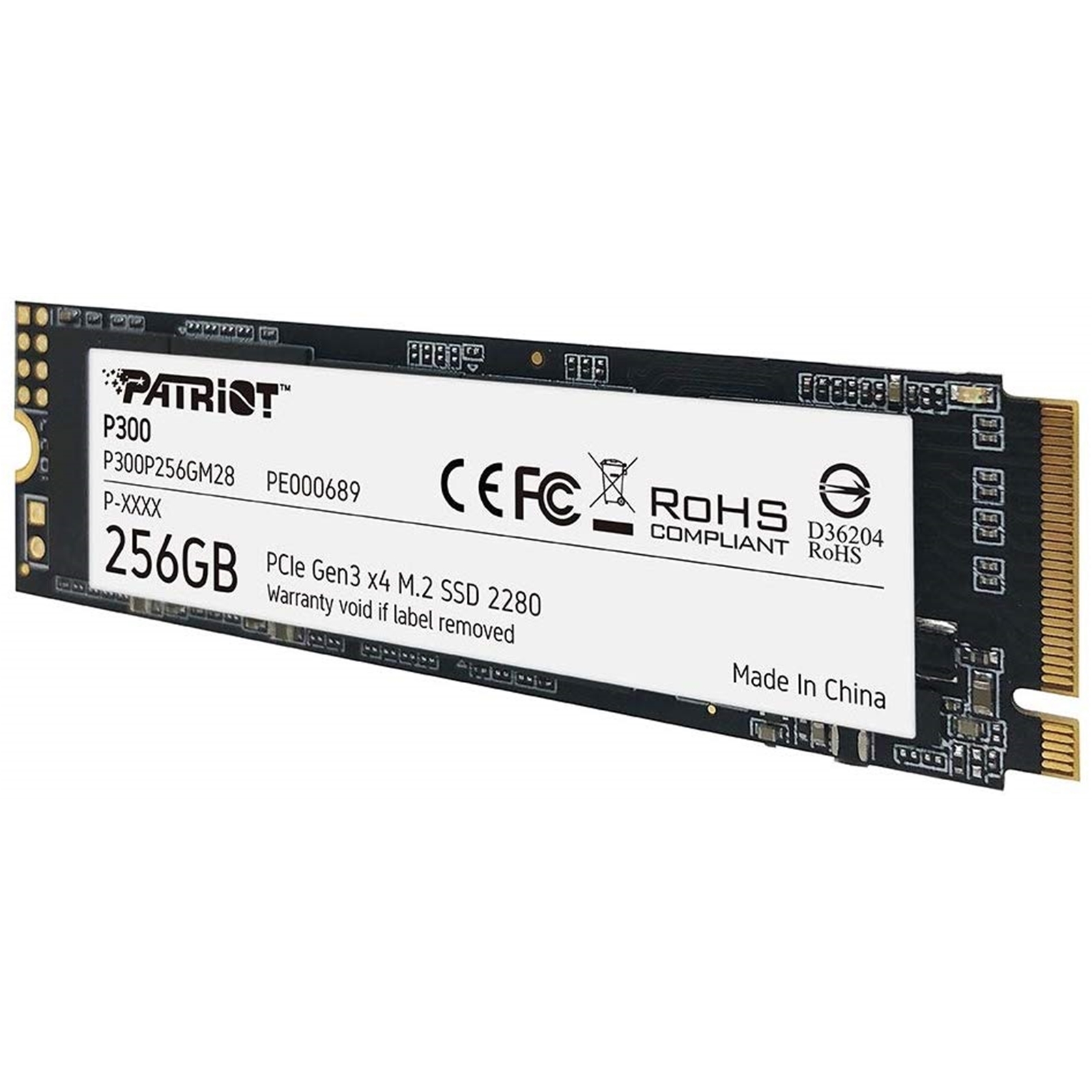

The P300 is Patriot's next generation of mid-tier PCIe gen 3x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives. Boost your computer's performance with quicker application loading times for a better overall experience and productivity while transferring heavy workloads without the lag. Backed by our 3-year warranty, Patriot's P300 delivers one of the most reliable price-to-performance SSD's on the market.

Capacity
256GB

Model
P300
P300P256GM28

Interface
2280 M.2 PCIe Gen3 x 4, NVMe 1.3

Controller
Phison S11

Sequential Read & Write
Sequential Read (ATTO): 1,700MB/s
Sequential Read (CDM): 1,700MB/s
Sequential Write (ATTO): 1,100MB/s
Sequential Write (CDM): 1,100MB/s

4KB Random Read & Write
4K Random Read: Up to 290K IOPs
4K Random Write: Up to 260K IOPs

Physical Drive Size
2.5"

Packaging
Retail

Manufacturer's Website:

www.patriotmemory.com

Warranty:

3 Year Return To Base Warranty

FEATURES
Interface	PCI Express
Certification	CE/FCC
Controller type	SMI2263XT
SSD capacity	256 GB
Random write (4KB)	260 IOPS
Random read (4KB)	290 IOPS
Component for	PC/notebook
PCI Express interface data lanes	x4
TBW rating	80
SSD form factor	M.2
NVMe	Y
NVMe version	1.3
Sequential read speed (CDM)	1700 MB/s
Sequential write speed (CDM)	1100 MB/s
Sequential read speed (ATTO)	1700 MB/s
Sequential write speed (ATTO)	1100 MB/s
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 70 °C
PACKAGING DATA
Package weight	20 g
Package depth	66 mm
Package height	99.6 mm
Package width	130 mm
TECHNICAL DETAILS
Sustainability certificates	RoHS
WEIGHT & DIMENSIONS
Weight	9 g
Height	3.8 mm
Width	22 mm
Depth	80 mm
