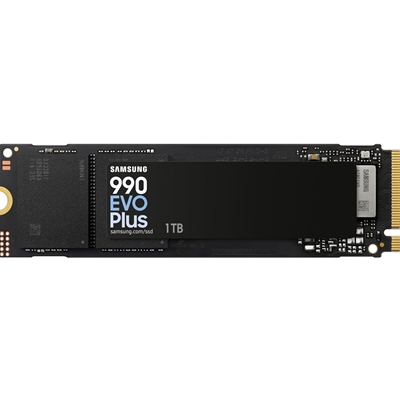

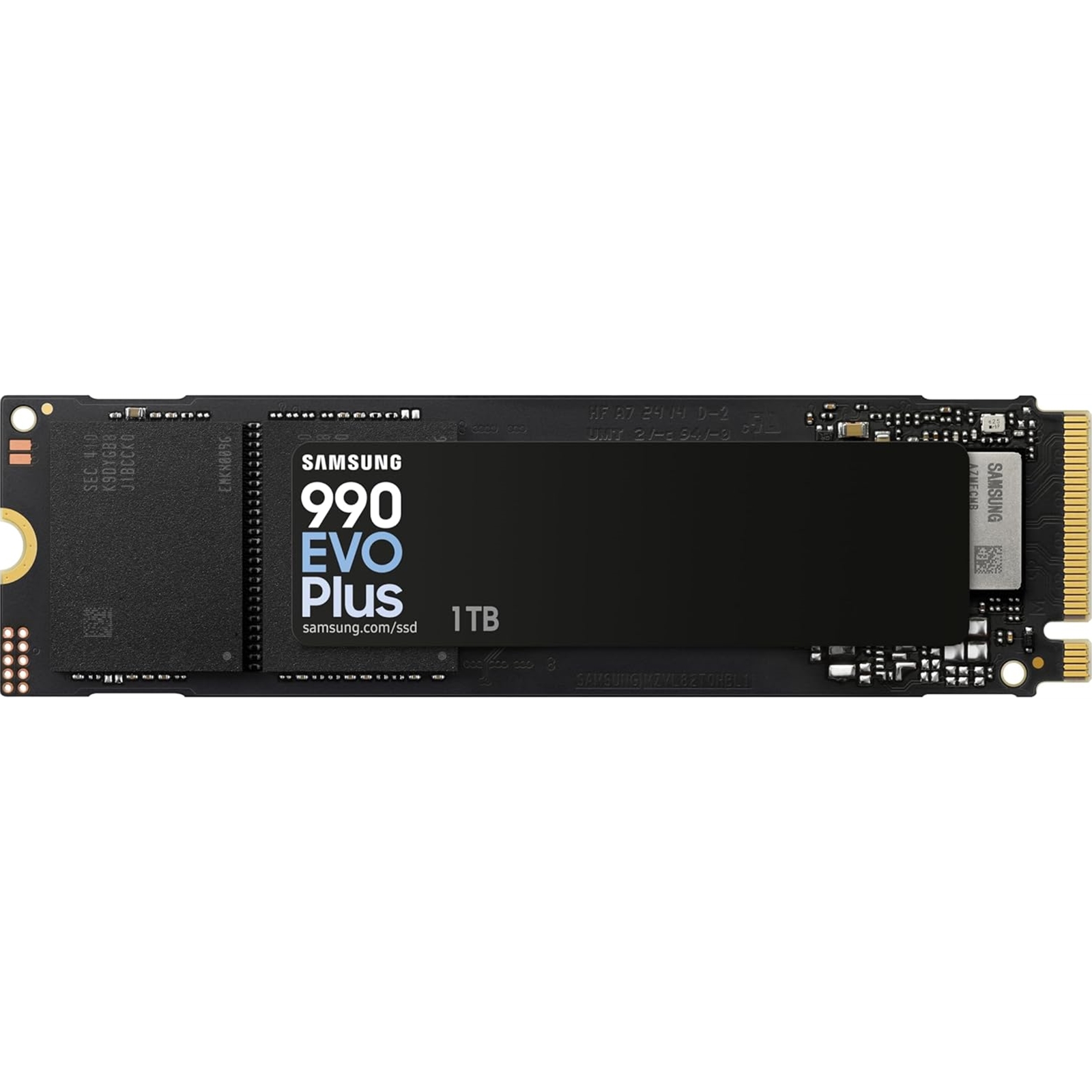

Sumsung 990 EVO Plus 1TB, PCIe 4.0/5.0, NVMe M.2 SSD
Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
Bringing innovations to life
For decades, Samsung's NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.
Specifications
Overview
Interface
PCIe 4.0 x4 / 5.0 x2 NVMe 2.0
Sequential Read
Up to 7,250 MB/s * Performance may vary based on system hardware & configuration
Sequential Write
Up to 6,300 MB/s * Performance may vary based on system hardware & configuration
Warranty
5-year Limited Warranty or 1200 TBW Limited Warranty
Application
Client PCs
Weight
Max 9.0g Weight
Dimensions (WxHxD)
Max 80.15 x Max 22.15 x Max 2.38 mm
General Feature
Capacity
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor
M.2 (2280)
Storage Memory
Samsung V-NAND TLC
Controller
Samsung in-house Controller
Cache Memory
HMB(Host Memory Buffer)
Special Features
TRIM Support
Supported
S.M.A.R.T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes
Performance
Sequential Read
Up to 7,250 MB/s * Performance may vary based on system hardware & configuration
Sequential Write
Up to 6,300 MB/s * Performance may vary based on system hardware & configuration
Random Read (4 KB, QD32)
Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)
Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration
Environment
Average Power Consumption (system level)
Average: Read 4.6 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration
Power Consumption (Device Sleep)
Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 C Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
Software
Management SW
Magician Software for SSD management
Warranty:
5 Years Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
ENERGY MANAGEMENT
|
| Operating voltage |
3.3 V |
| Power consumption (idle) |
0.06 W |
| Power consumption (read) |
4.3 W |
| Power consumption (write) |
4.2 W |
| Power consumption DevSlp (device sleep) |
5 mW |
| Average power consumption (read) |
4.3 W |
| Average power consumption (write) |
4.2 W |
FEATURES
|
| Interface |
PCI Express 4.0 |
| Security algorithms |
256-bit AES |
| Mean time between failures (MTBF) |
1500000 h |
| Memory type |
V-NAND TLC |
| Read speed |
7150 MB/s |
| Write speed |
6300 MB/s |
| SSD capacity |
1 TB |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| Random write (4KB) |
1350000 IOPS |
| Random read (4KB) |
850000 IOPS |
| Component for |
PC |
| Hardware encryption |
Yes |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| NVMe version |
2.0 |
| DevSlp (device sleep) support |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
OPERATIONAL CONDITIONS
|
| Operating temperature (T-T) |
0 - 70 °C |
| Operating shock |
1500 G |
WEIGHT & DIMENSIONS
|
| Weight |
9 g |
| Height |
22.1 mm |
| Height |
80.2 mm |
| Width |
80.2 mm |
| Depth |
2.38 mm |
