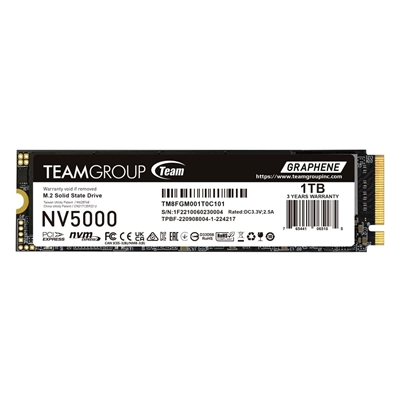

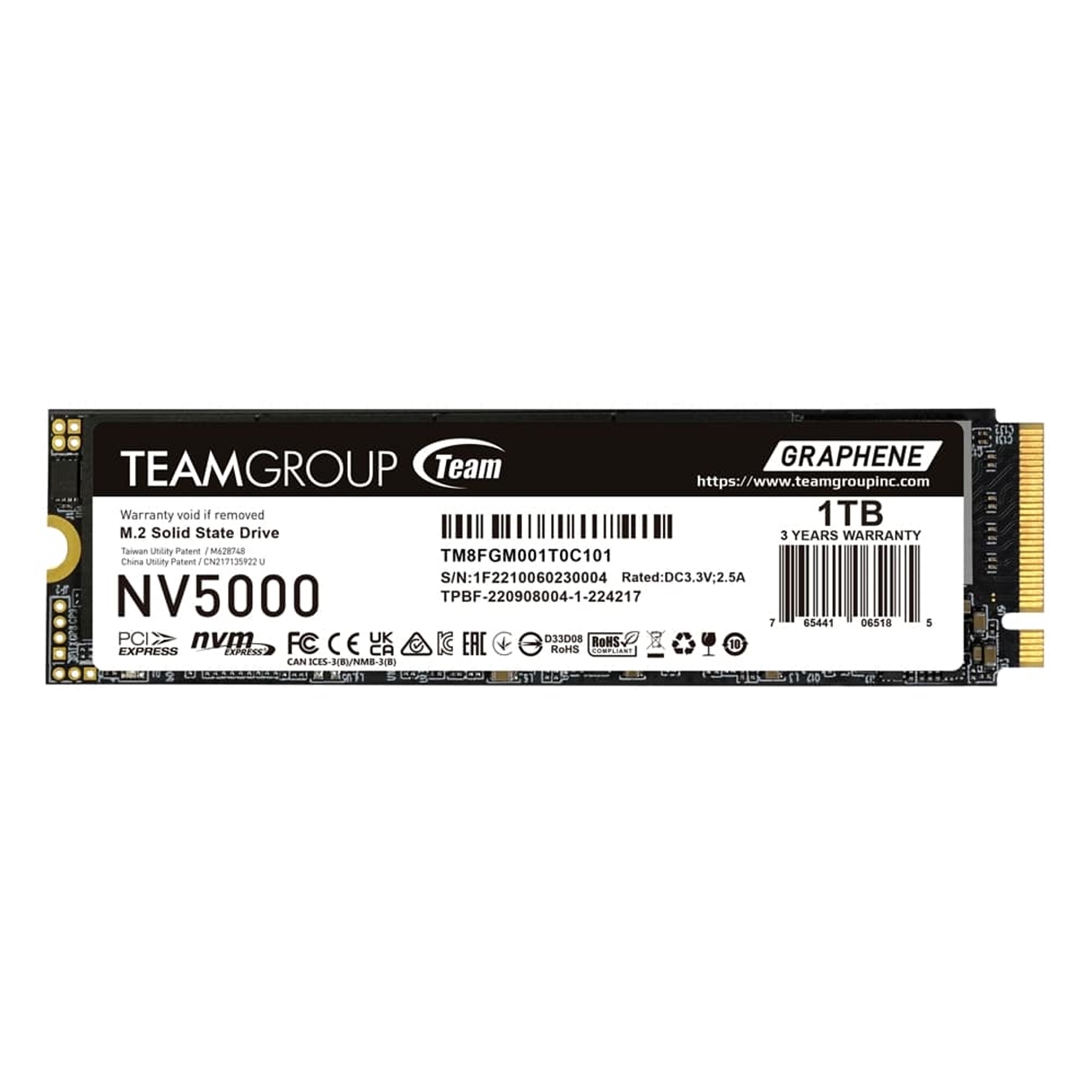

Team NV5000 PCIe 4.0 SSD

High-performance Entry-level PCIe Gen4 x4 SSD
The NV5000 SSD features a PCIe Gen4x4 interface and supports the latest NVMe protocol, delivering read speeds of up to 5,000 MB/s1 – more than double the speed of PCIe Gen3 SSDs and over 9 times faster than SATA SSDs. Whether you're working with documents, backing up data, editing videos, or launching games, the NV5000 SSD significantly reduces wait times and boosts multitasking and work efficiency.

Store Everything with 2TB Storage
Built with advanced 3D NAND flash technology, the NV5000 not only enhances storage stability but also offers up to 2TB of capacity – perfect for storing high-resolution photos, videos, and large files with ease.

Patented Graphene Cooling Technology for Stable Performances
TEAMGROUP's exclusive patented graphene heat dissipation label effectively reduces operating temperatures to ensure consistent SSD performance. Compatible with both Intel and AMD's latest platforms, the NV5000 SSD is great across both desktops and laptops.
Taiwan Utility Model Patent (Patent No.: M628748) / China Utility Model Patent (Patent No.: CN 217135922 U)

Monitor SSD Health with S.M.A.R.T.
TEAMGROUP's proprietary S.M.A.R.T. monitoring software lets users check SSD use status at all times, offering fast and intuitive settings and diagnostic tools to effectively monitor the health and performance of storage devices.
Taiwan Invention Patent (Patent No.: I751753)

Recycled Packaging Materials: Better for the Planet
The NV5000 SSD uses recyclable, environmentally conscious packaging materials and has acquired international environmental accreditations such as RoHS, REACH, and ESG, demonstrating our commitment to sustainability and corporate social responsibility through concrete actions.

Recycled Packaging Materials: Better for the Planet
The NV5000 SSD uses recyclable, environmentally conscious packaging materials and has acquired international environmental accreditations such as RoHS, REACH, and ESG, demonstrating our commitment to sustainability and corporate social responsibility through concrete actions.


Key Features
High-performance Entry-level PCIe Gen4 x4 SSD
Store Everything with 2TB Storage
Patented Graphene Cooling Technology for Stable Performances
Monitor SSD Health with S.M.A.R.T.
Recycled Packaging Materials: Better for the Planet
Comprehensive Protection with 3-year Warranty

Specifications

Interface
PCIe Gen4x4 with NVMe

Voltage
DC +3.3V

Operation Temperature
0degrees ~ 70degrees
Storage Temperature
-40degrees ~ 85°degrees

Weight
7g

Dimensions
80.0(L) x 22.0(W) x 3.7(H)mm

Vibration
80Hz - 2,000Hz/20G

Shock
1,500G/0.5ms

MTBF
2,000,000 Hours

Operating System
Compatible with Intel and AMD platforms and has one of the foll owing operating systems:
Windows 11 / 10 / 8.1 / 8 / 7 / Vista
MAC OS 10.4 or later
Linux 2.6.33 or later

Warranty
3-year limited warranty
