Intel Processor and Intel Core i3 N-Series Processors deliver the performance you need at an affordable price to allow you to connect, learn, and play anywhere. The new Intel ?Gracemont? CPU microarchitecture built on the latest Intel 7 process features up to 8 efficient cores (?E-cores?), enabling easy, responsive, streamlined experiences. You can scale up to BRIX BNi3 series (Intel Core i3-N305) with an Intel Core i3 N-series platform for a 3.8 GHz turbo frequency and enable Intel Wi-Fi 6E (Gig+), next-gen Intel UHD Graphics, enhanced Image Processing Unit (IPU 6) to enjoy a balance of performance and value for the essential BRIX that's right for you. With the above technologies, users can experience faster browsing and better productivity to accomplish more. Intel N-series processors harness power and efficiency to support learning, streaming and productivity at an affordable cost.

Performance
Intel Processor and Intel Core i3 N-Series Processor is much more powerful than the prior generation. The all-new Intel 7nm manufacturing process and E-core (Efficient Core) architecture, users can benefit not only from the performance boost, but also compute with greater power efficiency. Overall, generational performance improvements are easily 30% or more.

USB Type-C Connector
The USB Type-C is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s.

Dual M.2 Storage Supports
It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.

Dimension
163.5 x 116.8 x 28.5 mm
0.54 L

Motherboard Size
154 x 110 mm

CPU
Intel CoreTM i3 Processor N305
CPU 3.0G~3.8G Turbo, 8C/8T Core, 6MB L3 Cache

Memory
1 x SO-DIMM DDR4 slot
3200MHz
Max. 32GB

LAN
2.5 GbE LAN (Realtek RTL8125)

Wifi Card
Intel AX101
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz

Graphics
Intel® UHD Graphics 1250

Audio
Realtek ALC897

HDMI Resolution (Max.)
HDMI 2.1
Support 4K@60P HDR10

Mini DP Resolution (Max.)
DP 1.4
support 4K@60P HBR2

Storage
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)

Expansion Slots
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi + Bluetooth card)

Front I/O
1 x Power Button
1 x USB3.2 Gen2 Type-A
1 x USB3.2 Gen2 Type-C
1 x Headphone / Microphone

Rear I/O
2 x HDMI 2.1
1 x 2.5 GbE RJ45
3 x USB 2.0 Type-A
1 x USB 3.2 Gen2 Type-A
1 x DC-In
1 x DP 1.4
1 x Kensington lock slot

Power Supply
Input: AC 100-240V
Output: DC 19V/4.74A, 90W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.

Support OS
Win11 64 bit

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

Manufacturer's Website:

www.gigabyte.com

Warranty:

Gigabyte 3 Year Return to Manufacturer Warranty (Reseller only)

Warranty Length: 3 years

Warranty Type:Return-To-Manufacturer

Warranty Coverage: Gigabyte's 3-year warranty includes a 7-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 7 days of purchase, it can be returned to Target under the 7-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 7 days the product will need to be returned directly to Gigabyte. Acccount credit will be unavailable outside of the 7-day DOA agreement.

Warranty Instructions: RESELLERS - please raise a Gigabyte RMA. Information needed for claims is Part/Model Number, Serial Number, Fault Description, Place of Purchase (Target Components Limited). Please make sure to comment in the email that you are a trade customer and not an end user. This should speed up Gigabyte processing of your request. Gigabyte will reply by email with a returns number and confirmation of the returns address which is currently:

GBT Tech. Co. Ltd Returns Department Unit 1 Fitzhamon Court Wolverton Mill Milton Keynes MK12 6LB

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

DESIGN
Cable lock slot	Yes
Product colour	Black
Panel mounting interface	75 x 75,100 x 100 mm
On/off switch	Yes
Product type	Mini PC barebone
Cable lock slot type	Kensington
VESA mounting	Yes
ENERGY MANAGEMENT
AC adapter output voltage	19 V
AC adapter output current	4.74 A
Power supply	90 W
AC input voltage	100 - 240 V
EXPANSION SLOTS
PCI slots	3
GRAPHICS
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
On-board graphics card	Yes
MEMORY
Maximum internal memory	32 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Memory slots type	SO-DIMM
Number of memory slots	1
NETWORKING
Ethernet LAN	Yes
LAN controller	Intel I226-V
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
PERFORMANCE
Windows operating systems supported	Windows 11
PORTS & INTERFACES
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	1
Combo headphone/mic port	Yes
DisplayPort version	1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
PROCESSOR
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor cores	8
Processor threads	8
Built-in processor	Yes
Processor boost frequency	3.8 GHz
Processor cache	6 MB
CPU configuration (max)	1
Thermal Design Power (TDP)	15 W
SOFTWARE
Windows operating systems supported	Windows 11
STORAGE
Storage drive interface	PCI Express, Serial ATA
Storage drive sizes supported	M.2
Supported storage drive types	SSD
SSD form factor	M.2
WEIGHT & DIMENSIONS
Height	28.5 mm
Width	163.5 mm
Depth	116.8 mm

Processor	Intel Core i3
Processor Cores	8
Memory	1 x SO-DIMM DDR4
Storage	M.2 2280 NVME/SATA3
Optical	None
Included Peripherals	None
Operating Software	Supports Windows

Processor	Intel Core i3
Processor Cores	8
Memory	1 x SO-DIMM DDR4
Storage	M.2 2280 NVME/SATA3
Optical	None
Included Peripherals	None
Operating Software	Supports Windows

Target Components

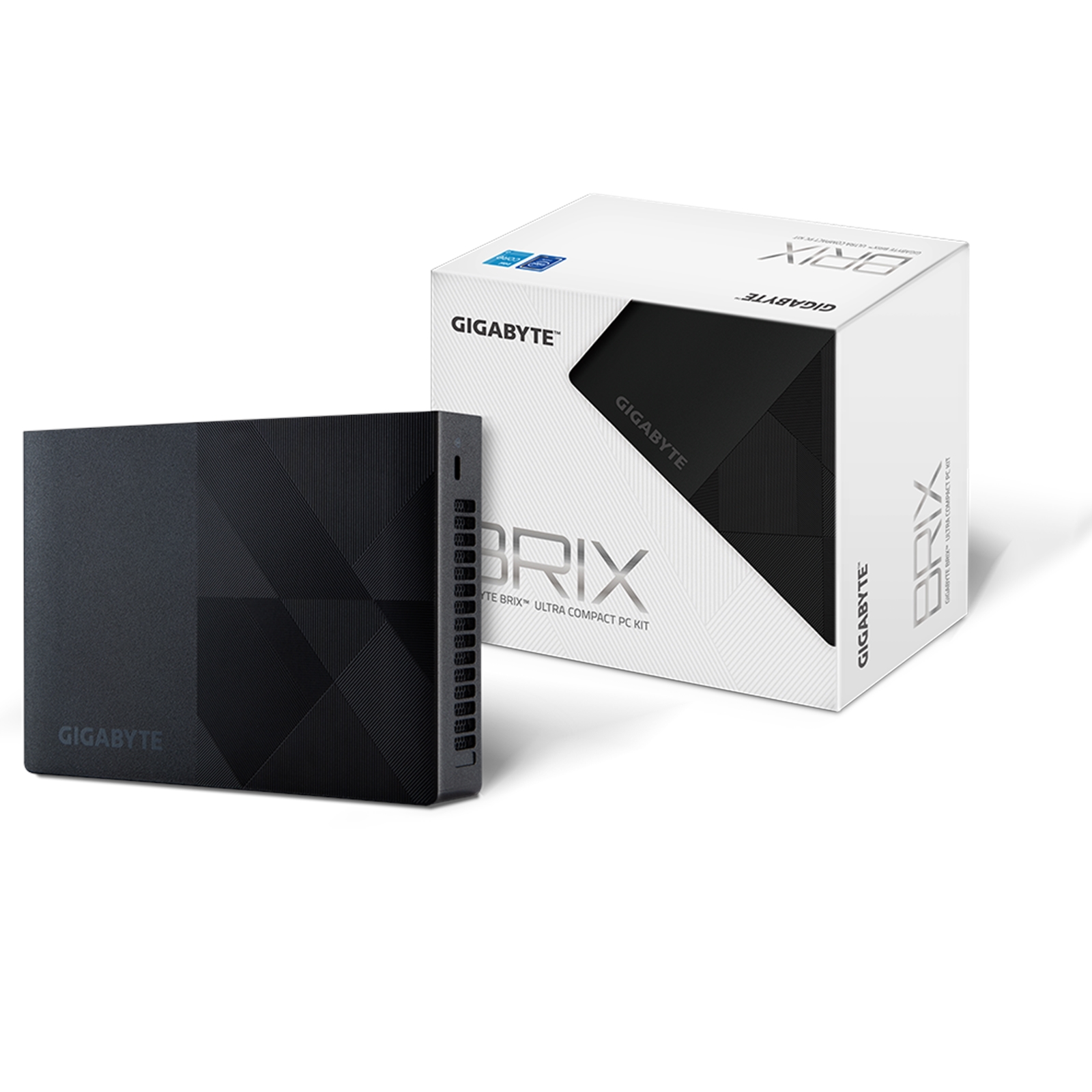

Gigabyte BRIX (GB-BNI3-N305) Barebone Kit, Intel i3 N305 3.0GHz 8 Core CPU, 1 x DDR4 3200 SO-DIMM Slot, 2 x M.2 Slots, Wireless AX & Bluetooth 5.2
