Target Components

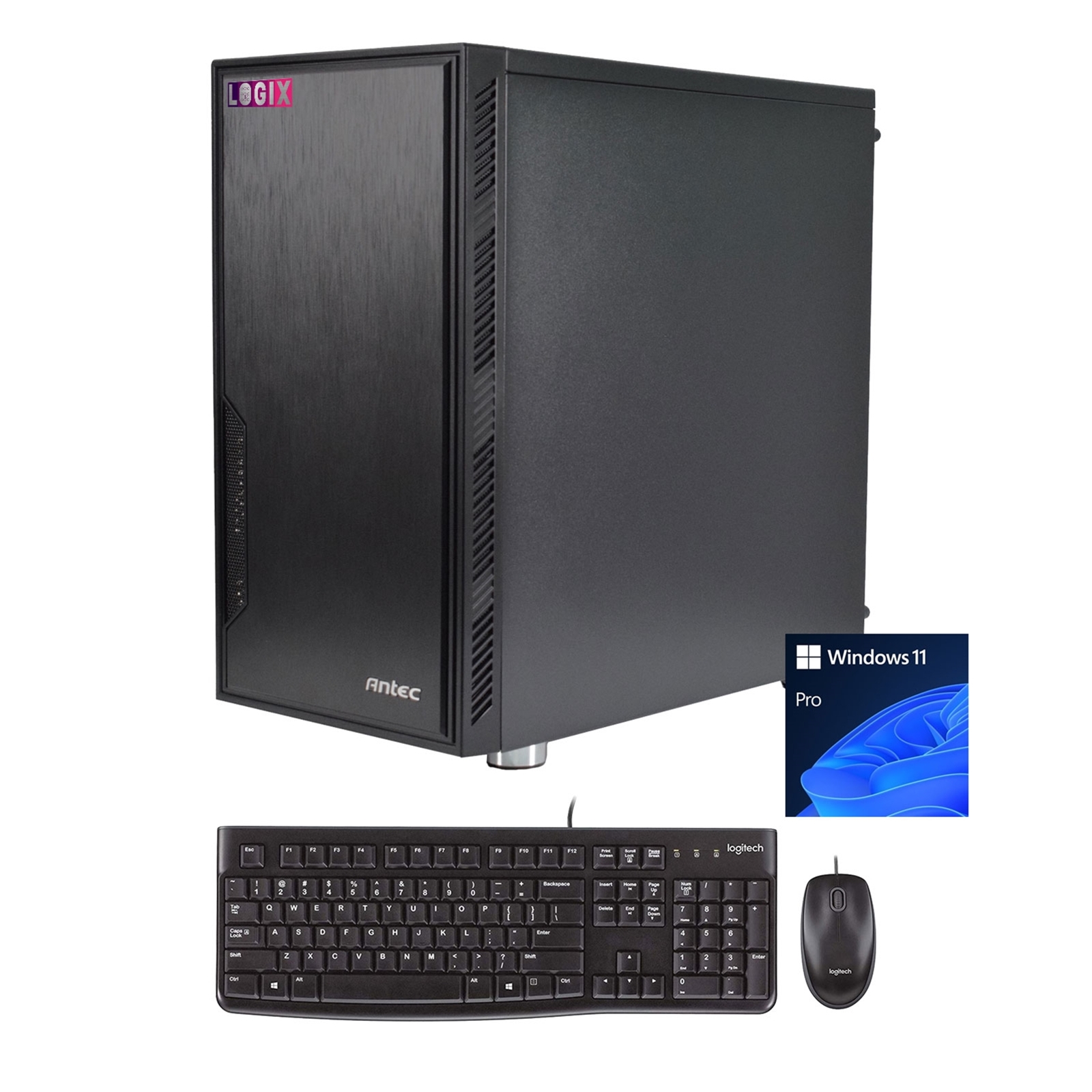

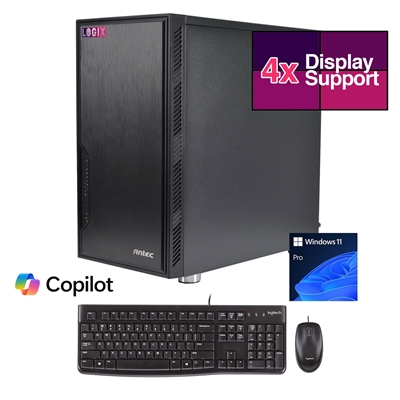

LOGIX Micro Tower - Designed for CCTV Use - Intel i5 Processor, 16GB Kingston Memory, 500GB Kingston SSD, Output to 4 Monitors, with Windows 11 Pro

Key Specifications
Case StyleMicro Tower
ProcessorIntel Core i5
Processor Cores6
Storage500GB
Memory16GB
GraphicsRTX3050 6GB
Operating SoftwareWindows 11 Pro
/productImages/80/SBLOG-CCT-V4M5.JPG
/productImages/80/194565.JPG
/productImages/80/194566.JPG
/productImages/80/194567.JPG
/productImages/80/194568.JPG
Manufacturer : LOGIX
EAN : 5053118817614
Manufacturer Part Code : CCT-V4M5
Weight : 6.9 kg
Login For Pricing

Key Specifications
Case StyleMicro Tower
ProcessorIntel Core i5
Processor Cores6
Storage500GB
Memory16GB
GraphicsRTX3050 6GB
Operating SoftwareWindows 11 Pro
Manufacturer :
LOGIX

EAN :
5053118817614

Manufacturer Part Code :
CCT-V4M5

Weight :
6.9 kg
Recommended Products
1301Microsoft Windows
See details
1359Monitors
See details
1356Speakers
See details
1353Keyboard & Mice Bundles
See details

Main Features:
Discreet Antec VSK 10 micro tower case that balances excellent cooling and near-silent operation for all-day use.
Powerful 12th Gen Intel Core i5 processor with 6 cores and 12 processing threads that delivers a base speed of 2.50GHz up to a Turbo Boost of 4.40GHz.
Kingston Technology 16GB DDR4 memory (with space to expand your memory if you wish).
Kingston Technology 500GB PCIe 4.0 NVMe SSD, a superfast hard drive that will load programmes, open large files and transfer data much, much faster than a traditional mechanical hard drive.
3-year parts and collection warranty – in the event that something goes wrong or breaks down, you're covered and we'll either collect and repair your computer, or send you a replacement part so you're not without a computer.

Designed for use with CCTV systems, the LOGIX CCT-VM45 features support for four monitors and up to 16 cameras in up to 8K to monitor and record footage on a PC that is also perfect for business and home use.


Featuring the latest Gigabyte Nvidia GeForce RTX3050 dual fan graphics card, it boasts 2 x HDMI & 2 x DisplayPort connections for 720p, 1440p, 1080p, 4K or even 8K resolution. Thanks to its fast gigabit Ethernet connectivity and ample storage via a 500GB superfast Kingston PCIe NVMe SSD, there's plenty of recording space but it's also expandable with slots for up to 4 SSDs or HDDs.


It's a true workhorse, but it's been hand-built in the UK with all the care and attention of a custom-made PC, just without the flashing lights or even flashier pricetag.


Microsoft Windows 11 Pro has been installed and updated, ready-to-go. It's bloatware free, no additional software is installed, so there's no spending hours removing programs and files you don't need that slow your PC down. We've even included a Logitech MK120 keyboard and optical mouse so you can get going straight away.


Built to the highest of standards and featuring world renown brands, this PC is futureproofed and designed to last, which is why it comes with a full 3-year warranty. The World's most popular operating system, Windows 11 Pro, is preinstalled – you just need to turn it on and follow the instructions in the Quick Start Guide – Reliability and security built in.



Specification:

Operating System: Windows 11 Pro
Processor: 12th Gen Intel Core i5-12400 2.5GHz (4.40GHz boost) 6-cores & 12 threads
Memory (RAM): Kingston Technology 16GB DDR4 (upgradeable to 64GB DDR4 – additional memory slot available)
Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Storage Expansion: 2 x 3.5"/2.5" Combo & 2 x 2.5"
Graphics: Gigabyte Nvidia GeForce RTX 3050 EAGLE OC 6GB Dual Fan Graphics Card with 2 x HDMI 2.1 & 2 x DisplayPort 1.4 ports
Motherboard: Gigabyte H610M S2H V2
Case: Antec VSK 10 micro tower
Connections:
Front –
2 x USB 3.0
1 x HD Mic/Audio
Back:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
2 x DisplayPort
2 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Networking:
Wired: Realtek 1Gbps GbE LAN
Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
Warranty: 3 years - parts and collection included (UK mainland only)


Processor
Intel Core i5 12400F 6 Core Processor 12 Threads, 2.5GHz up to 4.4Ghz Turbo, Alder Lake Socket LGA 1700, 18MB Cache

Processor Cores
6

Processor Threads
12

Core Clock Speed
2.50GHz

Core Boost Speed
4.40GHz

Security & Reliability
Intel Standard Manageability (ISM) : Yes
Intel Control-Flow Enforcement Technology : Yes
Intel AES New Instructions : Yes
Secure Key : Yes
Intel OS Guard : Yes
Intel Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel Virtualization Technology : Yes

Memory
Kingston FURY Beast 16GB (2 x 8GB) 3200MHz DDR4 DIMM System Memory Black Heatsink
Voltage: 1.35V
Latency Timing: CL16
Speed: 3200MHz (PC4-25600)
2 x 8GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Kingston NV2 (SNV2S/500G) 500GB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 3000 MB/s, Write 1300 MB/s
Data storage life
320 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 3000MB/S
Write: Up to 1300MB/S

Hard Drive
No Additional Drive Fitted
2 x 2.5" or 3.5" Drive Bays Available For Expansion

Optical Drive
No Optical Drive Fitted

Graphics
Gigabyte Nvidia GeForce RTX 3050 EAGLE OC 6GB Dual Fan Graphics Card

Core Clock
1500 MHz (Reference Card: 1470 MHz)
CUDA Cores
2304
Memory Clock
14000 MHz
Memory Size
6GB
Memory Type
GDDR6
Memory Bus
96 bit
Card Bus
PCI-E 4.0
Digital Maximum Resolution
7680 x 4320
Multi-View
4

Graphics Card I/O
DisplayPort 1.4a x 2
HDMI 2.1 x 2

Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date

Card Reader
No Card Reader Fitted

Networking
Realtek GbE LAN chip (1 Gbps/100 Mbps)

Power Supply
CRONUS 500ATV FX PRO 500W PSU, 140mm Silent Cooling Fan, 80 PLUS Bronze, Non Modular, Flat Black Cables
1 x 20+4 Pin Main
1 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
2 x 6+2 Pin PCI-e

Motherboard
Gigabyte H610M S2H V2 Motherboard, LGA1700 Socket, Micro ATX, DDR4, PCIe Gen3 x4 M.2

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis
Antec VSK 10 Micro Tower 2 x USB 3.0 Black Case

Drive Bays
5.25": 0
3.5"/2.5" Combo: 2
2.5": 2

IO Ports
2 x USB 3.0
HD Mic/Audio
Power
Reset

Cooling
Cooling Front:1 x 92 mm front intake fan (optional)
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm fan included)

Dimensions
405 x 205 x 400 mm

Package Weight
6.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
Manufacturer's Website:
Warranty:
LOGIX 3-Year Return-To-Base Warranty Warranty Length: 3 years Warranty Type: Return-To-Base Warranty Coverage: LOGIX 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or faulty parts replaced. Account credit will be unavailable outside of the 30-day DOA agreement. Target will collect and return all units from either the reseller or white label from the end user. Warranty Instructions: RESELLERS - please contact Target customer service. END USERS ?? Please register your fault via the LOGIX website www.logix-systems.co.uk or email support@logix-systems.co.uk

There are currently no data sheets available for this product.

LOGIX CCTV PC with Intel i5 Processor

Review Site: Gadget Joe YouTube Channel - 23/05/2024 09:47:23

LOGIX CCTV PC with Intel i5 Processor

Todays video we take a look at the LOGIX CCTV PC with Intel i5 Processor and see why Gadget Joe says "with support for 4 monitors, if I was a small or medium-sized business, I'd buy one".

To Read The Full Review Click Here https://www.youtube.com/watch?v=Rd3fLbEnV3g&t=1223s
