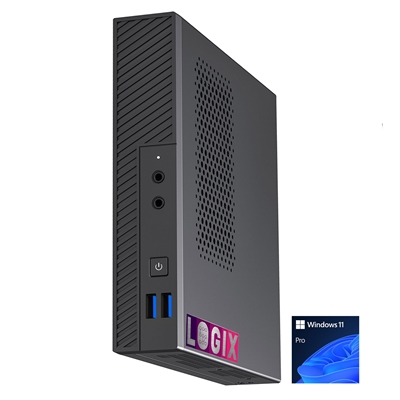

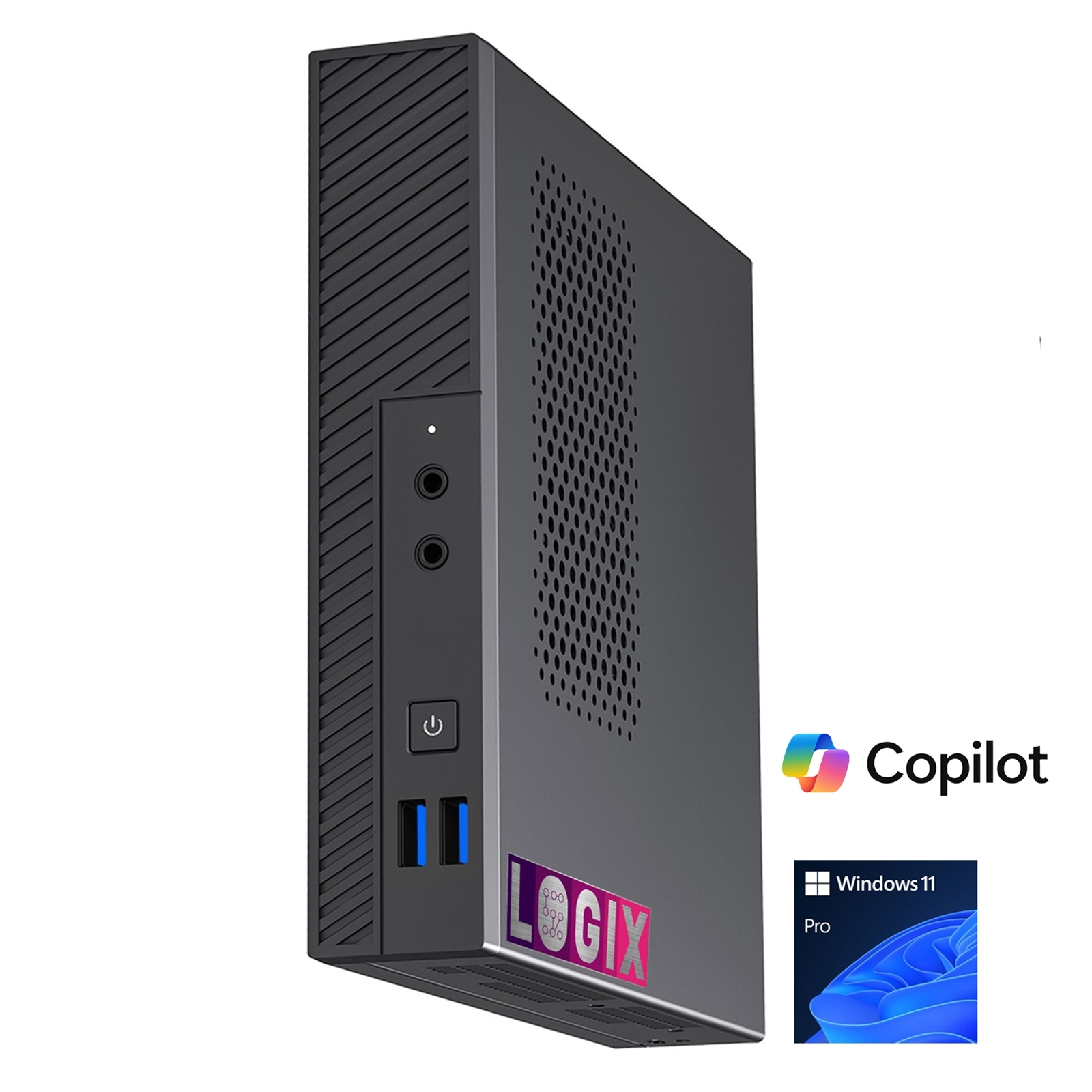

The LT100 is an ultra-thin Mini-ITX chassis, a strong and lightweight 1 Litre Desktop PC that can be easily and conveniently mounted to any VESA compatible monitor or display.
Despite the size this 1L chassis is big enough to create a compact system and the flexibility of the LT100 ensures that you can create a PC to match your requirements whether that is for business or entry-level gaming, the chassis delivers the performance and functionality you need.
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments.
Specification:
Operating System: Windows 11 Pro
Processor: Intel i5 12th Gen 6 Core
Memory (RAM): Kingston Technologies 8GB DDR4
Storage:Kingston Technologies 250GB NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 with 4K & DirectX support
Sound: 7.1 Surround Sound
Case: Small Form 1 Liter VESA Mountable
Connections:
1 x DisplayPort
1 x HDMI
2 x USB-A 3.0
2 x USB-A 2.0
2 x USB-A 3.2
1 x Ethernet
1 x Mic In/ Headphone Out
Networking:
Wired: 1Gb Realtek Ethernet
Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
Warranty: 3 years - parts and collection included
Product Description
Small Form Factor - Intel i5 12400 6 Core 12 Threads 2.50GHz (4.40GHz Boost), 8GB RAM, 250GB NVMe M.2, Windows 11 Pro - 1L VESA Mountable Small Foot Print for Home or Office Use - Pre-Built PC
Processor
Intel Core i5 12400 2.5GHz 6 Core LGA 1700 Alder Lake Processor, 12 Threads, 4.4GHz Boost, Intel UHD 730 Graphics
Processor Cores
6
Processor Threads
12
Core Clock Speed
2.50GHz
Core Boost Speed
4.40GHz
Memory
Kingston ValueRAM 8GB No Heatsink (1 x 8GB) DDR4 2666MHz SODIMM System Memory
Memory Configuration
1 x 8GB
2 Lanes (1 occupied)
SSD Drive
Kingston NV2 (SNV2S/250G) 250GB NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 3000 MB/s, Write 1300 MB/s
Format
NVMe M.2
Max Read/Write Speeds
Sequential Read : 3000MB/s
Sequential Write : 1300 MB/s
Hard Drive
N/A
Optical Drive
N/A
Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Execution Units
24
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz
Graphics Card I/O
N/A
Operating System
Microsoft Windows 11 Professional 64bit English OEI DVD Operating Software
Card Reader
N/A
Networking
1Gb Realtek Ethernet
ASUS LANGuard
Power Supply
External 120w (provided)
Motherboard
Asus PRO H610T D4-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS
Storage
2 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe
Rear I/O
2 x USB 3.2 Gen2
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 1Gb Ethernet
2 x Audio jacks
1 x DC Power (Support 19V)
Internal I/O
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 2-pin +19V
1 x SATA power
1 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x USB 2.0
1 x 2-pin internal DC power
1 x Stereo speaker
1 x DMIC 1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x Clear CMOS
1 x Chassis Intrude
1 x COM Port
1 x COM debug
1 x Front Panel Audio
1 x LVDS 1 x M.2 slot (Key E)
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
Chassis
LT100 1 Litre USB3.0 Ultra-Thin Mini-ITX Computer Case
IO Ports
2 x USB 3.0
1 x HD Audio
1 x Microphone
Dimensions
182mm x 36mm x 186mm (W x H x D)
Package Weight
2.55 kg
Warranty
3 Years collect & Return UK Main Land
Warranty:
LOGIX 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type: Return-To-Base
Warranty Coverage: LOGIX 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or faulty parts replaced. Account credit will be unavailable outside of the 30-day DOA agreement. Target will collect and return all units from either the reseller or white label from the end user.
Warranty Instructions: RESELLERS - please contact Target customer service.
END USERS â?? Please register your fault via the LOGIX website www.logix-systems.co.uk or email support@logix-systems.co.uk
