AI-Enabled Mini PC designed for everyday computing needs, featuring Intel Core Ultra processors, Arc GPU, Intel AI Boost (NPU), and toolless-access chassis.
Performance
Delivers best-in-class performance among comparable mini-PC offerings
Manageability
Most comprehensive mini-PC with Intel Core Ultra 5 125H for exceptional security, manageability, and stability
AI Enabled
Harnesses the prowess of Intel Core Ultra processors' three AI engines for high throughput, low power, and fast response
Wireless Connectivity
Delivers seamless connectivity for certified Bluetooth dongle-free experiences
Customizable
Designed for toolless chassis access making upgrades easier, safer, and faster
GENERAL
Model
90AR0062-M00090
Product Name
ASUS NUC 14 Pro Slim (RNUC14RVKU500002I)
Form Factor
Ultra Compact Form Factor (UCFF) Slim Mini PC Barebone
Colour
Black
Operating System
No OS (Barebone)
PROCESSOR
CPU
Intel Core Ultra 5 125H
Architecture
Meteor Lake-H
Cores / Threads
14 Cores (4P + 8E + 2 LP-E) / 18 Threads
Max Turbo Frequency
Up to 4.5 GHz
Cache
18MB Intel Smart Cache
AI Support
Integrated Intel AI Boost (NPU)
GRAPHICS
Graphics
Integrated Intel Arc Graphics
Max Displays Supported
Up to 4 Displays
MEMORY
Memory Type
DDR5 SO-DIMM
Memory Slots
2 x SO-DIMM
Maximum Memory
Up to 96GB (2 x 48GB)
Supported Speeds
Up to DDR5-5600
STORAGE
M.2 Slots
1 x M.2 2280 PCIe 4.0 x4 NVMe
1 x M.2 2242 PCIe 4.0 x4 NVMe
Storage Included
None
NETWORKING
Ethernet
1 x 2.5G LAN (Intel I226-V)
Wireless
Intel Wi-Fi 6E AX211
Bluetooth
Bluetooth 5.3
PORTS & CONNECTIVITY

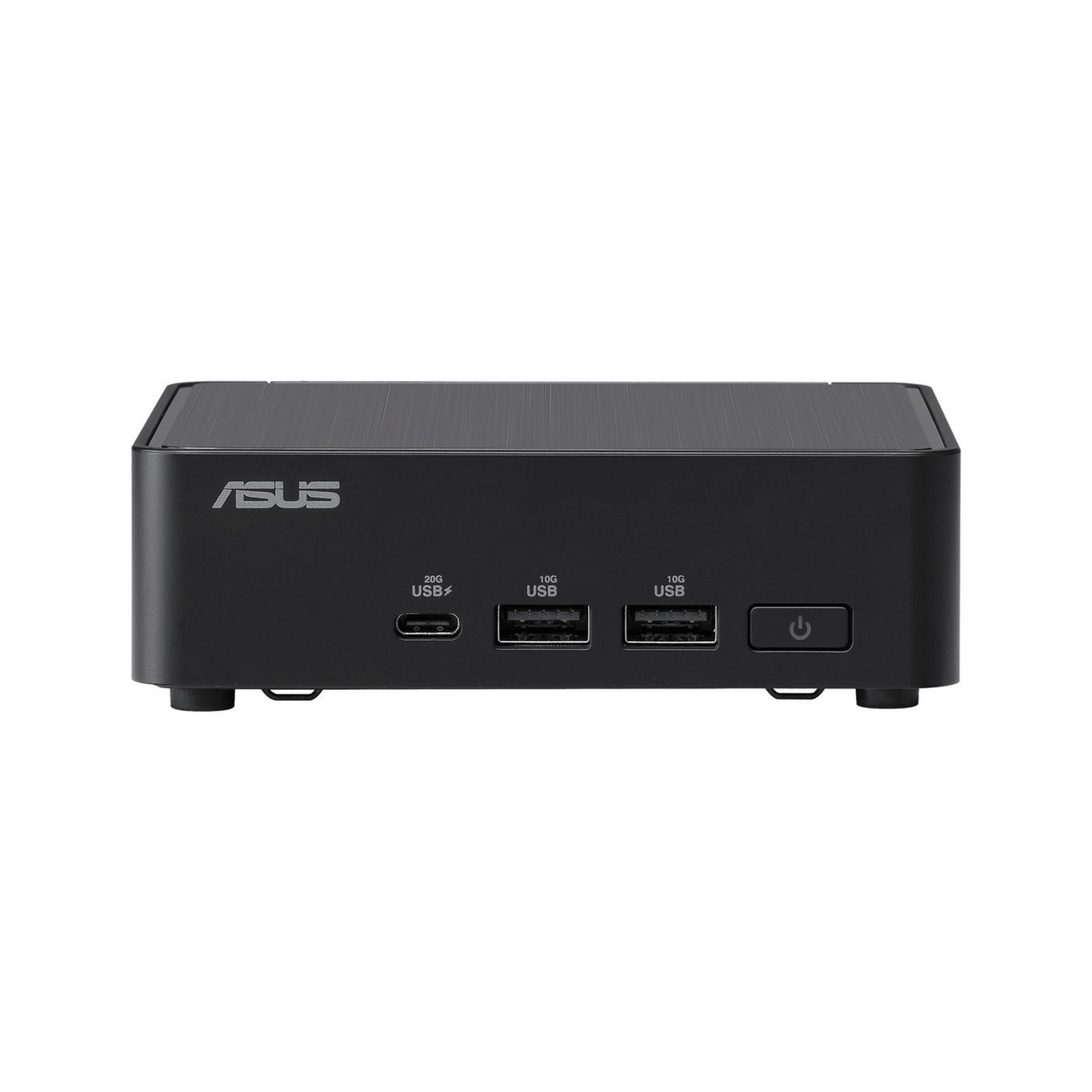

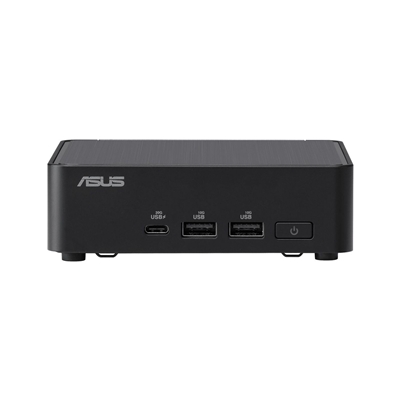

Front I/O
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
Rear I/O
2 x HDMI 2.1
2 x Thunderbolt™ 4 (DisplayPort support)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ-45 2.5G LAN
1 x DC-in
POWER
Power Adapter
External AC Adapter (~120W, region dependent)
PHYSICAL
Dimensions (W x D x H)
117 x 112 x 37 mm
Weight
Approx. 480g
FEATURES
VESA Mount Support
Yes
Security
Kensington Lock Slot
Cooling
Active Cooling System
PACKAGE CONTENTS
Included Accessories
AC Adapter
Power Cord
VESA Mount Bracket & Screws
Quick Start Guide
Warranty Card
Warranty:
1 Years Manufacturers Collect & Return Warranty. Tel: 0870 1208 340
