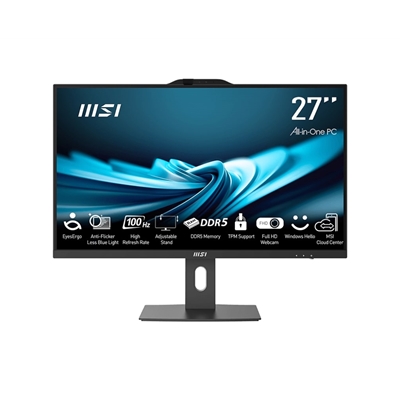

MSI All-in-One PC PRO AP272P 14M
Windows 11 Home - MSI recommends Windows 11 Pro for business
27Inch IPS Grade with 178 Degrees wide viewing angle LED Backlight (1920 x 1080 FHD)
Up to Intel Cor i7 Processor 14700 Raptor Lake processors with DDR5 memory
100Hz Refresh Rate with MSI Anti-Flicker & Less Blue Light technologies protect users' eyes
The adjustable stand and tool-less design provide a convenient working environment
Triple display with HDMI and DP output ports
Built-in FHD webcam features Windows
Hello improve users' privacy and productivity
Tobii Aware software protect users' privacy and security
MSI Cloud Center enables users to create a private cloud and backup files from Android
Features
100Hz High Refresh Rate
Experience smooth gaming with a blazing fast 100Hz refresh rate, that gives you the upperhand in fast moving games.
27 Inch FHD 1080P
View your applications, spreadsheets and more with a perfect 27 inches screen with a breathtaking viewing experience that comes with Full HD resolution
Less Blue Light
Effectively reduce blue light which could cause serious long-term damage to your eyes.
Anti-Flicker technology
MSI Anti-Flicker technology provides a very comfortable viewing experience by reducing the amount of screen flicker.
DDR5 Memory
Elevate system performance with dual-channel DDR5 technology to enhance efficiency and stability for users.
Adjustable Stand
Adjust the stand to the angle that is most suitable for you to keep yourself work comfortably.
Toolless Design
Assemble and disassemble the stand without any tools needed.
dTPM 2.0 Support
dTPM 2.0 design secures your confidential data with encryption keys.
MSI Cloud Center
MSI Cloud Center app brings you a private cloud and helps backup files of your mobile devices (Android & iOS)
VESA Mountable
To be mounted on the wall of your office & home with a VESA standard design which can make it completely invisible on a desk.
Specifications
OS
Windows 11 Home
Windows 11 Pro
CPU
Intel Core i7-12700 (25M Cache, 2.10 GHz up to 4.90 GHz)
Intel Core i5-12400 (18M Cache, 2.50 GHz up to 4.40 GHz)
Intel Core i3-12100 (12M Cache, 3.30 GHz up to 4.30 GHz)
Intel Pentium Gold G7400 (6M Cache, 3.70 GHz)
Intel Core i7-13700 (30M Cache, 2.10 GHz up to 5.20 GHz)
Intel Core i5-13400 (20M Cache, 2.50 GHz up to 4.60 GHz)
Intel Core i3-13100 (12M Cache, 3.40 GHz up to 4.50 GHz)
Intel Celeron G6900 (4M Cache, 3.40 GHz)
Intel Core i7 processor 14700 (33M Cache, 2.10 GHz up to 5.40 GHz)
Intel Core i5 processor 14400 (20M Cache, 2.50 GHz up to 4.70 GHz)
Intel Core i3 processor 14100 (12M Cache, 3.50 GHz up to 4.70 GHz)
Intel Core i5 processor 14500 (24M Cache, 2.60 GHz up to 5.00 GHz)
Chipset
Intel H610
Intel Q670
Memory
Max 64GB SO-DIMM DDR4 3200 MHz
DDR5 5600 MHz
DDR5 4800 MHz 2 Slots
Graphics
Intel UHD Graphics
Storage
1x M.2 SSD combo (NVMe PCIe Gen3 x4 / SATA)
2x SATA connectors
1x 2.5" Drive Bays
Communication
Intel I219-V Intel Wireless AC 3168 + Bluetooth v4.2
Intel Wireless AC 9462 + Bluetooth v5
Intel Wireless AX201 + Bluetooth v5
Intel Wireless AX210 + Bluetooth v5.2
Intel Wireless AX211 + Bluetooth v5.2
Intel Wireless AX211 + Bluetooth v5.3
I/O Ports (Front)
2x USB 3.2 Gen 1 (5G) Type A
2x USB 2.0 Type A
I/O Ports (Rear)
2x USB 3.2 Gen 1 (5G) Ty
2x USB 2.0 Type A
1x (v2.1) HDMI out
1x (v1.4) DP out
Kensington
Display
27" (69 cm) 597.88(H)X336.312(V) Flat IPS 1920x1080 (FHD) 0.2745(H)x0.2745(V) 250 1000:1 30~160 KHz(H) /
60~144 Hz(V) 14ms 178°(H)/178°(V) 16.7M
Input Device
Yes
Audio
2 x 3W Realtek ALC897 2.1 Channel HD Audio
AC Adapter
120W
Touch Screen
Non-touch
VESA
75 x 75 mm
Outer Carton Dimension with Stand (WxDxH)
711 x 232 x 514 27.99 x 9.13 x 20.24
Noise Level
27 db Idle mode
34 db Full loading mode
Stand
-4°~20°(+/-2°)
Mechanical and Environmental
0° C ~ 35° C ; -20° C ~ 60° C 0% ~ 85%;0% ~ 90%
Regulatory Compliance
FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
Webcam
internal webcam
|
AUDIO
|
| Audio system |
HD |
| Built-in microphone |
Yes |
| RMS rated power |
3 W |
| Built-in speaker(s) |
Yes |
| Number of speakers |
2 |
| Audio chip |
Realtek ALC897 |
CAMERA
|
| Total megapixels |
2 MP |
| Built-in camera |
Yes |
| Privacy camera |
Yes |
| Camera HD type |
Full HD |
CERTIFICATES
|
| Compliance certificates |
BSMI, CB, CE, Federal Communications Commission (FCC), UKCA, UL, cUL |
DESIGN
|
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Product colour |
Black |
| Height adjustment |
Yes |
| Pivot |
Yes |
| Cable management |
Yes |
| Country of origin |
China |
| Panel mounting interface |
75 x 75 mm |
| Housing material |
Plastic |
| Cable lock slot type |
Kensington |
| VESA mounting |
Yes |
| On/off button |
Yes |
| Frameless design |
Yes |
| Introduction year |
2024 |
DISPLAY
|
| Pixel pitch |
0.2745 x 0.2745 mm |
| Display diagonal |
68.6 cm (27") |
| Contrast ratio (typical) |
0 - 90% |
| Display brightness |
250 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Tilt angle range |
-4 - 20° |
| Touchscreen |
No |
| Tilt adjustment |
Yes |
| Anti-glare screen |
Yes |
| HD type |
Full HD |
| Panel type |
IPS |
ENERGY MANAGEMENT
|
| AC adapter power |
120 W |
GRAPHICS
|
| On-board graphics card model |
Intel UHD Graphics 770 |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
MEMORY
|
| Internal memory type |
DDR5-SDRAM |
| Memory slots |
2 |
| Maximum internal memory |
64 GB |
| Memory form factor |
DIMM/SO-DIMM |
| Memory slots type |
SO-DIMM |
| Internal memory |
0 GB |
NETWORKING
|
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Bluetooth version |
5.3 |
| Ethernet LAN |
Yes |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
OPERATING SYSTEM/SOFTWARE
|
| Operating system installed |
No |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
0 - 85% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 35 °C |
| Storage relative humidity (H-H) |
0 - 90% |
OTHER FEATURES
|
| Contrast ratio (typical) |
0 - 90% |
PACKAGING CONTENT
|
| Cables included |
AC |
PERFORMANCE
|
| Motherboard chipset |
Intel H610 |
| Trusted Platform Module (TPM) |
Yes |
| Cooling type |
Active |
| Market positioning |
Business |
| Trusted Platform Module (TPM) version |
2.0 |
| Product type |
All-in-One PC |
PORTS & INTERFACES
|
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| DC-in jack |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Number of rear USB ports |
4 |
| Number of side USB ports |
2 |
| Number of side audio ports |
2 |
PROCESSOR
|
| Processor model |
i5-14400 |
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i5 |
| Processor cores |
10 |
| Processor threads |
16 |
| Processor boost frequency |
4.7 GHz |
| Processor cache |
20 MB |
| Processor frequency |
2.5 GHz |
| Processor cache type |
Smart Cache |
| Processor base power |
65 W |
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Performance-core Max Turbo Frequency |
4.7 GHz |
STORAGE
|
| Optical drive type |
No |
| Storage media |
SSD |
WEIGHT & DIMENSIONS
|
| Package weight |
8 kg |
| Package depth |
232 mm |
| Package height |
514 mm |
| Package width |
711 mm |
| Width (with stand) |
613.5 mm |
| Height (with stand) |
457.7 mm |
| Depth (with stand) |
268 mm |
| Weight (with stand) |
4.63 kg |
