Target Components

Building a system starts with buying a case, then comes the parts that goes into it, which the cost can add up very quickly. The VSK3000 is here to provide the basic platform to start building your very own system. It's humble design and practical functionality contains the fundamentals for a performance chassis. The VSK line is designed to be a stepping stone for those who want to upgrade their system later on. Each chassis devotedly serves their purpose as a cost-effective, unforgettable part of your system building experience.

Product Description
AMD Ryzen 5 4650 PRO, 6 Core 12 Thread 3.70GHz (4.20GHz Boost), 16GB ADATA DDR4 RAM, 1TB ADATA NVMe M.2, Antec Clean Stylish Tower Case - Pre-Built PC

Processor
AMD Ryzen 5 4650 PRO, 6 Core Processor 12 Threads, 3.70GHz up to 4.20GHz Turbo, Renoir ZEN 2, 8MB Cache

Processor Cores
6

Processor Threads
12

Core Clock Speed
3.70GHz

Core Boost Speed
4.20GHz

Memory
16GB ADATA Premier AD4U32008G22-BGN 8GB (2x 8GB) DIMM System Memory, 3200MHz, DDR4, CL22

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Adata Legend 860 (SLEG-860-1000GCS) 1TB NVMe SSD, PCIe Gen4, M.2 Interface, 2280

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 5000MB/S
Write: Up to 3000MB/S

Hard Drive
N/A

Optical Drive
N/A

Graphics
Graphics Model
Radeon Graphics

Graphics Core Count
7

Graphics Frequency
1900 MHz

Graphics Card I/O
N/A

Operating System
Microsoft Windows Ready (Not supplied)

Card Reader
N/A

Networking
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Power Supply
DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection, Flat Black Cables, 85% Efficiency
Main Power Connector 24 (20+4) Pin x 1
EPS 12V Connector 8 (4+4) Pin x 1
PCI-E (6+2) Pin x 2
SATA x 5
4 Pin Peripheral x 1

Motherboard
Gigabyte A520M DS3H V2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 1x M.2 Socket, GbE LAN

Expansion Slot
1 x PCI Express x16 slot, integrated in the CPU:
Supporting PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
Supporting PCIe 3.0 x1 mode

Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Supporting for RAID 0, RAID 1, and RAID 10

Rear I/O
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

Chassis

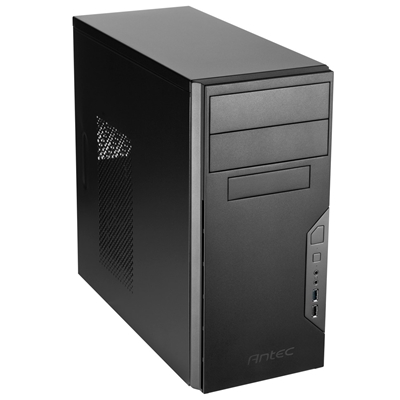

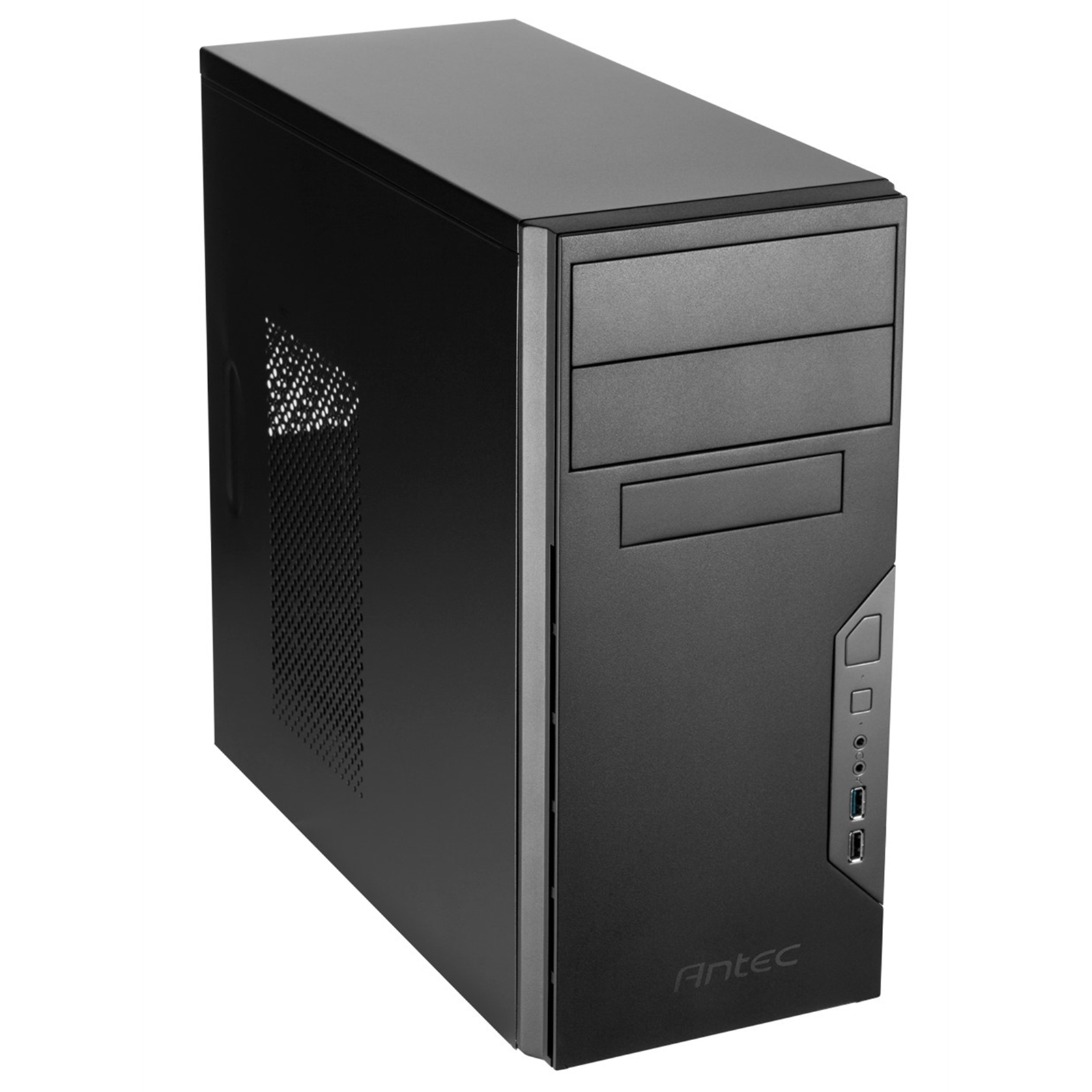

ANTEC VSK-3000B-U3/U2 Case, Home & Business, Black, Micro Tower, 1 x USB 3.0 / 1 x USB 2.0

Drive Bays
External Bays:2 x 5.25" External
1 x 3.5" External
Internal Bays:2 x 3.5" Internal
1 x 2.5" Internal

IO Ports
1 x USB 3.0
1 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone

Cooling
Cooling Front:1 x 92 mm front intake fan (optional)
Cooling Top:none
Cooling Rear:1 x 92 mm rear exhaust fan
Cooling Side:None
Cooling Bottom:None


Dimensions
173mm x 365mm x 393mm (W x H x D)

Package Weight
6.90 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
