Built for professional and Home creators. purpose built for use with CAD, Adobe or creator software. Fitted with Intel's powerful i9, 16 Core Processor, 64GB of Fast RAM, an Ultra fast NVMe and 4TB of back up storage, NVIDIA Quadro graphics card and Windows 11 PRO All backed by an industry leading 3 Year Warranty.
Professional Tower with Intel i7, 14th Gen, 20 Core 5.60GHz, 1TB Kingston NVMe, 4TB HDD Storage, 64GB DDR5 Kingston RAM, RTXA1000 8GB Quadro Graphics, Wi-Fi 6, Windows 11 Pro
Processor
Intel Core i7 14700KF 20 Core Processor, 28 Threads, 2.5GHz up to 5.6GHz Turbo Raptor Lake Socket LGA 1700 33MB Cache
Processor Cores
20
Processor Threads
28
Core Clock Speed
2.50GHz
Core Boost Speed
5.60GHz
CPU Cooling
be quiet! Silent Loop 2 AiO Liquid CPU Cooler, Universal Socket, 120mm Radiator, 2 x Silent Wings 3 120mm PWM High Speed 2200RPM Black Cooling Fan, Addressable RGB LED Pump Head with Powerful 3 Chamber Design to Significantly Reduce Turbulences & Noise
Memory
Kingston FURY Beast KF552C40BBK2-64 64GB System Memory DDR5, 5200MHz, 2 x 32GB, CL40-40-40
Voltage: 1.25V
Latency Timing: CL40
Speed: 5200MT/s (PC5-41600)
2 x 32GB DIMM Memory
Intel XMP Profile Support
Memory Configuration
2 x 32GB
4 Lanes (2 occupied)
SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280
Data storage life
320 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe
Format
Gen4 x4 NVMe
Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S
Hard Drive
Seagate Ironwolf NAS ST4000VN006 4TB 3.5" 5400RPM 256MB Cache SATA III Internal Hard Drive
Optical Drive
No Optical Drive Fitted
Graphics
PNY NVIDIA Professional RTX A1000 Graphics Card, 8GB GDDR6, 2307 CUDA Cores, 72 Tensor Cores, Single Fan Low Profile, 4x mini-DisplayPort
CUDA Cores
2304
Tensor Cores
72
RT Cores
18
Single Precision Performance
6.74 TFLOPS
RT Core Performance
13.2 TFLOPS
Tensor Performance
53.8 TFLOPS2
GPU Memory
8 GB GDDR6
Memory Interface
128-bit
Memory Bandwidth
192 GB/secc
System Interface
PCI Express 4.0 x83
Display Connectors
4x DisplayPort 1.4a
Graphics Card I/O
Mini DisplayPort x 4
Comes with Mini DP to Full DP adapters
Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date
Card Reader
No Card Reader Fitted
Networking
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Power Supply
be quiet! 650W PURE POWER 12, 80 PLUS Gold, ATX 3.1 compliant and PCIe 5.1 compatible,10-year manufacturer's warranty
1 x 12VHPWR
1 x 4+4-pin CPU
1 x 4 Pin CPU
1 x 4-pin Molex
2 x 6+2-pin PCIe
5 x SATA
Motherboard
Gigabyte B760M GAMING X WIFI6E GEN 5 INTEL Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E
Expansion Slot
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Rear I/O
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

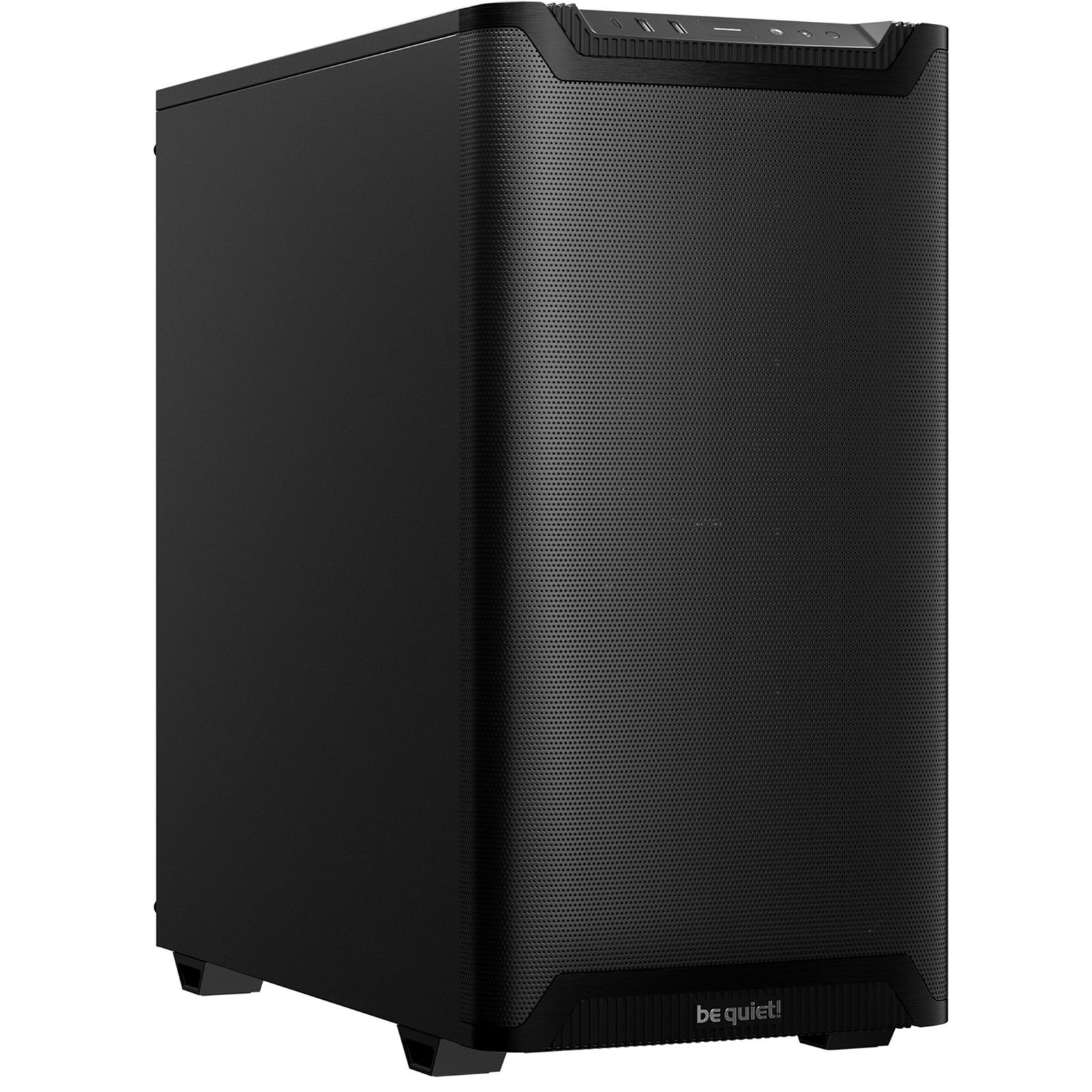

Chassis
be quiet! Pure Base 501 Case, Airflow Black, Mid Tower, 2 x USB Type-A, 1 x USB Type-C, 2 x Pure Wings 2 140mm Black PWM Fans Included, Sleek front panel and airflow
Drive Bays
Two 3.5"
Five 2.5" drives
IO Ports
USB 3.2 Gen. 2 Type C
2 x USB 3.0 Type A
Power
Reset
Cooling
Front: Up to 2 x 140mm or 3 x 120mm (2 x 140mm Pure Wings 3 fans preinstalled)
Top: Up to 2 x 120mm or 2 x 140mm
Rear: 1 x 120mm or 1x 140mm
Dimensions
463mm x 450mm x 231mm (L x W x H)
Package Weight
10.4 kg
Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
