Product Description
RGB Gaming Build Intel i9 14th Gen, 5.80GHz 24 Core, 32GB DDR5 RGB RAM, 1TB NVMe Storage, RTX4080 Super, Liquid Cooler CPU, WiFi, Windows 11 Home
Processor
Intel Core i9 14900K 24 Core Processor, 32 Threads, 3.0GHz up to 5.8GHz Turbo Raptor Lake Socket LGA 1700 36MB Cache
Processor Cores
24
Processor Threads
32
Core Clock Speed
3.50GHz
Core Boost Speed
5.80GHz
CPU Cooler
be quiet! Pure Loop 3 LX Liquid CPU Cooler, Universal Socket, 360mm Radiator, 3 x LightWings LX PWM High Speed, Stylish ARGB cooling block featuring 10 included lighting foils
Memory
Kingston FURY Beast KF556C36BBEAK2-32 32GB (2x 16GB) DIMM System Memory, 5600MHz, DDR5, CL36, Black, RGB, Intel XMP, AMD EXPO
Memory Configuration
2 x 16GB
4 Lanes (2 occupied)
SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 4000 MB/s
Format
NVMe M.2
Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S
Hard Drive
N/A
Optical Drive
N/A
Graphics
Gigabyte NVIDIA GeForce RTX 4080 SUPER GAMING OC 16G Graphics Card, 16GB GDDR6X, 10240 CUDA Cores, 2595 MHz Core Clock, Triple Fan, RGB, 3x Display Ports / 1x HDMI Port
Core Clock
2535 MHz (Reference Card: 2505 MHz)
CUDA Cores
9728
Memory Clock
22.4 Gbps
Memory Size
16 GB
Memory Type
GDDR6X
Memory Bus
256 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Graphics Card I/O
DisplayPort 1.4a x 3
HDMI 2.1a x 1
Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software
Card Reader
N/A
Networking
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Power Supply
be quiet! Dark Power 13, 1000W Fully Modular, 80 PLUS Titanium, Quad Rail, 83.3A, 135mm Fan, ATX 3.0 PSU
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
12VHPWR cables: 1
PCI-e 6+2-pin (GPU): 4
SATA: 12
PATA: 3
Motherboard
Gigabyte Z790 D AX Ultra Durable Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2.5GbE LAN, Wi-Fi 6E
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Rear I/O
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Chassis

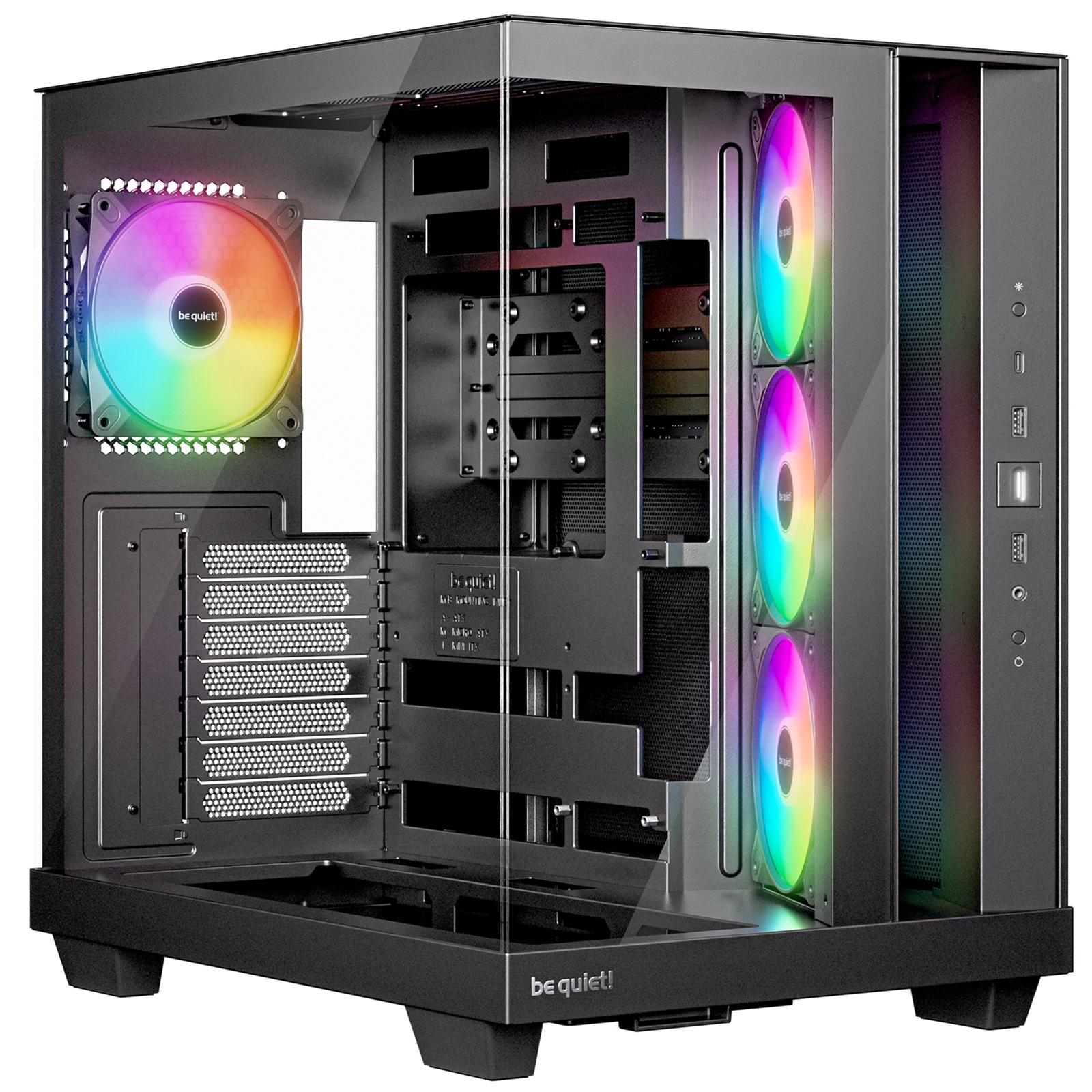

be quiet! Light Base 500 LX BGW85 Mid-Tower Case, Tempered Glass, 4 x ARGB Light Wings LX Fans, High Airflow ATX Case, USB-C 10Gbps, 400mm GPU Support, Vertical GPU Mount, Black
Drive Bays
1 x 3.5" bay
2 x 2.5" bays
IO Ports
1 x USB 3.2 Gen2 Type-C (10 Gbps)
2 x USB 3.2 Gen1 Type-A
1 x 3.5 mm audio jack combo
Cooling
Preinstalled Fans: 4 x Light Wings LX 120 mm PWM ARGB (3 side, 1 rear)
Maximum Fan Installation:
Top: 2 x 140 mm / 3 x 120 mm
Side: 3 x 120 mm
Rear: 1 x 120 mm / 1 x 140 mm
Bottom: 3 x 120 mm
Radiator Support:
Top: 120 / 240 / 280 / 360 mm
Side: 120 / 240 mm
Rear: 120 mm
Dimensions
Dimensions (L x W x H): 432 x 305 x 436 mm
Net Weight: Approx. 10.95 kg
Package Weight
12.85 kg
Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
