Target Components

Product Description
Intel i5-14400 10 Core 16 Threads 3.50GHz (4.70GHz Boost), 32GB DDR5 5600MTs RAM, 1TB WD Black NVMe - Pre-Built PC

Processor
Intel Core i5 14400 10 Core Processor 16 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 20MB Cache, 65W, Maximum Turbo Power 148W, Intel UHD 730 Graphics

Processor Cores
10

Processor Threads
16

Core Clock Speed
3.50GHz

Core Boost Speed
4.70GHz

Memory
Team Elite TED532G5600C4601 32GB (1 x 32GB) DDR5 5600MHz DIMM System Memory

Memory Configuration
1 x 32GB
2 Lanes (1 occupied)

SSD Drive
WD Black SN850X (WDS100T2X0E-00BCA0) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 73000MB/s, Write 6300MB/s

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 7300MB/S
Write: Up to 6300MB/S

Hard Drive
N/A

Optical Drive
N/A

Graphics
On-Chip Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz

Graphics Card I/O
N/A

Operating System
N/A

Card Reader
N/A

Networking
Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H

Power Supply
GAMEMAX RPG Rampage 800W PSU, 140mm Ultra Silent Fan, 80 PLUS Bronze, Non Modular, Flat Black Cables, Japanese TK Main Capacitor Fitted
1 x 24+4 Pin MB
2 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
4 x 6+2 Pin PCI-e

Motherboard
ASRock H610M-HDV/M.2+ D5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, 1x USB-C Port, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

Expansion Slot
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
1 x PCIe 3.0 x1 Slot (PCIE2)*

Storage
1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks

Rear I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
1 x USB 3.2 Gen1 Type-A Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x Addressable LED Header*
1 x CPU Fan Connector (4-pin)**
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W).
*** CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Chassis

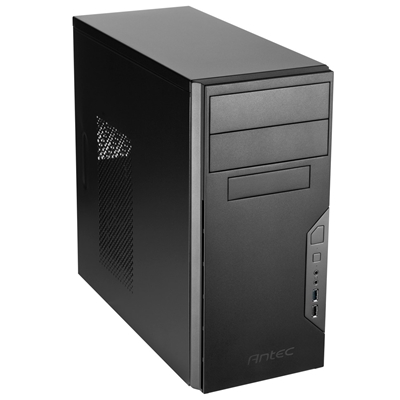

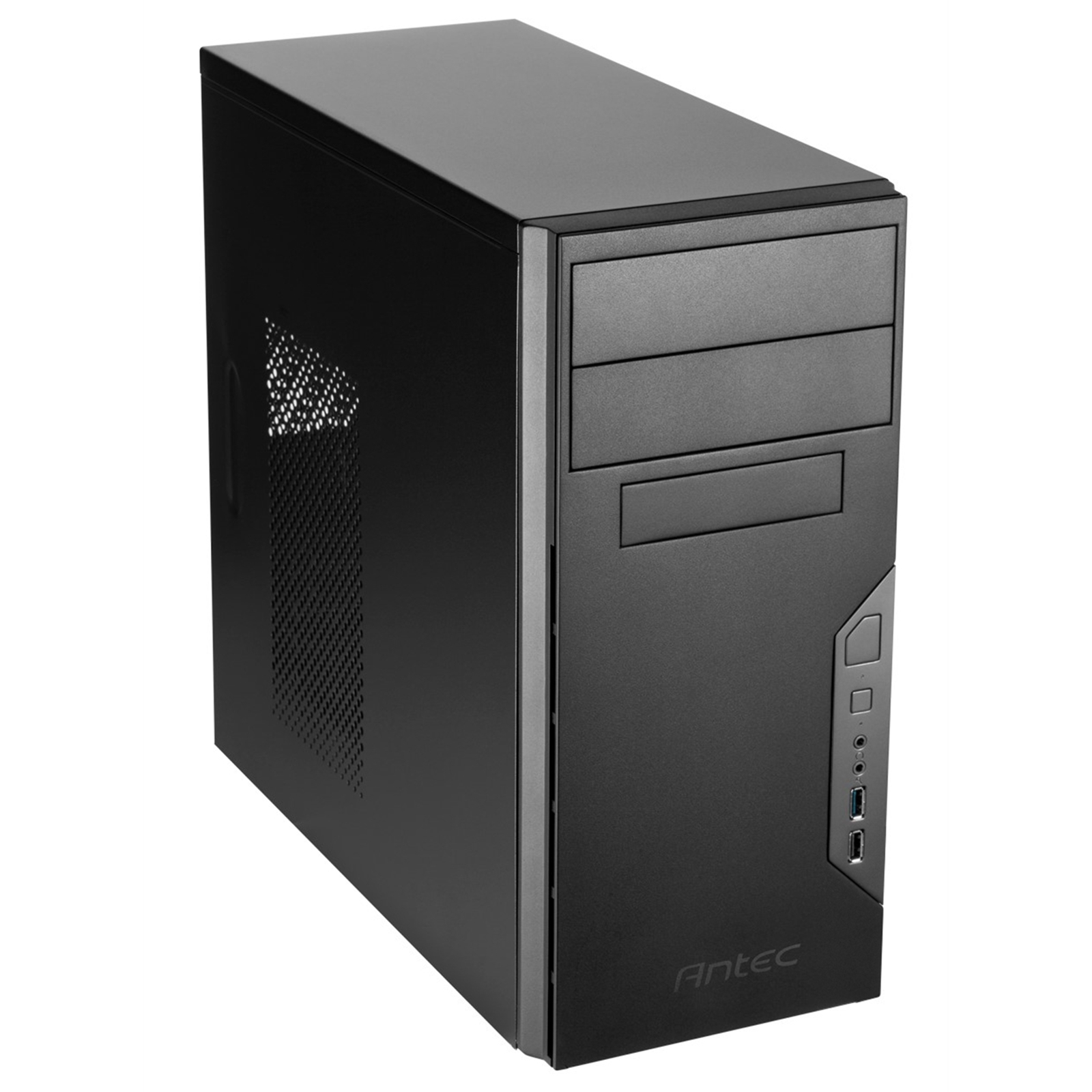

ANTEC VSK-3000B-U3/U2 Case, Home & Business, Black, Micro Tower, 1 x USB 3.0 / 1 x USB 2.0, Micro ATX

Drive Bays
External Bays:2 x 5.25" External
1 x 3.5" External
Internal Bays:2 x 3.5" Internal
1 x 2.5" Internal
Drive Bay Notes:-
Expansion Slots:4 x Full Size

IO Ports
1 x USB 3.0
1 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone

Cooling
Cooling Front:1 x 92 mm front intake fan (optional)
Cooling Top:none
Cooling Rear:1 x 92 mm rear exhaust fan
Cooling Side:None
Cooling Bottom:None

Dimensions
173mm x 365mm x 393mm (W x H x D)

Package Weight
6.90 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
