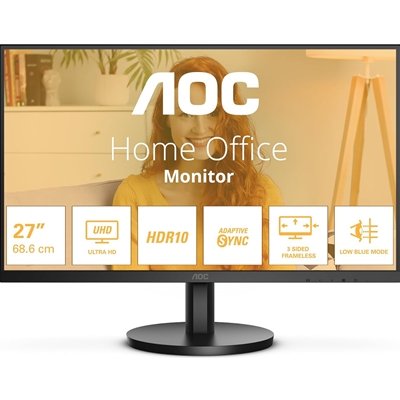

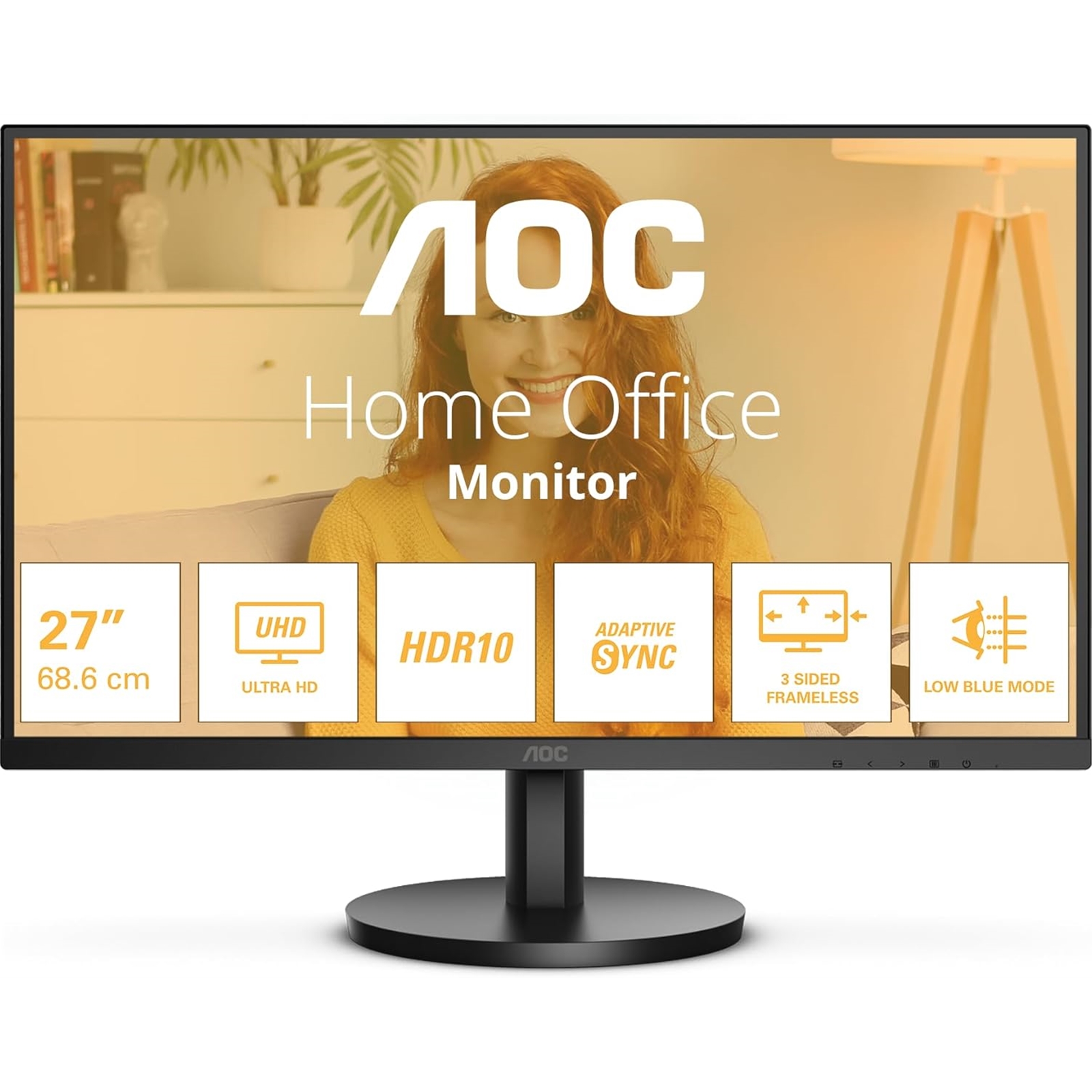

AOC U27B3M
Enhance your viewing experience with the AOC U27B3M. This 27-inch UHD monitor boasts a VA panel for deep contrasts and rich colors, alongside a 60Hz refresh rate for smooth visuals. Enjoy clear and jitter-free images thanks to AdaptiveSync technology and HDR10 support. The monitor features low blue light and flicker-free technology to reduce eye strain, making it perfect for extended use. The basic normal stand ensures a stable setup, making this monitor a reliable addition to your workspace.
UHD (4K) Resolution
4K Ultra High-Definition (3840 x 2160) resolution delivers ultra-crisp picture quality and allows users to see more on the screen at one time. This provides more screen 'real estate' and shows more detail for sharper and more brilliant images. Whether working on the next beautiful photo, or design, or even just used for productivity, users will marvel at the true, crisp image that only a UHD display can provide.
Live The Game at its Best with HDR10
HDR10 is here to enhance picture quality even further, improving the synchronization of your GPU or your console with the monitor. This creates a more realistic, immersive, and smooth gaming experience: You'll feel like stepping in the game, frame by frame.
Adaptive Sync
Adaptive Sync aligns your monitor's vertical refresh rate with the frame rate delivered by your GPU, making your gameplay and casual gaming experience even more fluid by eliminating stuttering, tearing and judder. This feature is also useful when enjoying videos and other visual media, for a smoother entertainment.
Frameless Design
Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.
Low Blue Light
AOC Lowblue Light protects you from harmful blue light which, during long sessions, has been shown to cause eye strain, headaches, and sleeping disorders. Our Lowblue Light feature reduces the harmful wavelengths emitted without sacrificing color composition, setting the experience free from the worry of eye damage.
Flicker Free
AOC Flicker-Free Technology utilises a DC (Direct Current) backlight panel, reducing flickering light levels. With eye strain and fatigue absolutely minimized, feel free to enjoy those long, intense gaming sessions in comfort!
Specification
Display
Screen Size (inch)
27
Flat / Curved
Flat
Display Viewing Area (H x W)
597.8 x 336.3 mm
Display Hardness
3H
Panel Treatment
Antiglare (AG)
Panel Resolution
3840 x 2160
Resolution Name
UHD
Aspect Ratio
16:9
Panel Type
VA
Backlight Type
WLED
Max Refresh Rate
60 Hz
Response Time GtG
4 ms
Static Contrast Ratio
3500:1
Dynamic Contrast Ratio
20M:1
Viewing Angle (CR10)
178/178
Display Colours
1.073B (8bits+FRC)
Brightness In NITS
300 cd/m2
Video Features
Sync technology (VRR)
Adaptive Sync
HDR (High Dynamic Range)
HDR 10
Blue Light Technology
Low Blue Light
Colour Space (sRGB) CIE 1931 %
128.4
Colour Space (sRGB) CIE 1976 %
124.3
Colour Space (DCI-P3) CIE 1931 %
94.6
Colour Space (DCI-P3) CIE 1976 %
99
Colour Space (Adobe RGB) CIE 1931 %
95.2
Colour Space (Adobe RGB) CIE 1976 %
106.5
Colour Space (NTSC) CIE 1931 %
90.9
Colour Space (NTSC) CIE 1976 %
108.4
Colour Space (BT 709) CIE 1931 %
128.4
Colour Space (BT 709) CIE 1976 %
124.3
Colour Space (BT 2020) CIE 1931 %
67.9
Colour Space (BT 2020) CIE 1976 %
72.1
Flicker-Free
Flicker Free
KVM
No
Cabinet Information
Bezel Type (front)
3-sided frameless
Bezel Colour (front)
Black
Bezel Finishing (front)
Texture
Cabinet Colour (backside)
Black
Cabinet Finishing (backside)
Texture
Removable Stand
Yes
Kensington Lock
Yes
Vesa Wallmount
100x100
Quick Release Function
Yes
Built-In Speakers Fire Direction
Back fire
VESA Mount Support
Yes
Ergonomic Information
Tilt
-5/20
Power Consumption
Power Supply
Internal
Power Source
100 - 240V 50/60Hz
Power Consumption on (maximum) in Watts
45
Power Consumption on (typical) in Watts
28
Power Consumption Standby in Watts
0.3
Power Consumption Off in Watts
0.3
Energy Class
F
Connectivity
HDMI
HDMI 2.0 x 1
DisplayPort
DisplayPort 1.4 x 1
Audio Output
Headphone out (3.5 mm)
Weight & Dimensions
Product dimensions incl. base (W x H x D)
614 x 460 x 229.8 mm
Product dimensions excl. base (W x H x D)
614 x 363.8 x 45.5 mm
Packaging dimensions (W x H x D)
690 x 453 x 142 mm
Gross weight incl. package
6.37kg
Net weight excl. package
3.79kg
Product without stand
3.34kg
Box Contents
HDMI cable 1.5
Power Cable
Warranty
3 Years
Warranty:
3 Years On Site Swap Out Warranty, . tel 03308284830
|
DESIGN
|
| Product colour |
Black |
| Market positioning |
Home |
| Front bezel colour |
Black |
| Frameless design |
Yes |
| Introduction year |
2024 |
DISPLAY
|
| Pixel pitch |
0.1554 x 0.1554 mm |
| Contrast ratio (typical) |
3500:1 |
| Horizontal scan range |
30 - 140 kHz |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Vertical scan range |
23 - 75 Hz |
| Viewable size, horizontal |
59.7 cm |
| Viewable size, vertical |
33.6 cm |
| Display diagonal |
68.6 cm (27") |
| Contrast ratio (typical) |
5 - 93% |
| Response time |
4 ms |
| Display resolution |
3840 x 2160 pixels |
| Display diagonal (metric) |
68.5 cm |
| Touchscreen |
No |
| Contrast ratio (dynamic) |
20000000:1 |
| LED backlight |
Yes |
| Backlight type |
W-LED |
| Maximum refresh rate |
60 Hz |
| Display technology |
LCD |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| HD type |
4K Ultra HD |
| Panel type |
VA |
| Screen shape |
Flat |
| DDC/CI |
Yes |
| Display number of colours |
1.073 billion colours |
| Surface hardness |
3H |
| sRGB coverage (typical) |
124.3% |
| Adobe RGB coverage |
106.5% |
| NTSC coverage (typical) |
108.4% |
| High Dynamic Range (HDR) supported |
Yes |
| Display brightness (typical) |
300 cd/m² |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| BT.2020 coverage |
72.1% |
ENERGY MANAGEMENT
|
| Power consumption (typical) |
28 W |
| Power supply type |
Internal |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Input current |
1.5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
45 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
F |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
26 kWh |
| Energy consumption (HDR) per 1000 hours |
38 kWh |
ERGONOMICS
|
| Plug and Play |
Yes |
| Cable lock slot |
Yes |
| Height adjustment |
No |
| Tilt angle range |
-5 - 20° |
| On Screen Display (OSD) |
Yes |
| Panel mounting interface |
100 x 100 mm |
| On Screen Display (OSD) languages |
German, Dutch, English, Spanish, Italian, Swedish, Japanese, Polish, Portuguese, Turkish, Simplified Chinese, Finnish, Korean, Ukrainian, Traditional Chinese, French, Russian, Croatian, Czech |
| Number of OSD languages |
19 |
| Tilt adjustment |
Yes |
| Cable lock slot type |
Kensington |
| VESA mounting |
Yes |
MULTIMEDIA
|
| RMS rated power |
4 W |
| Built-in speaker(s) |
Yes |
| Number of speakers |
2 |
OPERATIONAL CONDITIONS
|
| Operating altitude |
0 - 5000 m |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-25 - 55 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 93% |
| Non-operating altitude |
0 - 12192 m |
OTHER FEATURES
|
| Connection to PC |
3.5 mm |
| Touchscreen |
No |
| Introduction year |
2024 |
| Introduction month |
June |
| Warranty period |
3 year(s) |
PACKAGING CONTENT
|
| Cables included |
AC, HDMI |
| HDMI cable length |
1.5 m |
PACKAGING DATA
|
| Package weight |
6.37 kg |
| Cables included |
AC, HDMI |
| Package depth |
142 mm |
| Package height |
453 mm |
| Package width |
690 mm |
| HDMI cable length |
1.5 m |
PERFORMANCE
|
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| VESA Adaptive Sync support |
Yes |
PORTS & INTERFACES
|
| Headphone outputs |
1 |
| AC (power) in |
Yes |
| HDMI ports quantity |
2 |
| Headphone connectivity |
3.5 mm |
| HDMI version |
2.0 |
| HDMI |
Yes |
| DisplayPorts quantity |
1 |
| Built-in KVM switch |
No |
| DisplayPort version |
1.4 |
| Headphone out |
Yes |
| Built-in USB hub |
No |
TECHNICAL DETAILS
|
| Warranty period |
3 year(s) |
WEIGHT & DIMENSIONS
|
| Width (with stand) |
614 mm |
| Height (with stand) |
460 mm |
| Depth (with stand) |
229.8 mm |
| Weight (without stand) |
3.34 kg |
| Height (without stand) |
363.8 mm |
| Width (without stand) |
614 mm |
| Depth (without stand) |
45.5 mm |
| Weight (with stand) |
3.79 kg |
