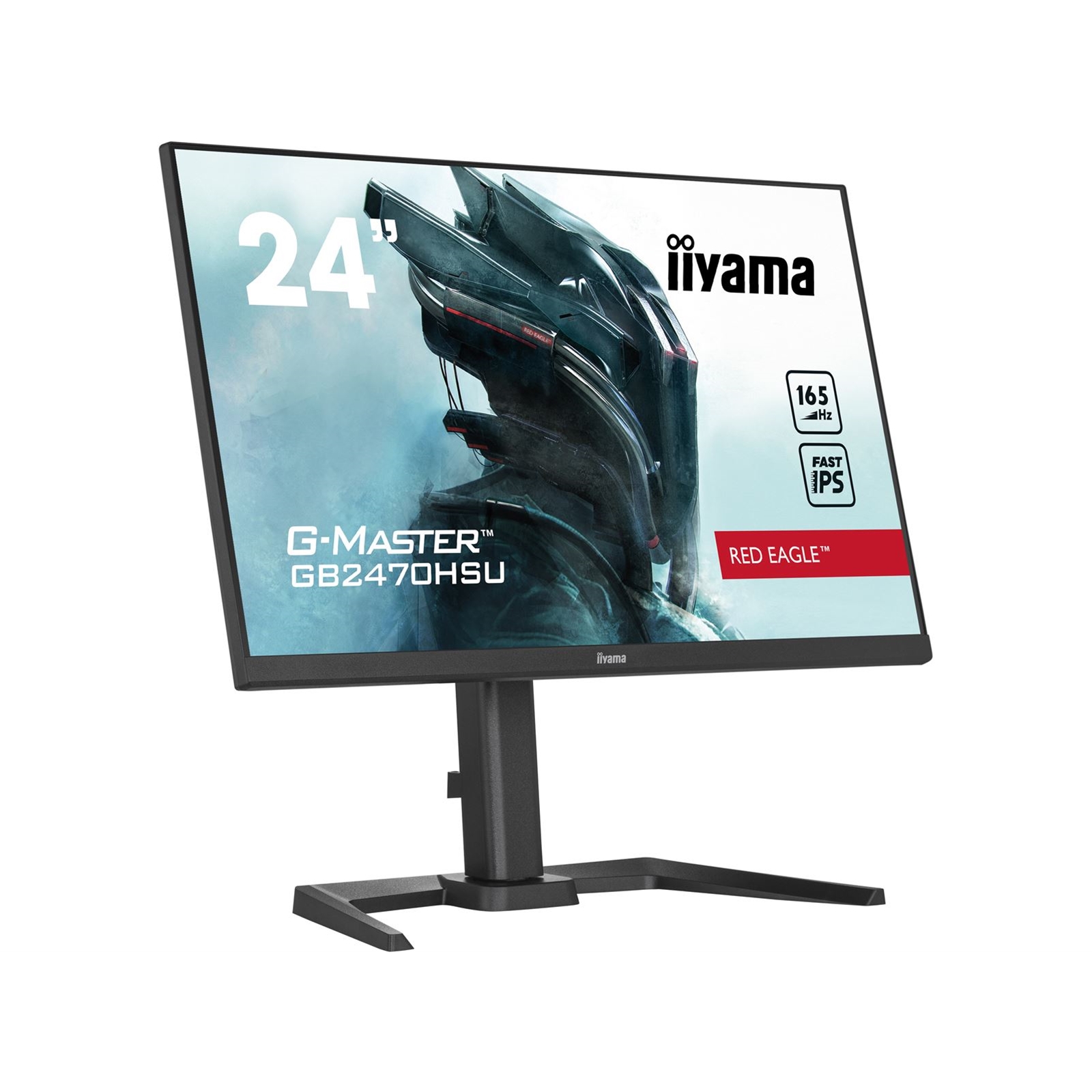

iiyama G-Master Red Eagle 23.8 Inch Gaming Monitor GB2470HSU-B5, Height Adjustable, Full HD, 165Hz, 0.8ms, FreeSync, HDMI, Display Port, USB Hub

Key Specifications
Screen Size (in)24
Max Resolution1920x1080
Refresh Rate165Hz
Response Time0.8ms
Display PortYes
Height AdjustableYes
Curved ScreenNo
/productImages/80/MOIIY-2470HSUB5.JPG
/productImages/80/198317.JPG
/productImages/80/198318.JPG
/productImages/80/198319.JPG
/productImages/80/198320.JPG
/productImages/80/198321.JPG
/productImages/80/198322.JPG
/productImages/80/198323.JPG
/productImages/80/198324.JPG
Manufacturer : IIYAMA
EAN : 4948570121397
Manufacturer Part Code : GB2470HSU-B5
Weight : 6.25 kg
Login For Pricing

Key Specifications
Screen Size (in)24
Max Resolution1920x1080
Refresh Rate165Hz
Response Time0.8ms
Display PortYes
Height AdjustableYes
Curved ScreenNo
Manufacturer :
IIYAMA

EAN :
4948570121397

Manufacturer Part Code :
GB2470HSU-B5

Weight :
6.25 kg
Recommended Products
1360Monitor Stands & Arms
See details
1336Audio Visual Cables
See details
1356Speakers
See details

iiyama G-Master Red Eagle 23.8 Inch Gaming Monitor GB2470HSU-B5, Height Adjustable, Full HD, 165Hz, 0.8ms, FreeSync, HDMI, Display Port, USB Hub

Unleash your full gaming potential with the Fast IPS GB2470HSU Red Eagle
Get the competitive edge you need to unleash your full gaming potential with the 24'' GB2470HSU offering 0.8ms MPRT and 165Hz refresh rate. Armed with FreeSync Premium you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality. Thanks to the height adjustable stand you can easily adjust the screen position to your preferences to ensure comfort during marathon gaming sessions.

Height Adjustable + PIVOT
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

FREESYNC™ TECHNOLOGY
AMD FreeSync™ technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!

PREDEFINED AND CUSTOM GAMING MODES
Have it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memmorize your own settings.

BLACK TUNER
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

DISPLAY CHARACTERISTICS

Diagonal
23.8", 60.5cm

Panel
Fast IPS IGZO, matte finish

Native resolution
1920 x 1080 @165Hz (2.1 megapixel Full HD, DisplayPort)

Aspect ratio
16:9

Panel brightness
250 cd/m²

Static contrast
1100:1

Advanced contrast
80M:1

Response time (MPRT)
0.8ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln 8bit

Horizontal Sync
15 - 195kHz

Viewable area W x H
527 x 296.5mm, 20.7 x 11.7"

Pixel pitch
0.275mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal input
HDMI x1 (v.1.4, max. 1920 x 1080 @144Hz)

DisplayPort
x1 (v.1.2, max. 1920 x 1080 @165Hz)

USB HUB
x2 (v.2.0 DC5V, 500mA)

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

FreeSync support
HDMI: 1920 x 1080 @48-144Hz, DP: 1920 x 1080 @48-165Hz

OSD languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control buttons
Signal select/ Exit, +/ Volume, -/ i-Style Colour, Menu, Power

User controls
picture adjust (contrast, brightness, overdrive, ACR, ECO, blue light reducer, Black Tuner, MBR, gamma), input select, audio adjust (volume, mute), store user settings, colour settings (colour temperature, 6-Axis, user preset), image adjust (i-Style colour, X-Res Technology, sharp & soft, HDMI RGB range, direct drive mode, video mode adjust), language, setup menu (OSD H. position, OSD V. position, OSD time out, opening logo, AMD FreeSync Premium, LED), display information, reset

Speakers
2 x 2W

Convenience
Kensington-lock™ prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
height, tilt, pivot (rotation both sides)

Height adjustment
150mm

Rotation (PIVOT function)
90°

Tilt angle
23° up; 5° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI, DP

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit
internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage
20W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D
539.5 x 385(535) x 210mm

Box dimensions W x H x D
610 x 398 x 157mm

Weight (without box)
4.5kg

Weight (with box)
6kg

EAN code
4948570121397
Manufacturer's Website:
Warranty:
3 Year Manufacturers On Site Swap Out, Tel: 01926 819 189
DESIGN
Certification CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH
Product colour Black
Market positioning Gaming
DISPLAY
Pixel pitch 0.275 x 0.275 mm
Contrast ratio (typical) 1100:1
Horizontal scan range 15 - 195 kHz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Aspect ratio 16:9
Display diagonal 61 cm (24")
Response time 0.8 ms
Display resolution 1920 x 1080 pixels
Display diagonal (metric) 60.5 cm
Touchscreen No
Contrast ratio (dynamic) 80000000:1
Maximum refresh rate 165 Hz
Display technology LED
Native aspect ratio 16:9
HD type Full HD
Panel type IPS
Screen shape Flat
Display number of colours 16.7 million colours
Display brightness (typical) 250 cd/m²
ENERGY MANAGEMENT
Power consumption (typical) 20 W
Power supply type Internal
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Energy efficiency scale A to G
Energy efficiency class (SDR) E
Energy efficiency class (HDR) Not available
Energy consumption (SDR) per 1000 hours 19 kWh
European Product Registry for Energy Labelling (EPREL) code 1340634
ERGONOMICS
Cable lock slot Yes
Height adjustment Yes
Tilt angle range -5 - 23°
Pivot Yes
On Screen Display (OSD) Yes
Cable management Yes
Panel mounting interface 100 x 100 mm
On Screen Display (OSD) languages Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Pivot angle 0 - 90°
Tilt adjustment Yes
VESA mounting Yes
Adjustable height (max) 15 cm
MULTIMEDIA
RMS rated power 4 W
Built-in speaker(s) Yes
Built-in camera No
Number of speakers 2
OTHER FEATURES
Certification CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH
Compatible operating systems Mac
Touchscreen No
PACKAGING CONTENT
Cables included AC, DisplayPort, HDMI, USB
Quick start guide Yes
PACKAGING DATA
Package weight 6 kg
Cables included AC, DisplayPort, HDMI, USB
Package depth 157 mm
Package height 398 mm
Package width 610 mm
Quick start guide Yes
Package type Box
PERFORMANCE
Compatible operating systems Mac
NVIDIA G-SYNC No
AMD FreeSync Yes
Flicker-free technology Yes
PORTS & INTERFACES
Headphone outputs 1
HDMI ports quantity 1
HDMI version 1.4
HDMI Yes
HDCP Yes
DisplayPorts quantity 1
DisplayPort version 1.2
Headphone out Yes
Built-in USB hub Yes
USB hub version 2.0
USB Type-A downstream ports quantity 2
SUSTAINABILITY
European Product Registry for Energy Labelling (EPREL) code 1340634
WEIGHT & DIMENSIONS
Width (with stand) 539.5 mm
Height (with stand) 535 mm
Depth (with stand) 210 mm
Weight (with stand) 4.5 kg
