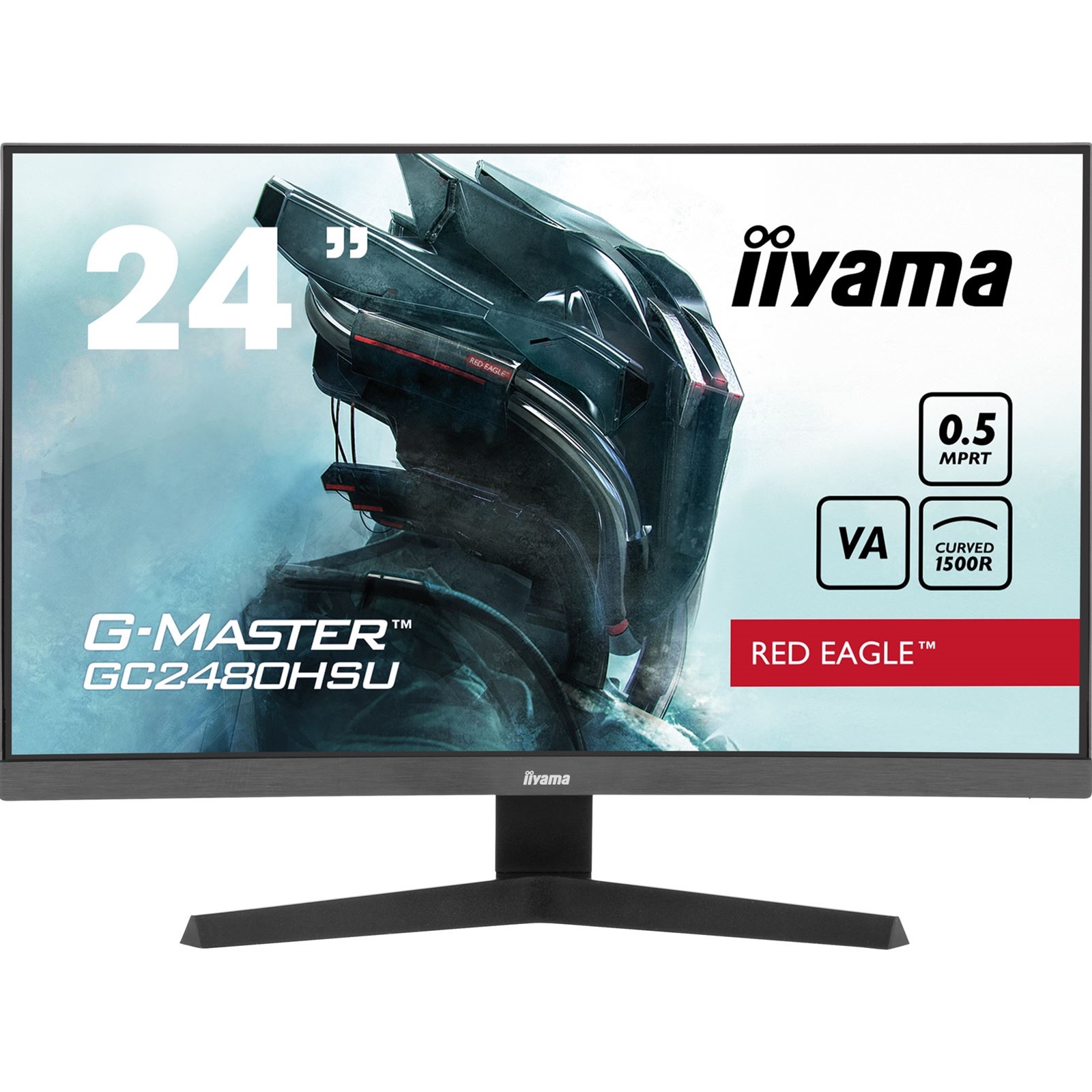

iiyama G-Master Red Eagle curved gaming monitor GC2480HSU-B1

Immerse yourself in the game with the curved GC2480HSU Red Eagle with 180Hz refresh rate

The 1500R curved VA panel with 180Hz refresh rate and 0.5ms MPRT gives you an immersive viewing experience and guarantees superb image quality.
Enhanced by the Black Tuner function, it provides detailed visibility in dark scenes, allowing you to spot every detail, even in low-light settings.

Features

FREESYNC TECHNOLOGY
AMD FreeSync technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!

PREDEFINED AND CUSTOM GAMING MODES
Have it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memorize your own settings.

BLACK TUNER
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

VESA
VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

CURVED DESIGN
Inspired by the curve of the human eye, the 1800R curvature of the screen guarantees a much more realistic viewing experience allowing you to really immerse yourself in the game.

FLICKER-FREE + BLUE LIGHT
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

VA MATRIX
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

Technical Information

DISPLAY CHARACTERISTICS

Diagonal
23.6", 59.8cm

Panel
VA

Curved
1500R

Native resolution
1920 x 1080 @180Hz (2.1 megapixel)

Aspect ratio
16:9

Panel brightness
300 cd/m²

Static contrast
3000:1

Advanced contrast
80M:1

Response time (MPRT)
0.5ms

Viewing zone horizontal/vertical
178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln (sRGB: 96%, NTSC: 72%)

Horizontal Sync
30 - 200kHz

Viewable area W x H
521.4 x 293.3mm, 20.5 x 11.5"

Pixel pitch
0.271mm

Colour
matte, black

INTERFACES / CONNECTORS / CONTROLS

Signal input
HDMI x2 (v. 2.0)

DisplayPort
x1 (v. 1.4)

USB HUB
x2 (v.2.0 (DC5V, 500mA))

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
yes

HDR
yes

OSD languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control buttons
Power, Menu (Up / Submenu, Down / Input Select, Left / ECO, Right / Volume)

User controls
picture adjust (contrast, brightness, OD, ACR, ECO, black tuner, colour saturation, motion blur red., AMD FreeSync), input source, audio settings (volume, mute audio), store user settings (user modes), colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, x-res technology, sharpness, RGB range, video mode adjust), language, setup menu (OSD horizontal position, OSD vertical position, OSD time, opening logo, power LED), information, recall

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
tilt

Tilt angle
22 Degrees up; 4 Degrees down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power (1.5m), USB (1.5m), HDMI (1.5m)

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit
internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage
21W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC above 0.1%
Lead

DIMENSIONS / WEIGHT

Product dimensions
W x H x D 535.5 x 394.5 x 202mm

Box dimensions
W x H x D 622 x 408 x 171mm

Weight
(without box) 3.8kg
(with box) 6kg
