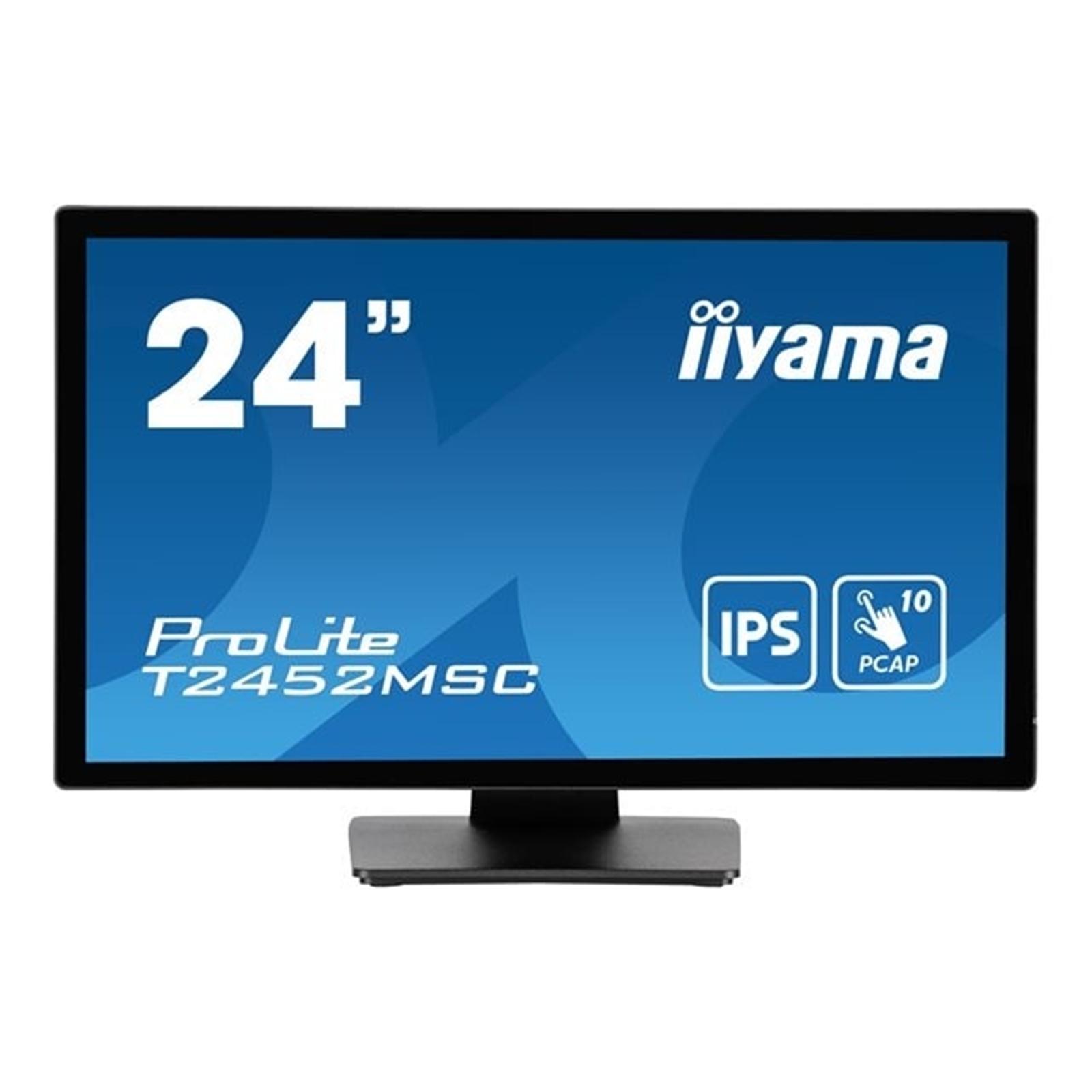

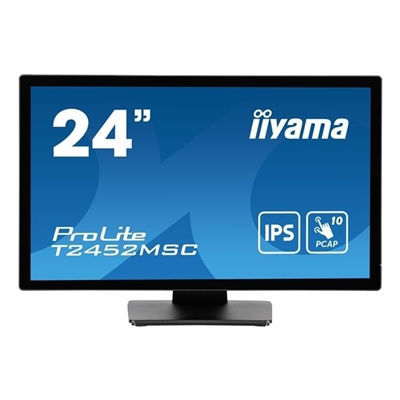

ProLite T2452MSC-B1
23.8? PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2452MSC-B1 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2452MSC-B1 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Touch Technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Anti-Fingerprint Coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Scratch Resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Speakers
This LED monitor is equipped with two stereo speakers.
Display
Design
Edge to edge glass
Diagonal
23.8.", 60.5cm
Panel
IPS
Native Resolution
1920 x 1080 @60Hz (2.1 megapixel Full HD)
Aspect Ratio
16:9
Panel Brightness
400 cd/m²
Brightness
360 cd/m² with touch
Light Transmittance
90%
Static Contrast
1000:1
Response Time (GTG)
5ms
Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour Support
16.7mln 8bit
Horizontal Sync
30 - 83kHz
Viewable Area (W x H)
527 x 296.5 mm, 20.7 x 11.7"
Pixel Pitch
0.274mm
Bezel Colour and Finish
black, matte
Touch
Touch Technology
Projective capacitive
Touch Points
10 (HID, only with supported OS)
Touch Accuracy
+- 2mm
Touch Method
stylus, finger, glove (latex)
Touch Interface
USB
Supported Operating Systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm Rejection
Yes
Interfaces / Connectors / Controls
Digital Signal Input
HDMI x1
DisplayPort x1
Audio Output
Mini jack x1
Speakers 2 x 1W
USB HUB
x2 (v.3.2 (Gen 1, 5Gbit))
Features
Extra
anti-fingerprint coating
Glass Hardness
7H
OSD Key Lock
yes
General
OSD Languages
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL
Control Buttons
Menu, scroll up / ECO, scroll down / volume, select / input, power
User Controls
Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset,
DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Convenience
Kensington-lock prepared
Blue Light Reducer
yes
Flicker Free
yes
Plug&Play
DDC2B
Mechanical
Tilt Angle
90° up; 5° down
VESA Mounting
100 x 100 mm
MTBF
50000 hours (excluding backlight)
Accessories Included
Cables
power, USB, HDMI
Guides
quick start guide, safety guide
Power Management
Power Supply Unit
internal
Power Supply
AC 100 - 240V, 50/60Hz
Power Usage
18W typical, 1.5W stand by, 0.3W off mode
Sustainability
Regulations
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Energy Efficiency Class (Regulation (EU) 2017/1369)
E
REACH SVHC
above 0.1%: Lead
Product Dimensions (W x H x D)
567 x 385 x 253.5 mm
Box Dimensions (W x H x D)
635 x 405 x 143 mm
Weight (without box)
5.6kg
Weight (with box)
7.2kg
