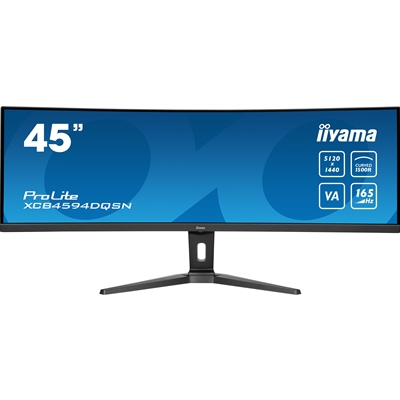

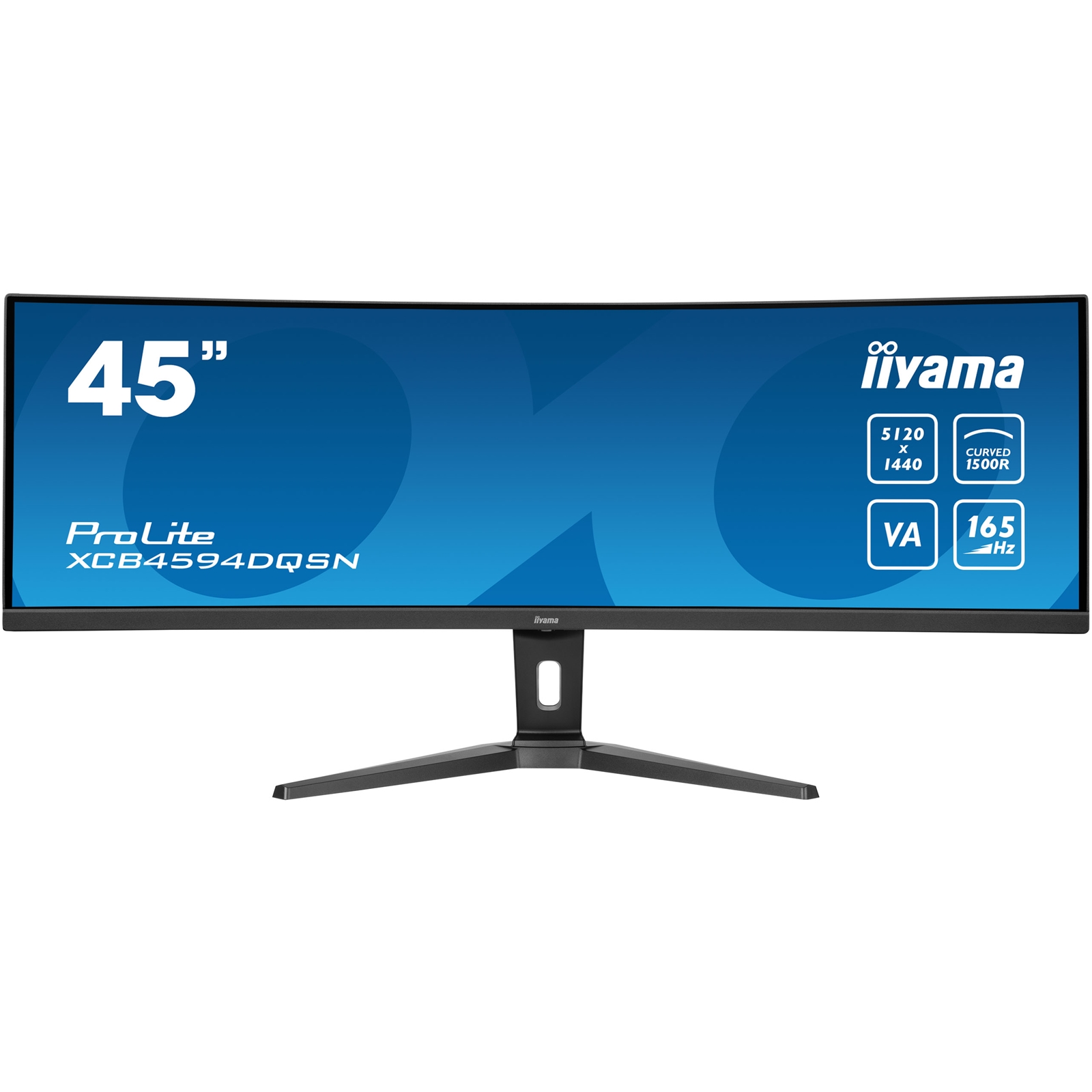

45 Inch Dual QHD VA panel with KVM switch, USB-C dock and RJ45 (LAN) and height adjustable stand
The XCB4594DQSN features a 1500R curved VA panel with a 165Hz refresh rate, 0.8ms MPRT, and a 5120x1140 (DQHD) resolution for superb image quality. The KVM switch allows you to connect multiple computers that can be operated over one console (monitor, keyboard, mouse). The USB-C dock simplifies setup with one cable for laptop signal transmission, power, and charging. Connecting to the Internet via LAN automatically links your notebook to the network. The VA panel ensures expansive viewing angles and vivid colours, and the 1500R curvature minimizes eye strain for a lifelike and fully immersive gaming experience. The dual QHD resolution provides sharp visuals, and the height-adjustable stand adds a comfortable and highly ergonomic experience.

DQHD
Ultra-wide 32:9 monitors with a DQHD 5120x1440 resolution, also called dual QHD, deliver razor-sharp images. They make it possible to divide the workspace into multiple windows and simultaneously open all the documents you need.

CURVED DESIGN 1500R
The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you'll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.

USB-C Dock
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop to the USB C dock in the monitor.

KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.

VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

Display

Design
3-side borderless

Diagonal
44.5", 113cm

Panel
VA

Curved
1500R

Native Resolution
5120 x 1440 @165Hz (7.4 megapixel DQHD)

Aspect Ratio
32:9

Panel Brightness
450 cd/m²

Static Contrast
3000:1

Advanced Contrast
80M:1

Response Time (MPRT)
0.8ms

Viewing Zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour Support
16.7mln 8bit (sRGB: 100%; NTSC: 80%)

Horizontal Sync
30 - 260kHz

Viewable Area (W x H)
1087.5 x 305.9mm, 42.8 x 12"

Pixel Pitch
0.212mm

Colour
matte, black

Interfaces / Connectors / Controls

Signal Input
HDMI x2 (v.2.1)
DisplayPort x1 (v.1.4)
USB-C x1 (Power delivery 90W)

USB HUB
x3 (v.3.2 (Gen 1, 5Gbit; DC5V, 900mA))

USB-C DOCK
x1 (Power delivery 90W, LAN, USB v. 3.2 (Gen 1, 5Gbit))

HDCP
yes

Headphone Connector
yes

RJ45 (LAN)
x1

Features

KVM Switch
yes

Blue Light Reducer
yes

Flicker Free
yes

Adaptive Sync Support
yes

Extra
i-Style Colour

HDR
400

OSD Languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL

Control Buttons
Navigation (power) button: Center (Menu/Execution), Down (i-Style Colour), Up (Input Select), Right (Volume), Left (ECO Mode), Power

User Controls
picture (brightness, contrast, black tuner, sharpness, OD, ACR, ECO Mode, X-Res technology), colour (warm, normal, cool, user colour, i-Style colour, blue light reducer), input select, PBP (PBP mode, sub win input, PBP swap, audio input), audio (volume, mute), language, OSD settings (OSD H. position, OSD V. position, OSD background, OSD time out, information), setup menu 1 (MST, DSC, KVM, USB-C, USB BC), setup menu 2 (video mode adjust, HDMI RGB range, direct drive, adaptive sync, MBR, HDR, opening logo, LED, memory recall)

Speakers
2 x 3W

Convenience
Kensington-lock prepared, DDC/CI, DDC2B, Mac OSX

Mechanical

Display Position Adjustments
height, tilt

Height Adjustment
130mm

Tilt Angle
20° up; 3° down

VESA Mounting
100 x 100mm, 200 x 100mm

Cable Management System
yes

Accessories Included

Cables
power, USB, HDMI, DP, USB-C

Other
quick start guide, safety guide

Power Management

Power Supply Unit
internal

Power Supply
AC 100 - 240V, 50/60Hz

Power Usage
60W typical, 0.5W stand by, 0.3W off mode

Sustainability

Regulations
CE, TUV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA

Energy Efficiency Class (Regulation (EU) 2017/1369)
F

REACH SVHC
above 0.1%: Lead

Weight & Dimensions

Product Dimensions (W x H x D)
1090 x 409 (539) x 275mm

Box Dimensions (W x H x D)
1260 x 470 x 315mm

Weight (without box)
11.2kg

Weight (with box)
16.4kg
