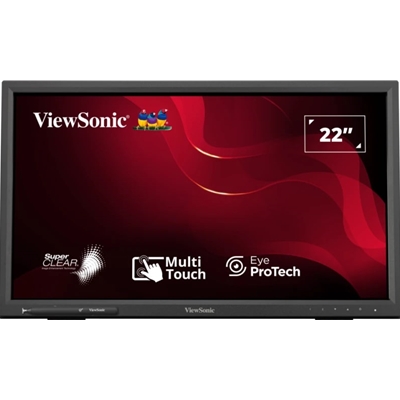

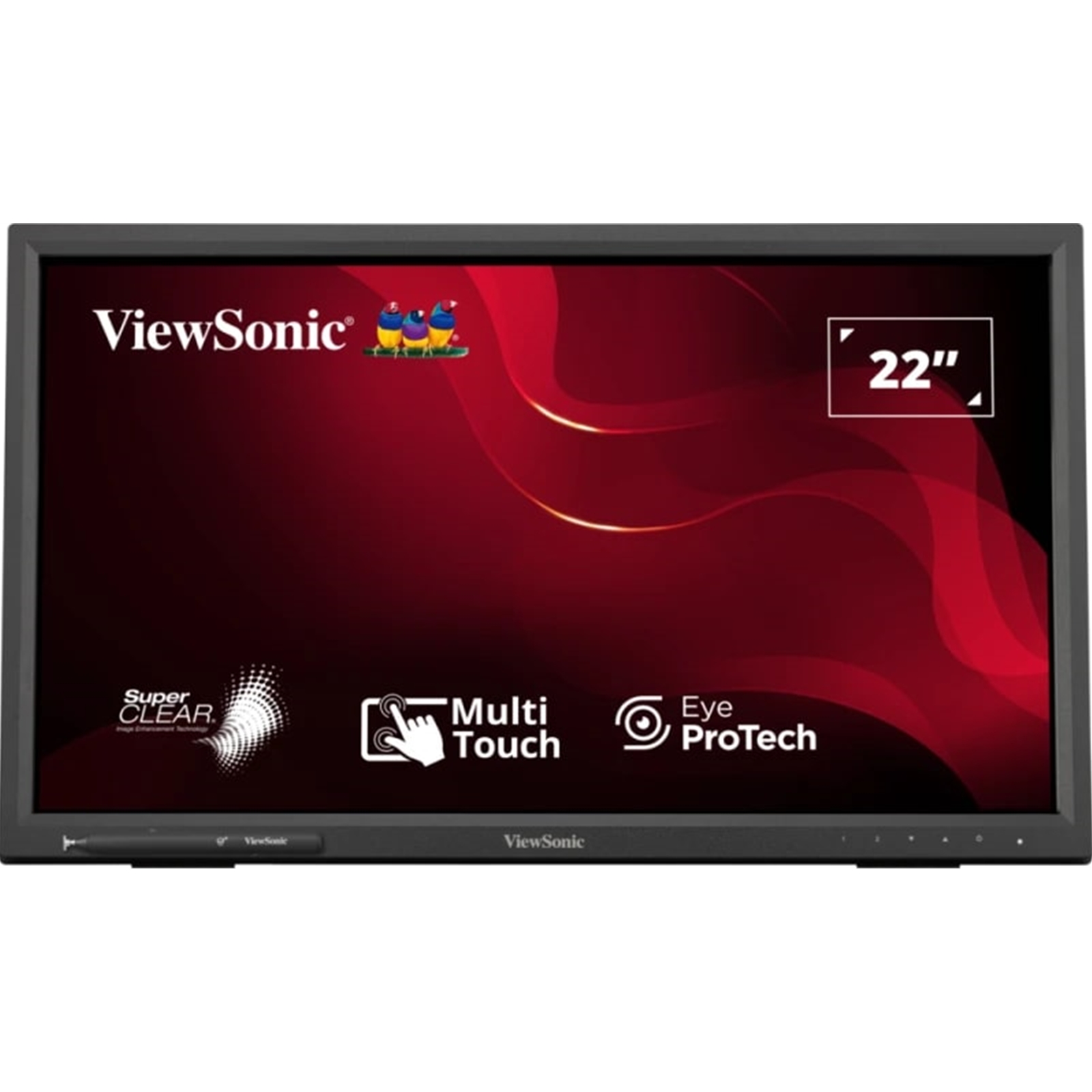

Viewsonic TD2223 22 " IR Touch Monitor
The ViewSonic TD2223 is a 22? IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What's more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it's resistant to surface damage caused by sharp objects.
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.
Dimension & I/O Ports
Conveniently mount the monitor to your preference by utilising the 100mm x 100mm VESA-compatible mount design.
Specifications
Display
Display Size (in.):
22
Viewable Area (in.):
21.5
Panel Type:
VA Technology
Resolution:
1920 x 1080
Resolution Type:
FHD (Full HD)
Static Contrast Ratio:
3,000:1 (typ)
Dynamic Contrast Ratio:
1.4
High Dynamic Range:
20M:1
Light Source:
LED
Brightness:
250 cd/m² (typ)
Colors:
16.7M
Color Space Support:
8 bit true
Aspect Ratio:
16:9
Response Time (Typical GTG):
6.5ms
Response Time (GTG w/OD):
6.5ms
Viewing Angles:
178º horizontal, 178º vertical
Backlight Life (Hours):
30000 Hrs (Min)
Curvature:
Flat
Refresh Rate (Hz):
75
Low Blue Light:
Software solution
Flicker-Free:
Yes
Color Gamut:
NTSC: 72% size (Typ)
sRGB:
104% size (Typ)
Pixel Size:
0.249 mm (H) x 0.241 mm (V)
Touch Screen:
IR, 10-point multi-touch
Surface Treatment:
Glossy, Hard Coating (7H)
Cover Glass Thickness:
2mm
Compatibility
PC Resolution (max):
1920x1080
Mac Resolution (max):
1920x1080
PC Operating System:
Windows 10/11 certified; macOS tested
Mac Resolution (min):
1920x1080
Connector
VGA:
1
USB 2.0 Type A:
2
USB 2.0 Type B:
1
3.5mm Audio In:
1
3.5mm Audio Out:
1
HDMI 1.4:
1
DVI-D:
1
Power in:
3-pin Socket (IEC C14 / CEE22)
Audio
Internal Speakers:
2Watts x2
Power
Eco Mode (Conserve): 13W
Eco Mode (optimized): 16W
Consumption (typical): 18.5W
Consumption (max): 21.8W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply:
Internal Power Supply
Additional Hardware
Kensington Lock Slot
1
Cable Organization
Yes
Controls
Physical Controls:
1, 2, Up, Down, Power
On Screen Display:
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal:
RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
Frequency Vertical:
RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz
Video Input
Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Tilt (Forward/Back): 20º / 40º
Weight (imperial)
Net (lbs): 9.3
Net Without Stand (lbs): 8
Gross (lbs): 12.6
Weight (metric)
Net (kg): 4.2
Net Without Stand (kg): 3.7
Gross (kg): 5.7
Dimensions (imperial) (wxhxd)
Packaging (in.): 22.8 x 15.9 x 6.4
Physical (in.): 20.4 x 12.9 x 4
Physical Without Stand (in.): 20.4 x 12.1 x 2.4
Dimensions (metric) (wxhxd)
Packaging (mm): 580x 405 x 162
Physical (mm): 519 x 329 x 101
Physical Without Stand (mm): 519 x 308x 61
|
DESIGN
|
| Certification |
cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Product colour |
Black |
| Glass thickness |
2 mm |
DISPLAY
|
| Pixel pitch |
0.248 x 0.248 mm |
| Contrast ratio (typical) |
1000:1 |
| Horizontal scan range |
24 - 82 kHz |
| Viewing angle, horizontal |
170° |
| Viewing angle, vertical |
160° |
| Vertical scan range |
50 - 75 Hz |
| Display diagonal |
54.6 cm (21.5") |
| Display brightness |
250 cd/m² |
| Response time |
5 ms |
| Display resolution |
1920 x 1080 pixels |
| Touchscreen |
Yes |
| Contrast ratio (dynamic) |
20000000:1 |
| Maximum refresh rate |
75 Hz |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Infrared |
| Touchscreen type |
Multi-user |
| Display technology |
LED |
| Number of simultaneous touchpoints |
10 |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Panel type |
TN |
| Screen shape |
Flat |
| Display number of colours |
16.78 million colours |
ENERGY MANAGEMENT
|
| Power consumption (typical) |
12.5 W |
| Power supply type |
AC |
| Power consumption (standby) |
0.5 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100-240 V |
| Power consumption (max) |
14 W |
| Energy efficiency class (SDR) |
E |
| Energy consumption (SDR) per 1000 hours |
14 kWh |
| European Product Registry for Energy Labelling (EPREL) code |
368718 |
ERGONOMICS
|
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Tilt angle range |
22 - 38° |
| Panel mounting interface |
100 x 100 mm |
| Tilt adjustment |
Yes |
| Cable lock slot type |
Kensington |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85285210 |
MULTIMEDIA
|
| Built-in microphone |
No |
| RMS rated power |
4 W |
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
20 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
OTHER FEATURES
|
| Certification |
cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Touchscreen |
Yes |
| Touchscreen type |
Multi-user |
| Number of simultaneous touchpoints |
10 |
| Compliance certificates |
REACH, RoHS |
PACKAGING CONTENT
|
| Cables included |
AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Stand included |
Yes |
PACKAGING DATA
|
| Package weight |
6 kg |
| Cables included |
AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Package depth |
164 mm |
| Package height |
405 mm |
| Package width |
580 mm |
| Stand included |
Yes |
PERFORMANCE
|
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
PORTS & INTERFACES
|
| Headphone outputs |
1 |
| Microphone in |
Yes |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| HDMI |
Yes |
| Headphone out |
Yes |
| Built-in USB hub |
Yes |
| USB upstream port type |
USB Type-B |
| Number of upstream ports |
1 |
| USB Type-A downstream ports quantity |
2 |
SUSTAINABILITY
|
| Sustainability certificates |
ENERGY STAR |
| European Product Registry for Energy Labelling (EPREL) code |
368718 |
TECHNICAL DETAILS
|
| Compliance certificates |
REACH, RoHS |
WEIGHT & DIMENSIONS
|
| Width (with stand) |
521 mm |
| Height (with stand) |
334 mm |
| Depth (with stand) |
101 mm |
| Weight (without stand) |
3.9 kg |
| Height (without stand) |
318 mm |
| Width (without stand) |
521 mm |
| Depth (without stand) |
61 mm |
| Weight (with stand) |
4.5 kg |
