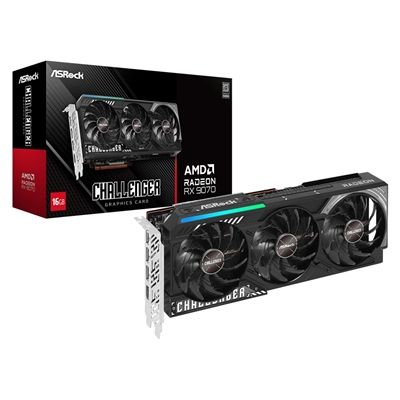

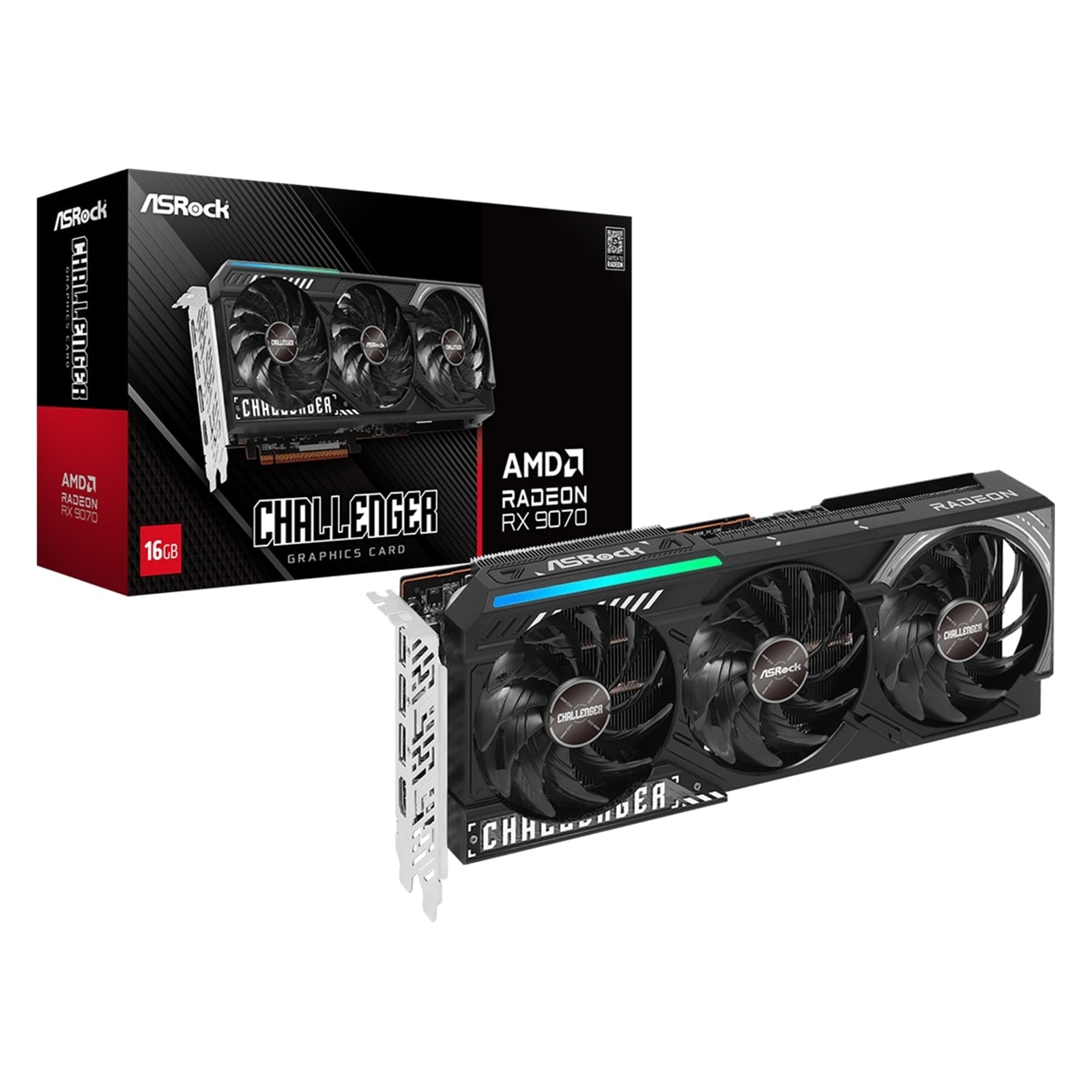

AMD Radeon RX 9070 Challenger 16GB
ALL YOU NEED FOR ULTRA FAST GAMING
Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX6 to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX Super Resolution, delivering an immersive gaming experience now and for years to come.
SUPERPOWERED VISUALS ENHANCED WITH AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display Engine.
INSTANT PERFORMANCE FOR EVERY MOVE
Take the instant performance of AMD Radeon to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX6 in one click to unleash the true potential of your Radeon GPU, leveraging the combined forces of AMD Radeon Super Resolution1, AMD Fluid Motion Frames 2, AMD Radeon Anti-Lag and AMD Radeon Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.
FUTURE READY TECH WITH AI
AMD Radeon delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen 9000 series processors featuring PCI Express Gen 5 support and the latest AMD Smart Access Memory technology3 to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.
Specifications
Graphics Engine
AMD Radeon RX 9070
Bus Standard
PCI Express5.0 x16
DirectX
12 Ultimate
OpenGL
4.6
Memory
GDDR6 16GB
Engine Clock
Boost Clock: Up to 2520 MHz
Game Clock: 2070 MHz
Stream Processors
3584
Compute Units
56
Memory Clock
20Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution: 7680 x 4320
Interface
1 x HDMI x 2.1b
3 x DisplayPort x 2.1a
HDCP
Yes
Multi-View
4
Recommended PSU
700W
Power Connector
2 x 8-pin
Accessories
1 x Quick Installation Guide
Dimensions
290 x 123 x 51 mm
Net Weight
918g
Warranty:
2 Year Return to Base Warranty.
|
DESIGN
|
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
ENERGY MANAGEMENT
|
| Minimum system power supply |
700 W |
| Supplementary power connectors |
2x 8-pin |
MEMORY
|
| Graphics card memory type |
GDDR6 |
| Data transfer rate |
20 Gbit/s |
| Memory bus |
256 bit |
| Discrete graphics card memory |
16 GB |
PACKAGING DATA
|
| Package type |
Box |
PERFORMANCE
|
| TV tuner integrated |
No |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| Dual Link DVI |
No |
| HDCP |
Yes |
PORTS & INTERFACES
|
| Interface type |
PCI Express 5.0 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1b |
| DisplayPorts quantity |
3 |
| DisplayPort version |
2.1a |
PROCESSOR
|
| Graphics processor |
Radeon RX 9070 |
| Maximum resolution |
7680 x 4320 pixels |
| Stream processors |
3584 |
| Maximum displays per videocard |
4 |
| CUDA |
No |
| Graphics processor family |
AMD |
| Processor boost clock speed |
2520 MHz |
| Processor boost clock speed (Gaming mode) |
2070 MHz |
WEIGHT & DIMENSIONS
|
| Weight |
918 g |
| Height |
123 mm |
| Depth |
51 mm |
| Length |
290 mm |
