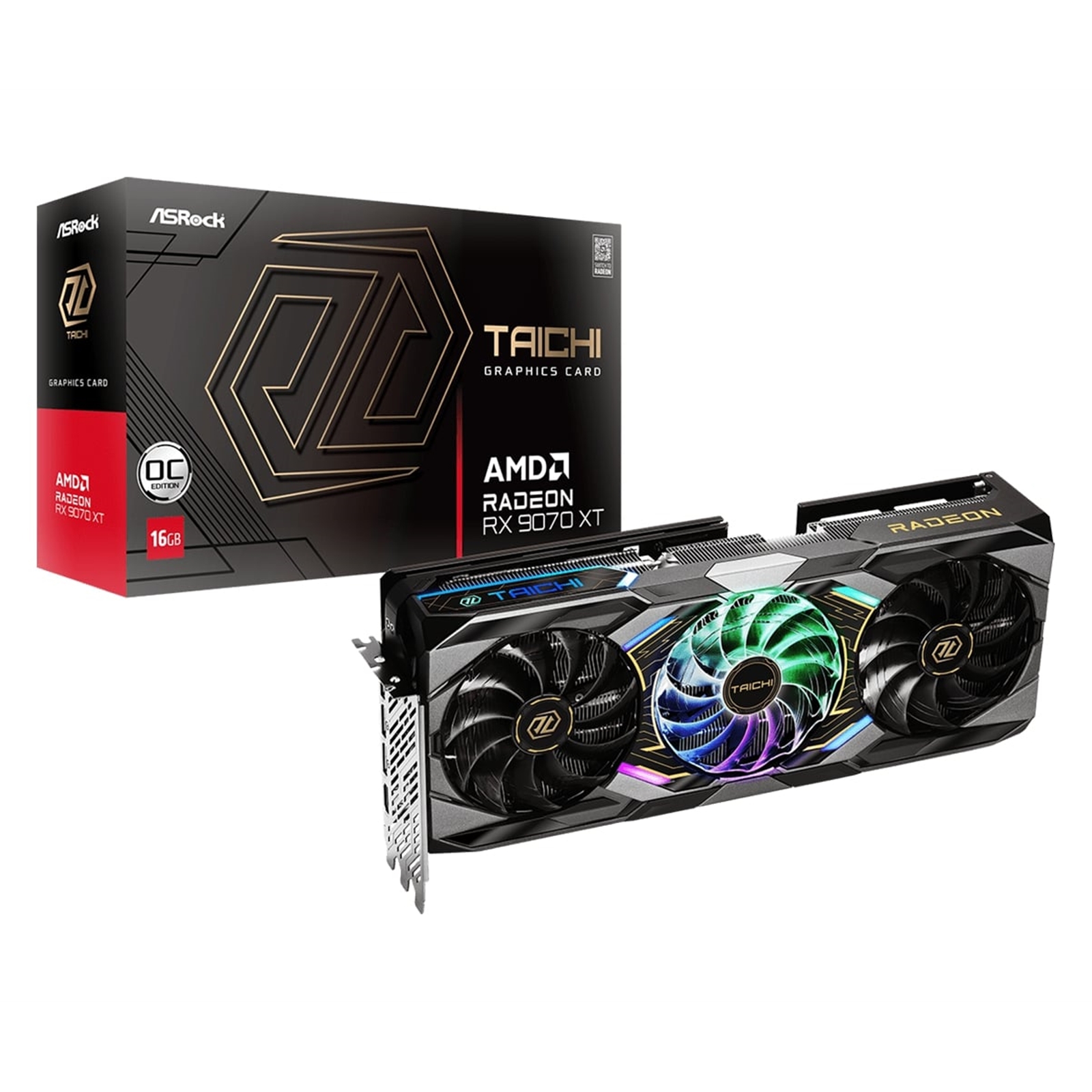

ASRock AMD Radeon RX 9070 XT Taichi 16GB OC

Key Features

Polychrome SYNC
Reverse Spin
Taichi 3X Cooling System
Stylish Metal Backplate
Dual BIOS
16 Power Phase Design with SPS
100/100/100mm Striped Ring Fans

Clock: GPU / Memory

Boost Clock**: Up to 3100 MHz / 20 Gbps
Game Clock*: 2570 MHz / 20 Gbps

Specifications

Graphics Engine
AMD Radeon RX 9070 XT

Bus Standard
PCI Express5.0 x16

DirectX
12 Ultimate

OpenGL
4.6

Memory
16GB GDDR6

Engine Clock
Boost Clock: Up to 3100 MHz
Game Clock: 2570 MHz

Stream Processors
4096

Memory Clock
20 Gbps

Memory Interface
256-bit

Resolution
Digital Max Resolution: 7680 x 4320

Interface
1 x HDMI 2.1b
3 x DisplayPort 2.1a

HDCP
Yes

Multi-view
4

Recommended PSU
850W

Power Connector
1 x 12V-2x6-pin

Accessories
1 x Quick Installation Guide
1 x 16Pin to 3x8 Pin Power Cable
1 x Graphics Card Stand

Dimensions
330 x 140 x 61mm, 3-slot

Net Weight
1554 g

Manufacturer's Website:

www.asrock.com.tw

Warranty:

2 Year Return to Base Warranty.

DESIGN
Number of slots	3
Illumination	Yes
Number of fans	3 fan(s)
Cooling type	Active
ENERGY MANAGEMENT
Minimum system power supply	850 W
MEMORY
Graphics card memory type	GDDR6
Data transfer rate	20 Gbit/s
Memory bus	256 bit
Discrete graphics card memory	16 GB
PACKAGING CONTENT
Cables included	Power
Quick installation guide	Yes
PACKAGING DATA
Cables included	Power
PERFORMANCE
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Shader model version	No
Dual Link DVI	No
HDCP	Yes
PORTS & INTERFACES
Interface type	PCI Express x16 5.0
DVI-I ports quantity	0
DVI-D ports quantity	0
HDMI ports quantity	1
HDMI version	2.1b
DisplayPorts quantity	3
DisplayPort version	2.1a
PROCESSOR
Graphics processor	Radeon RX 9070 XT
Maximum resolution	7680 x 4320 pixels
Stream processors	4096
Maximum displays per videocard	4
CUDA	No
Graphics processor family	AMD
Processor boost clock speed	3100 MHz
Processor boost clock speed (Gaming mode)	2750 MHz
WEIGHT & DIMENSIONS
Weight	1.55 kg
Height	61 mm
Depth	140 mm
Length	330 mm
