Target Components

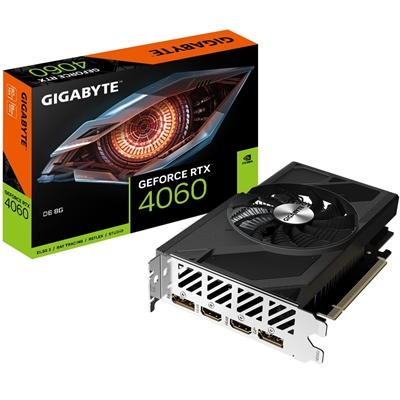

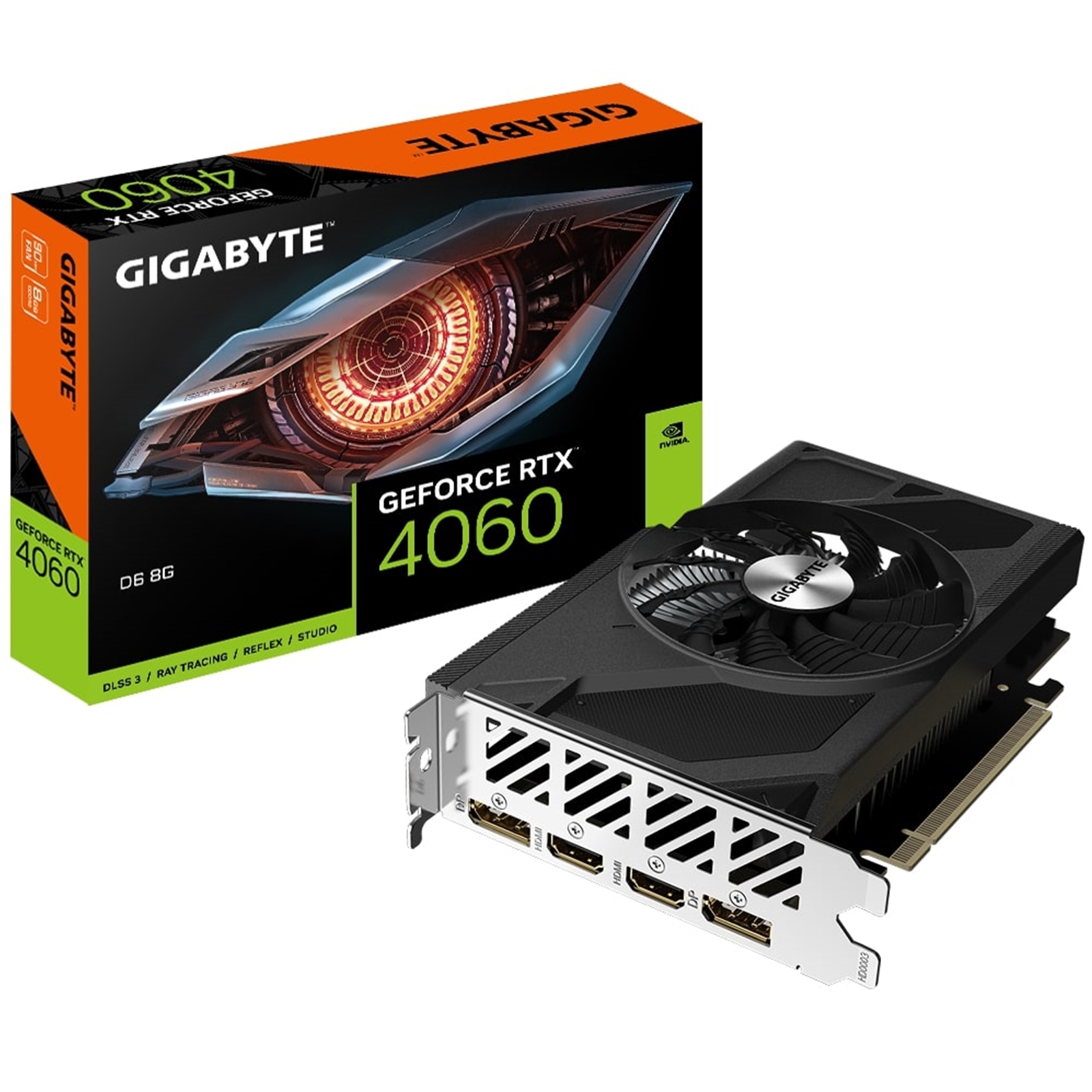

Gigabyte NVIDIA GeForce RTX 4060 D6 8G Graphics Card, 8GB GDDR6, 3072 CUDA Cores, 2460 MHz Core Clock, Single Fan, 2x DisplayPorts / 2x HDMI Ports

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX4060
Form Factor2x ATX
Memory8GB
Fans1
RGBNo
/productImages/80/GRGIG-N4060D6.JPG
/productImages/80/204451.JPG
/productImages/80/204452.JPG
/productImages/80/204453.JPG
/productImages/80/204454.JPG
/productImages/80/204455.JPG
/productImages/80/204456.JPG
Manufacturer : GIGABYTE
EAN : 4719331314729
Manufacturer Part Code : GV-N4060D6-8GD
Weight : 0.6 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX4060
Form Factor2x ATX
Memory8GB
Fans1
RGBNo
Manufacturer :
GIGABYTE

EAN :
4719331314729

Manufacturer Part Code :
GV-N4060D6-8GD

Weight :
0.6 kg
Recommended Products
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

GeForce RTX 4060 D6 8G

Key Features
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4060
Integrated with 8GB GDDR6 128bit memory interface
90mm unique blade fan
170 mm compact card size

CORE CLOCK
2460 MHz

The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
New Streaming Multiprocessors
Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores
Up to 2x ray tracing performance

GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 90mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.

COMPACT SIZE FOR EASY INSTALLATION
With a length of 170mm, the graphics card can be easily installed in most small cases.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications

Graphics Processing
GeForce RTX 4060

Core Clock
2460 MHz

CUDA Cores
3072

Memory Clock
17 Gbps

Memory Size
8 GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680x4320

Multi-View
4

Card Size
L=170 W=120 H=40 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin x 1

Output
DisplayPort 1.4a x 2
HDMI 2.1a x 2

Accessories
Quick guide
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

DESIGN
Product colour Black
Number of fans 1 fan(s)
Cooling type Active
Fan diameter 9 cm
ENERGY MANAGEMENT
Minimum system power supply 450 W
Supplementary power connectors 1x 8-pin
MEMORY
Graphics card memory type GDDR6
Data transfer rate 17 Gbit/s
Memory bus 128 bit
Discrete graphics card memory 8 GB
PACKAGING CONTENT
User guide Yes
PACKAGING DATA
Package type Box
User guide Yes
PERFORMANCE
TV tuner integrated No
DirectX version 12 Ultimate
OpenGL version 4.6
Dual Link DVI No
NVIDIA G-SYNC Yes
PORTS & INTERFACES
Interface type PCI Express 4.0
HDMI ports quantity 2
HDMI version 2.1a
DisplayPorts quantity 2
DisplayPort version 1.4a
PROCESSOR
Processor frequency 2460 MHz
Graphics processor GeForce RTX 4060
Maximum resolution 7680 x 4320 pixels
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA Yes
CUDA cores 3072
Graphics processor family NVIDIA
SYSTEM REQUIREMENTS
Windows operating systems supported Windows 10 x64, Windows 11 x64
WEIGHT & DIMENSIONS
Height 120 mm
Depth 40 mm
Length 170 mm
