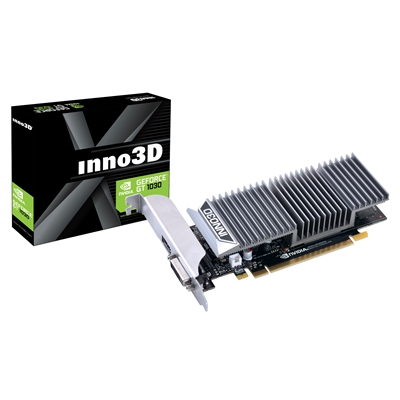

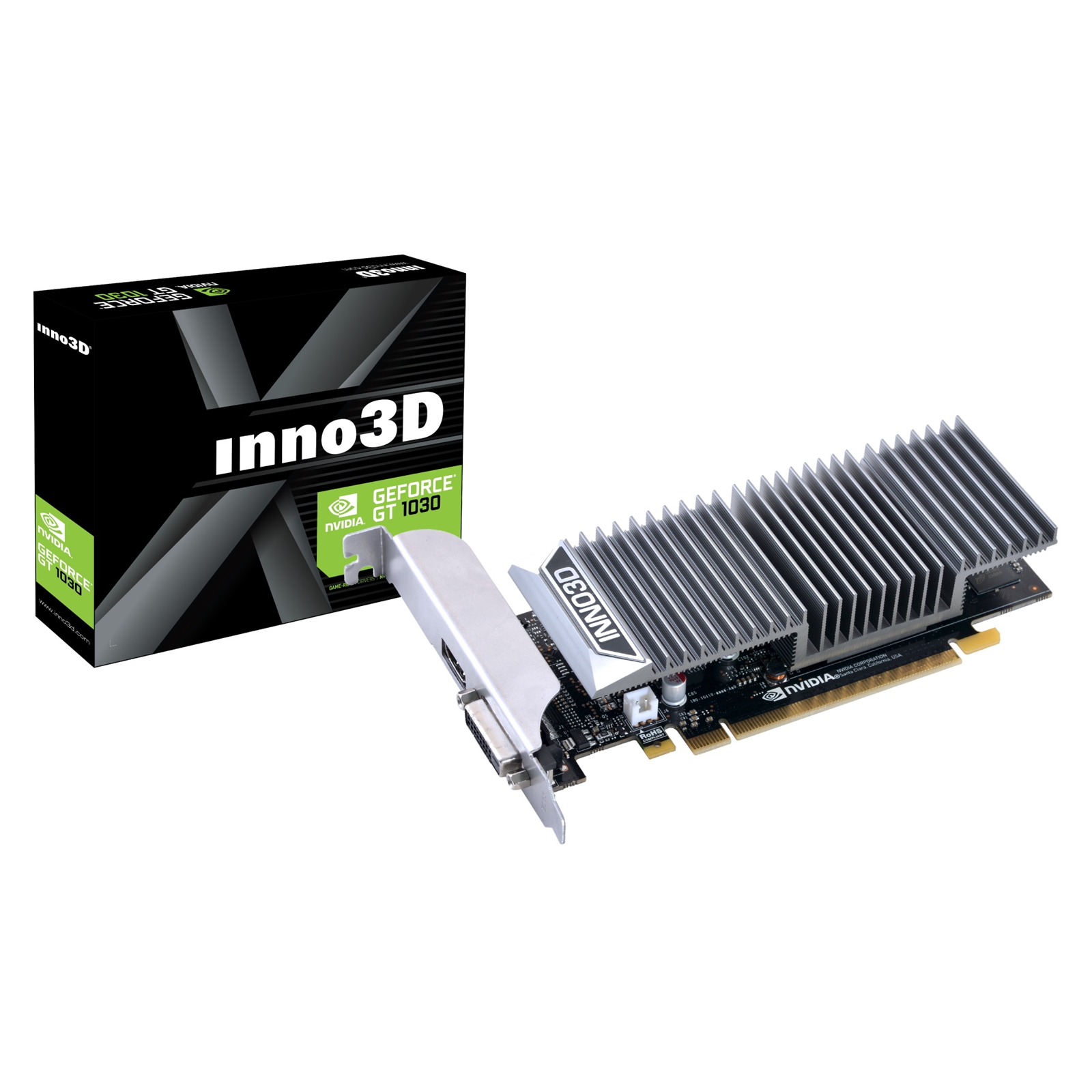

Inno3D Nvidia GeForce GT 1030 2GB GDDR5 Low Profile DVI/HDMI Fanless Graphics Card

GRINN-N10301SDVE
Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesGeForce GT
ChipsetGT1030
Form Factor1x ATX (Low Profile Option)
Memory2GB
FansPassive
RGBNo
/productImages/80/GRINN-N10301SDVE.JPG
/productImages/80/164025.JPG
/productImages/80/164026.JPG
/productImages/80/164027.JPG
/productImages/80/164028.JPG
/productImages/80/164029.JPG
/productImages/80/164030.JPG
/productImages/80/164031.JPG
/productImages/80/164032.JPG
Manufacturer : INNO3D
EAN : 835168022782
Manufacturer Part Code : N1030-1SDV-E5BL
Weight : 0.36 kg
Login For Pricing

Key Specifications
Chipset ManufacturerNvidia
Chipset SeriesGeForce GT
ChipsetGT1030
Form Factor1x ATX (Low Profile Option)
Memory2GB
FansPassive
RGBNo
Manufacturer :
INNO3D

EAN :
835168022782

Manufacturer Part Code :
N1030-1SDV-E5BL

Weight :
0.36 kg
Recommended Products
GRSPA-LPBKT-2Graphics Cards
See details
1289Motherboards
See details
1282Case Cooling
See details
1284Power Supplies
See details

Add Compatible Low Profile Bracket

PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.

THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.

WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE - PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.

GPU Engine Specs
CUDA Cores
384
Boost Clock (MHz)
1468
Base Clock (MHz)
1227

Thermal and Power Spec
Minimum System Power Requirement (W)
300

Memory Specs
Memory Clock
6Gbps
Standard Memory Config
2GB
Memory Interface
GDDR5
Memory Interface Width
64-bit
Memory Bandwidth (GB/sec)
48

Feature Support
NVIDIA Architecture
Pascal
Microsoft DirectX
12 API with feature level 12_1
NVIDIA Ansel
Yes
Bus Support
PCI-E 3.0
OS Certification
Windows 7-10, Linux, FreeBSDx86
NVIDIA G-SYNC Ready
Yes
NVIDIA GPU Boost
Yes
Vulkan API
Yes
OpenGL
4.5
NVIDIA Decoder
Pascal

Graphics Card Dimensions
Length
167mm
Height
55mm
Width
2-slot

Display Support
Multi Monitor
Yes
Maximum Digital Resolution
4096 x 2160
HDCP
2.2
Standard Display Connectors
DVI-D, HDMI 2.0b
Manufacturer's Website:
www.inno3d.com/
Warranty:
3 Year Return To Base Warranty



Add Compatible Low Profile Bracket
DESIGN
Number of slots 2
Cooling type Passive
ENERGY MANAGEMENT
Minimum system power supply 300 W
LOGISTICS DATA
Harmonized System (HS) code 84733020
MEMORY
Graphics card memory type GDDR5
Memory bus 64 bit
Memory bandwidth (max) 48 GB/s
Discrete graphics card memory 2 GB
PACKAGING CONTENT
Drivers included Yes
PACKAGING DATA
Drivers included Yes
PERFORMANCE
Full HD Yes
DirectX version 12.0
OpenGL version 4.5
HDCP Yes
NVIDIA G-SYNC Yes
NVIDIA GameStream Yes
NVIDIA Ansel Yes
PORTS & INTERFACES
Interface type PCI Express 3.0
DVI-D ports quantity 1
HDMI ports quantity 1
HDMI version 2.0b
PROCESSOR
Processor frequency 1227 MHz
Graphics processor GeForce GT 1030
Maximum resolution 4096 x 2160 pixels
Maximum digital resolution 4096 x 2160 pixels
CUDA Yes
CUDA cores 384
Graphics processor family NVIDIA
Processor boost clock speed 1468 MHz
SUSTAINABILITY
Sustainability certificates RoHS
SYSTEM REQUIREMENTS
Windows operating systems supported Yes
TECHNICAL DETAILS
Harmonized System (HS) code 84733020
Sustainability certificates RoHS
WEIGHT & DIMENSIONS
Height 55 mm
Depth 167 mm
